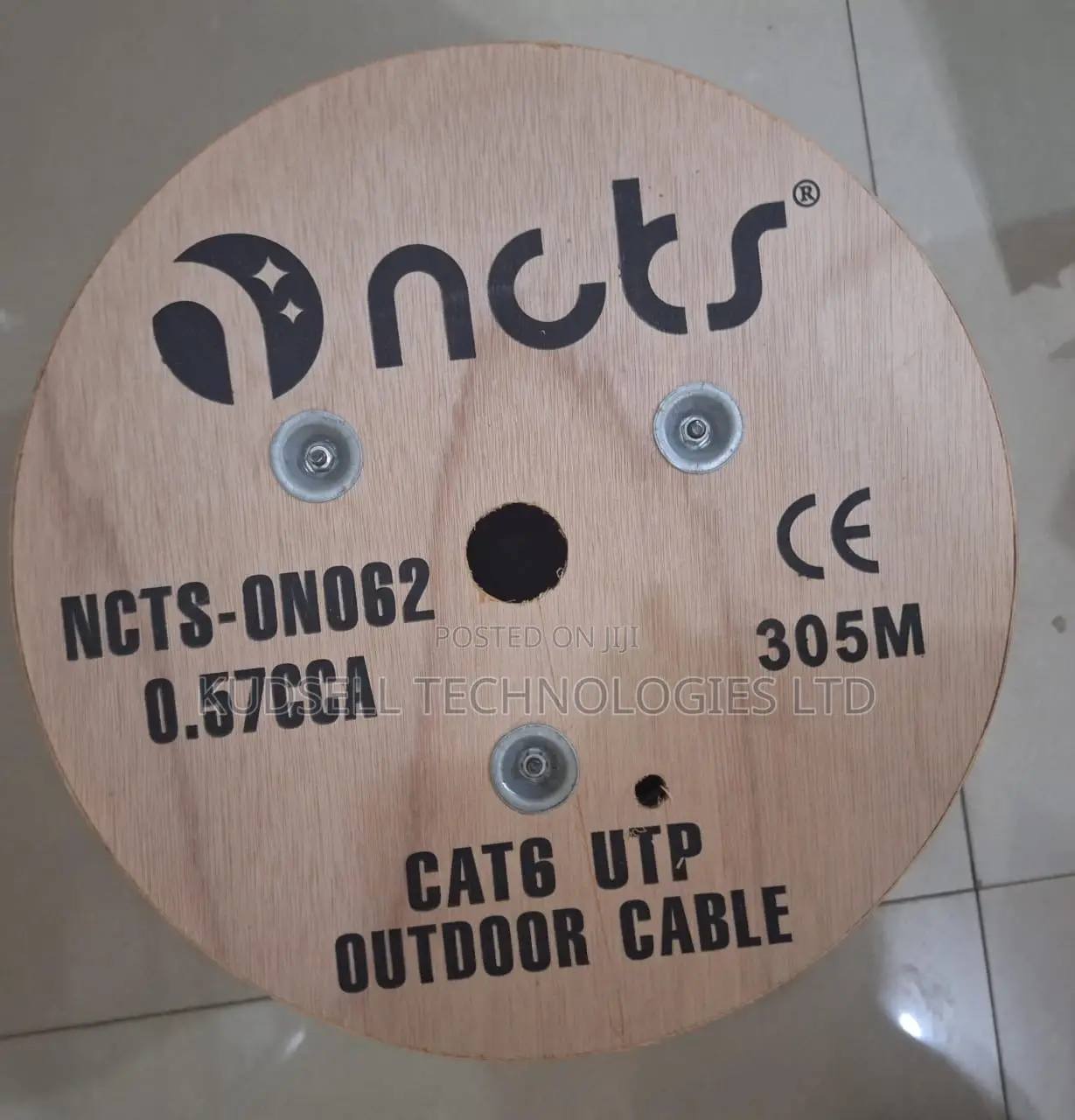

NCTS High Speed Cat6 Utp Outdoor Cable
Network Cables
Type
ncts
Brand
ncts utp outdoor
Model
305m
Cable Length
Brand New
Condition
Store address
Greater Accra • Avenor Area
Abeka post office
Closed
• Mon - Sat, 09:00-18:00
Brand: oem brand color: black
conductor material: cca conductor size: 23awg (0.57mmcca)
conductor structure solid twisted pair: 4pairs
outer jacket material hdpe insulation material: pe
inner jacket material pvc iinner diameter: 5.0mm(±0.02mm)
insulation thickness 0.18mm insulation diameter: 0.98mm(±0.02mm)
jacket thickness 0.65mm(±0.02mm) outer diameter: 6.5mm(±0.2mm)
stretching resistance: (max)450n impedance: 100±15%ω at 1~250mhz
iminimum bending radius: >4d dc resistance imbalance 2.50%
delay deviation: (max)45ns/100m insulation resistance: ≥5000mω.km
transmission velocity 66% operating temperature -40 °c - +70 °c
application: mainly used in outside wiring system
advantage:
1.pe cross stucture is better for anti-crosstalk;
2.hdpe+pvc jacket is mainly used to adapt to the changing environment outdoors. it plays a role of wat
