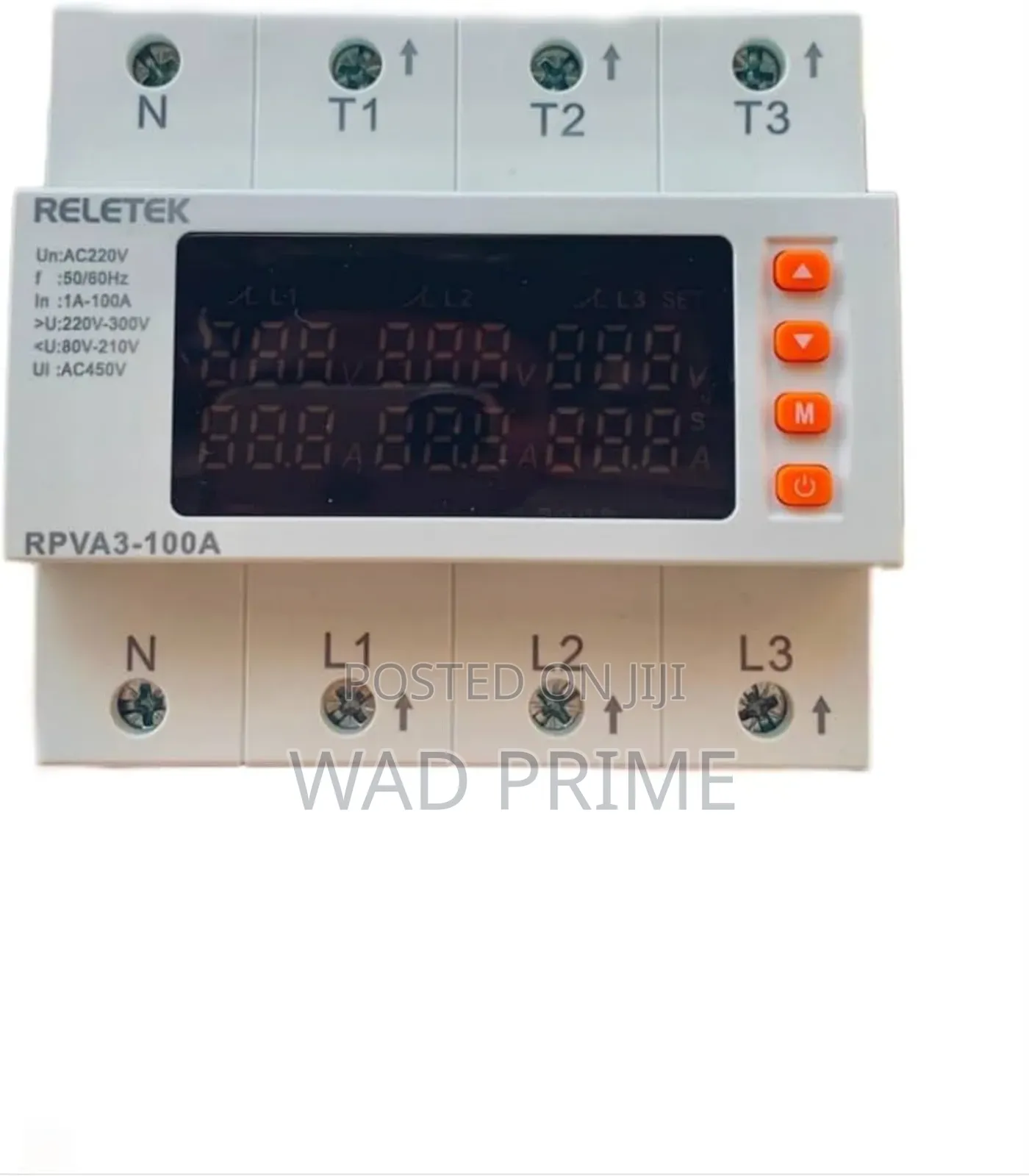

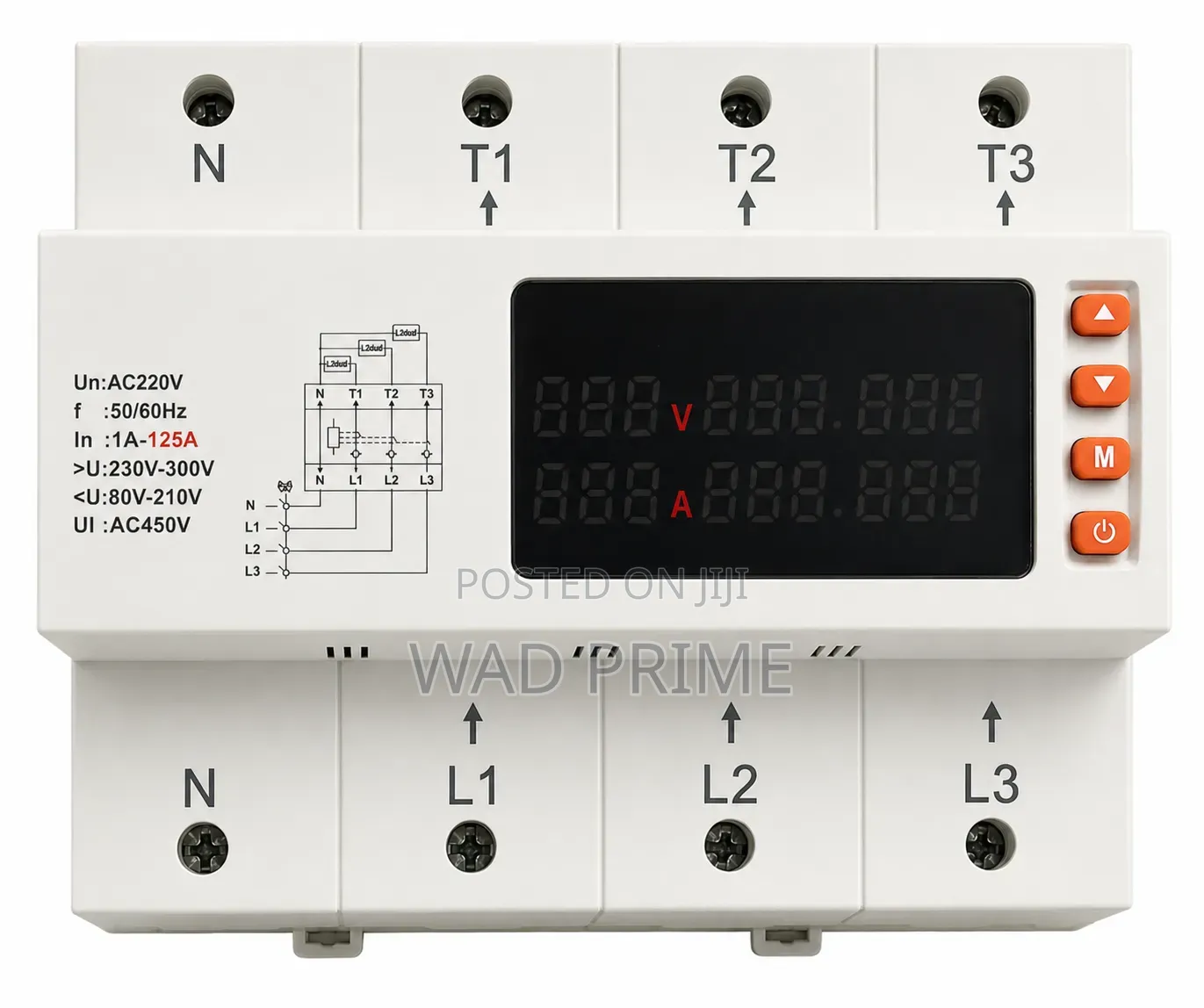

Automatic Voltage and Current Protector 125a
Other
Brand
Circuit Breakers & Disconnectors
Type
4
Number of Poles
125amps
Breaker Amperage
Brand New
Condition
3-phase voltage & current protection device
Microcontroller-based, digital display
DIN rail mounting (8 modules)
Rated voltage: AC 220V
Operating range: 3P+N 65V – 450V
Frequency: 50 / 60 Hz
Insulation voltage: AC 450V
Adjustable current: 1A – 125A
Max permissible current: 150A
Over-voltage
Under-voltage
Overcurrent
Short-circuit
Phase loss & phase sequence
3-phase asymmetry
Over-temperature (overheat)
Synchronous mode
Asynchronous mode
Adjustable delays (voltage, current, short-circuit)
Auto-reclose: ON / OFF
Continuous overcurrent trips: OFF or 1–20
Phase sequence protection: ON / OFF
Factory reset available
Manual ON / OFF
Min voltage trip time: 0.02s
Short-circuit trip: 0.04s
Power-on delay: 1 – 300s
Reclose delay: 1 – 600s
Terminal size: 4 – 50 mm2
Torque: 3.5 Nm
Protection class: IP20
Operating temp: –20°C to +55°C
