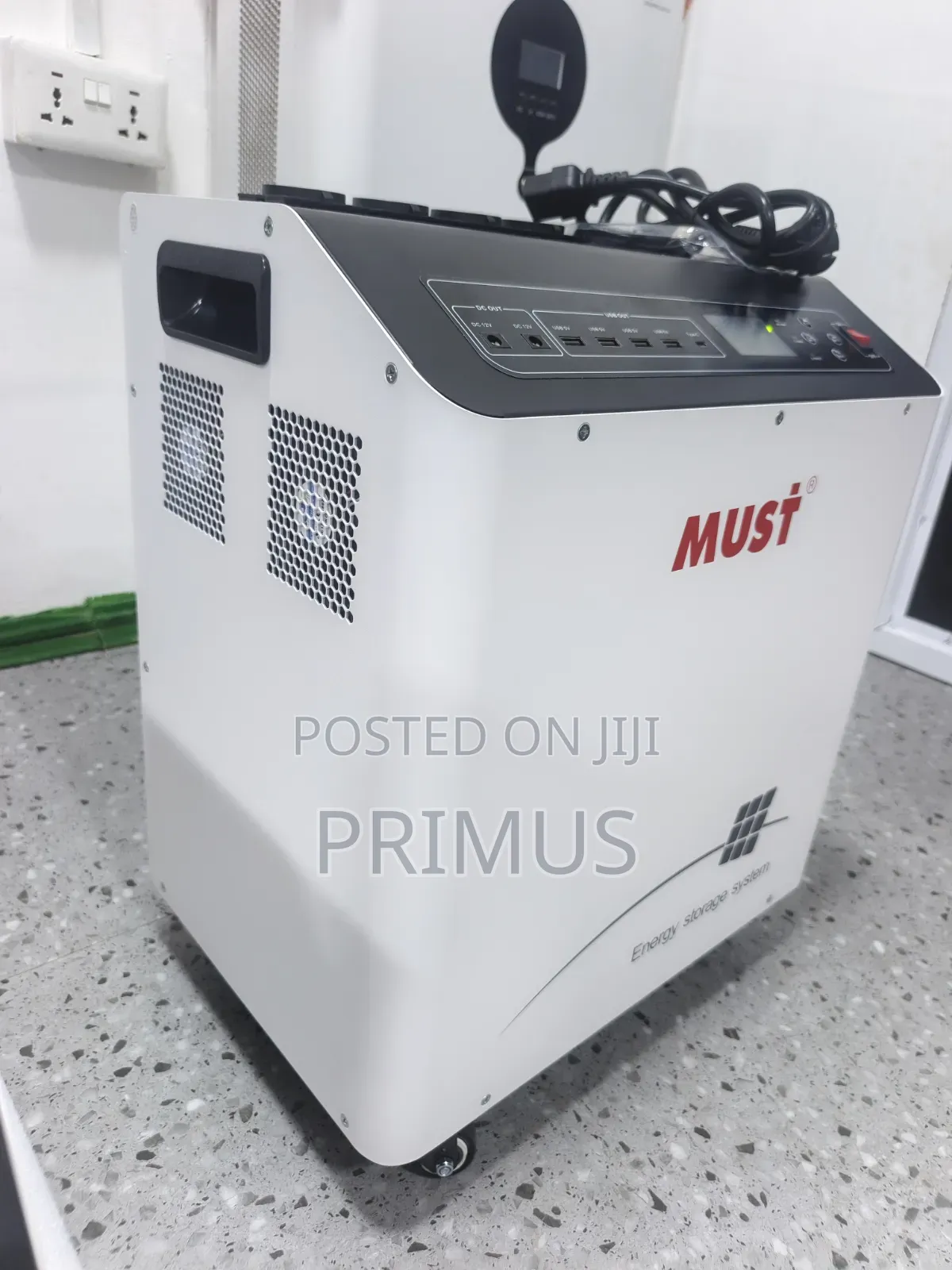

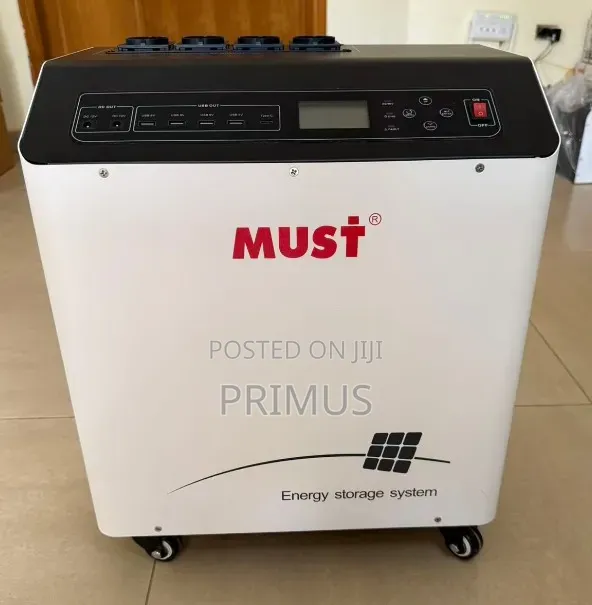

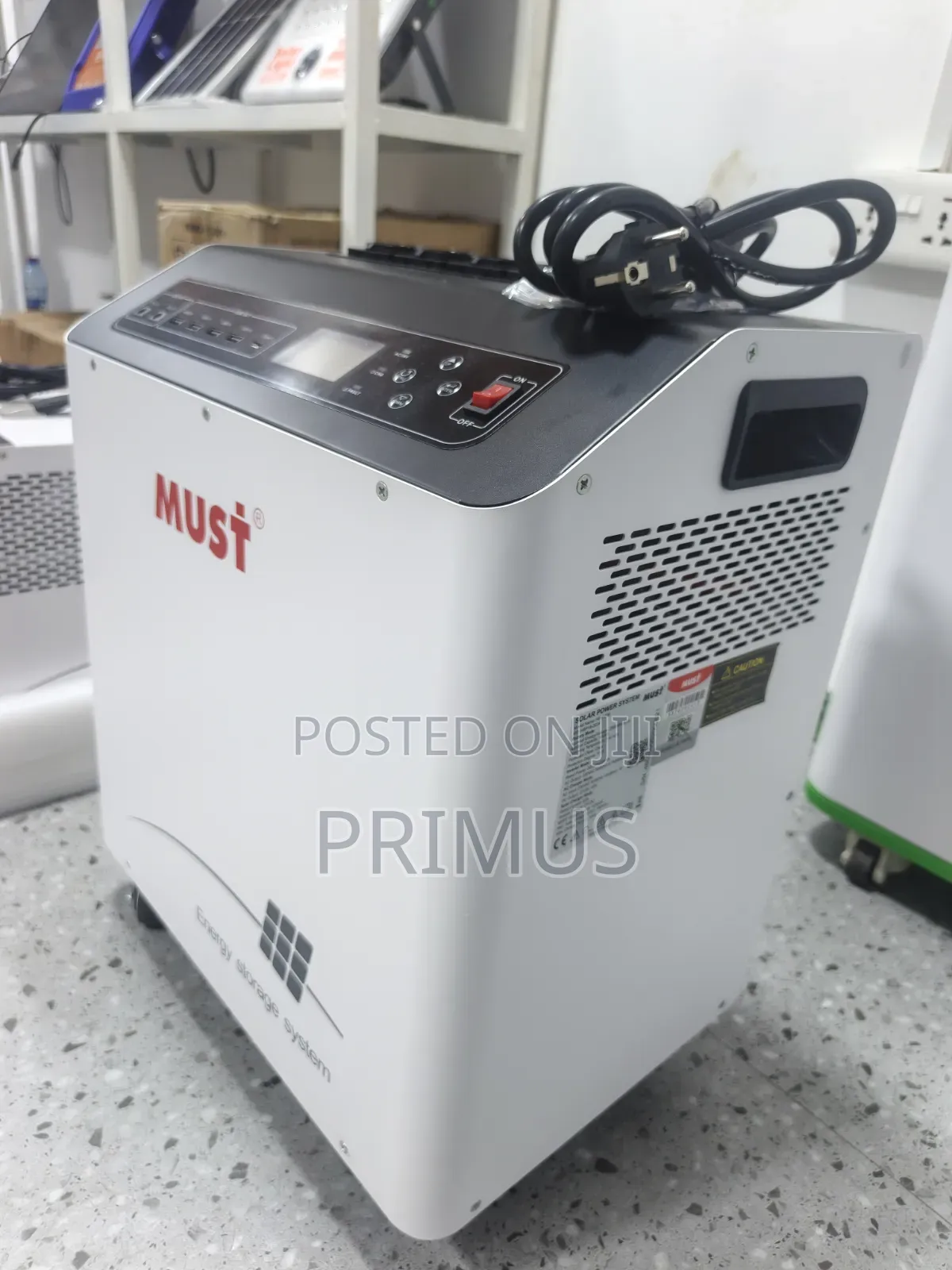

Must solar power system — hbp1800
description specification
model name hbp1800
md hbp18-2024
battery energy 2,560wh(2.56kwh)
battery voltage 25.6 v
battery capacity 100 ah
operating temperature 0–50°c
protection class class i
protection degree ip20
inverter rated power 2kva/2,000w
ac output 230 vac, 50/60 hz, 8.7 a maximum, single-phase
ac charger input 230 vac, 50/60 hz, 13 a maximum, single-phase
charger dc output: 27 vdc, 40 a
solar charger rated current: 60 a
solar charger system voltage: 24 vdc
mppt voltage range: 128 vdc
maximum solar voltage (voc): 160 vdc
maximum charge current: 100 a
country of manufacture
china
