Vert Type A Rcd 40amp 1p+N 30ma Solar And Ev Charger Installation
Vert Electrical
Brand
Circuit Breakers & Disconnectors
Type
2
Number of Poles
40amps
Breaker Amperage
10kA
Capacity of Breaker
Brand New
Condition

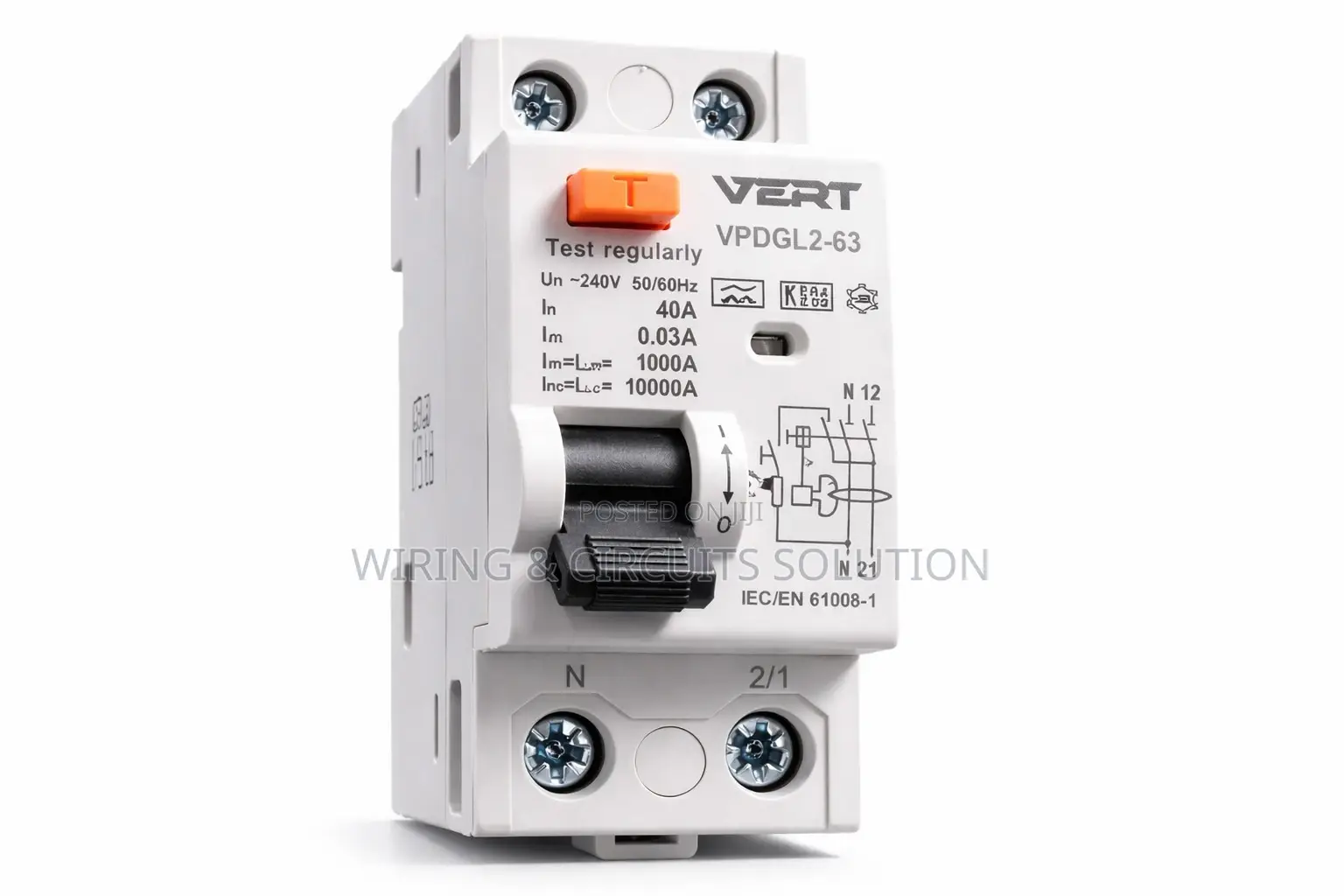

Vert vpdgl2-63type a rcd 40a 1p+n 30ma
a residual current device designed to detect earth leakage faults and disconnect the circuit to help prevent electric shock and fire hazards.
type a rcds detect both ac residual currents and pulsating dc leakage currents, making them suitable for modern electrical installations.
suitable for ev chargers and solar pv systems

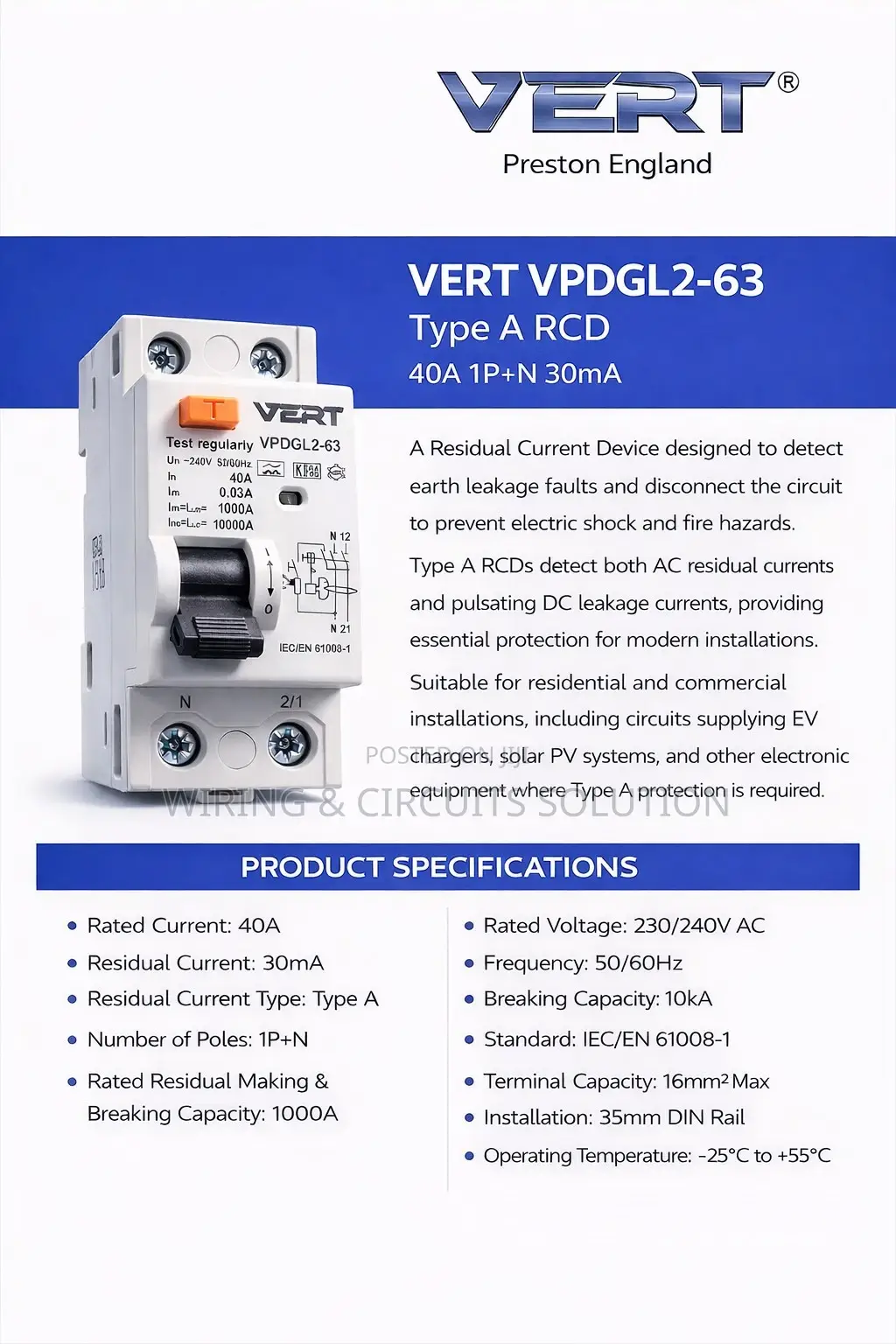

product specifications
• model: vpdgl2-63
• rated current (in): 40a
• residual operating current (iδn): 30ma
• residual current type: type a
• number of poles: 1p+n
• rated voltage (un): 230/240v ac
• frequency: 50/60hz
• rated residual making and breaking capacity (iδm): 1000a
• breaking capacity (inc): 10ka
• standard: iec/en 61008-1
• terminal capacity: max. 16mm2
• mounting: 35mm din rail
• operating temperature: -25°c to +55°c
