Product Description

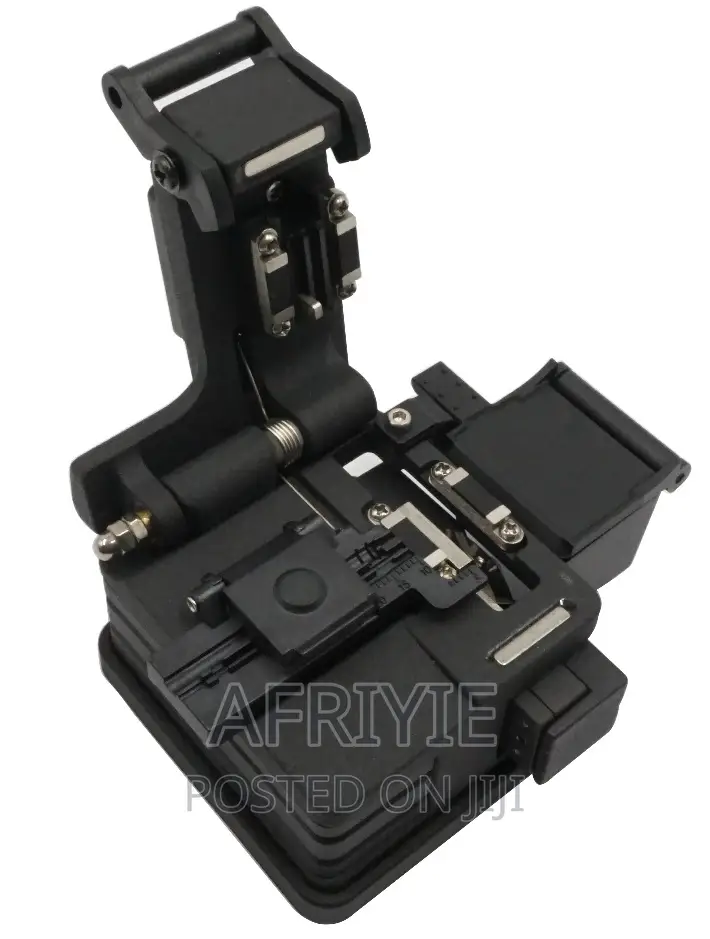

FOC-198 high precision optical fiber cleaver is used for precision cutting single core fiber.
It not only apply to 250μm coated fiber, also apply to 900μm coated fiber, cutting angle is smaller and more precise, do not
special skills.
Product model
Fiber cleaver
Optical fiber cladding diameter
125um
Fiber coating diameter
0.25-0.9mm
Coated outer diameter
Single core
The length required to be removed before optical fiber cutting
Fiber cutting length ≥18mm
Fiber cutting length
5-20mm
Fiber cutting angle
≤0.8°
Blade life
48000 (1000 times x16 position x 3 high)
Size
63*65*60mm
Weight
180g
The jip
Four in one multifunction jip
