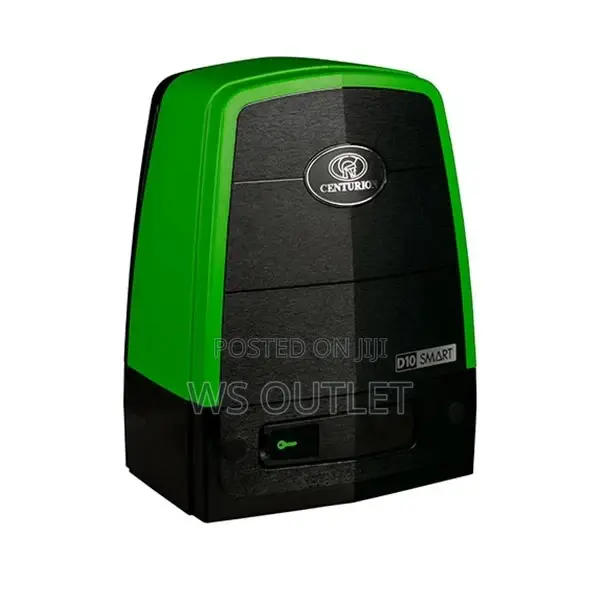

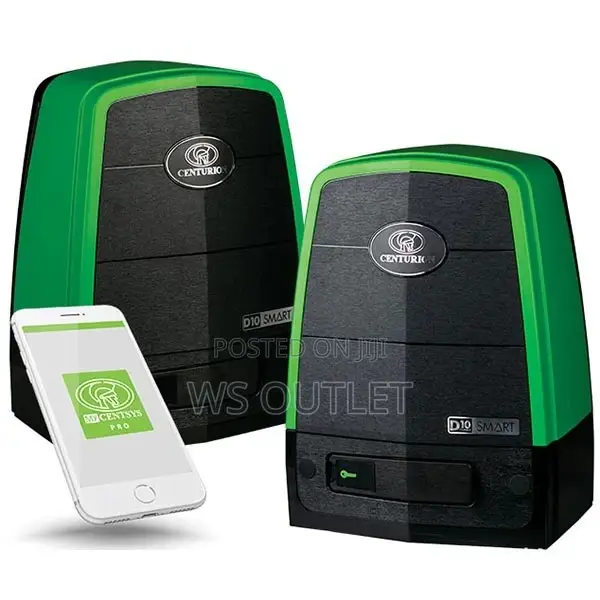

D10 SMART Industrial and Commercial Sliding Gate Motor
Brand New
Condition
Other
Type
Green
Color
Plastic
Material
Store address
Greater Accra • Accra Metropolitan
Dr. Busia Highway (Odorkor - Mallam Highway), Adjacent Sakaman Branch of Zenith Bank. GA-591-2188 Fetu Street Link
Closed now
• Mon - Fri, 08:00-17:00
The D10 SMART commercial and heavy industrial sliding gate motor – suitable for gates weighing up to 1000kg. Up to 750 daily operations. 24V battery backup.
Specification
1.Input voltage: 90V - 240V AC +/-10% @ 50Hz *1
2. Current consumption (Mains): 250mA
3. Battery charger current output; 1.8A @ 27.4V +/-1%
4. Maximum number of operations per day: 750 *(3,6)
5. Duty cycle - Mains present 2,3 :45%
6. Motor voltage:24V DC
7. Motor push force - starting : 40Kgf
8. Motor push force - rated: 30Kgf
9. Gate mass - maximum: 1000Kg
10. Gate length - maximum :50m
11. Gate speed (varies with load)4 :Up to 26m/min4
12. Manual Override : Lockable with key release
13. Receiver code storage capacity: 1500 Remotes7
14. Receiver frequency :433.92MHz
16. Degree of protection :IP54
