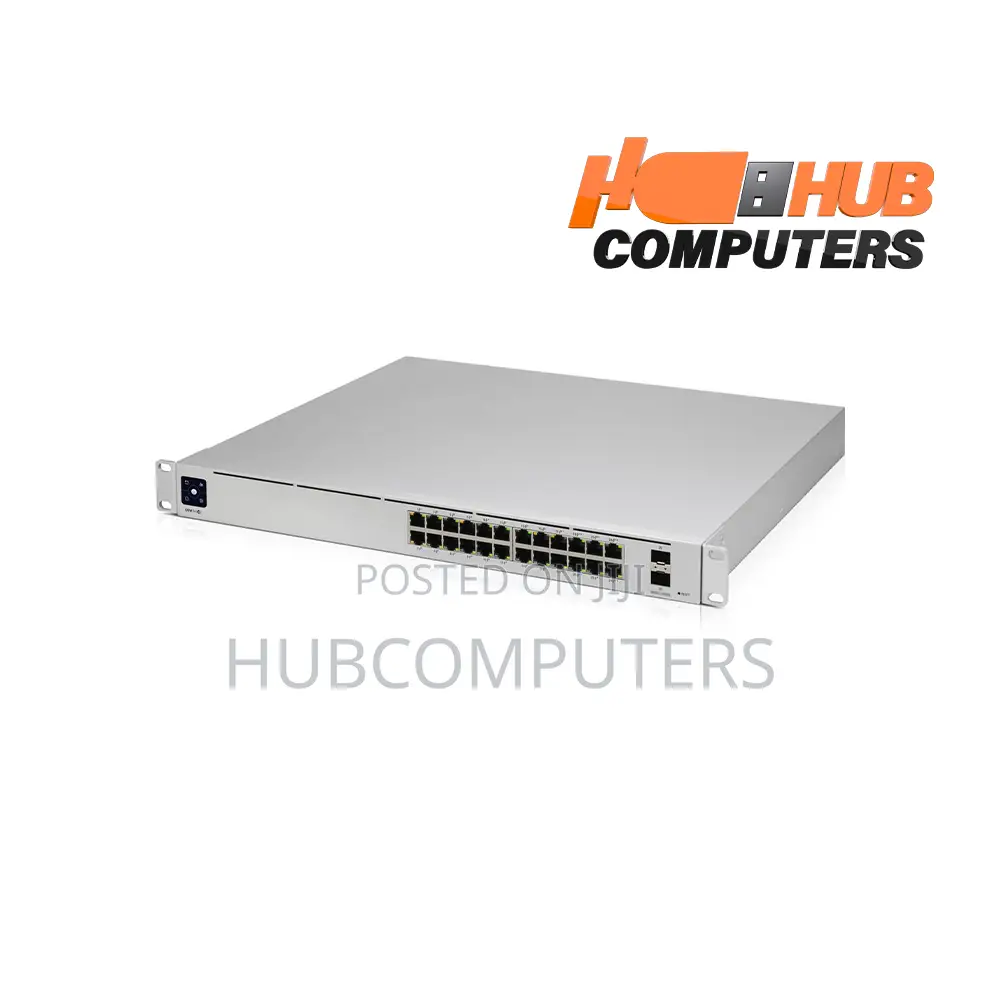

Ports
(16) 10/100/1000 rj45 poe+ ports (802.3at)
(8) 10/100/1000 rj45 poe++ ports (802.3bt)
(2) 10g sfp+ uplink ports
poe power:
total poe budget: 400w
max poe output: up to 60w per port (poe++)
performance:
switching capacity: 88 gbps
forwarding rate: 65.472 mpps
non-blocking throughput: 44 gbps
layer support: layer 2 & layer 3
management: unifi network controller & in-band ethernet, with a 1.3" touchscreen lcm display
cooling: near-silent, fan-based cooling system
power input: 100-240v ac, with usp-rps dc input support for redundancy
mounting: 1u rack-mountable
dimensions: 442.4 x 285.4 x 43.7 mm (17.42 x 11.24 x 1.72")
environment: operating temp: -5° to 40° c (23° to 104° f)
