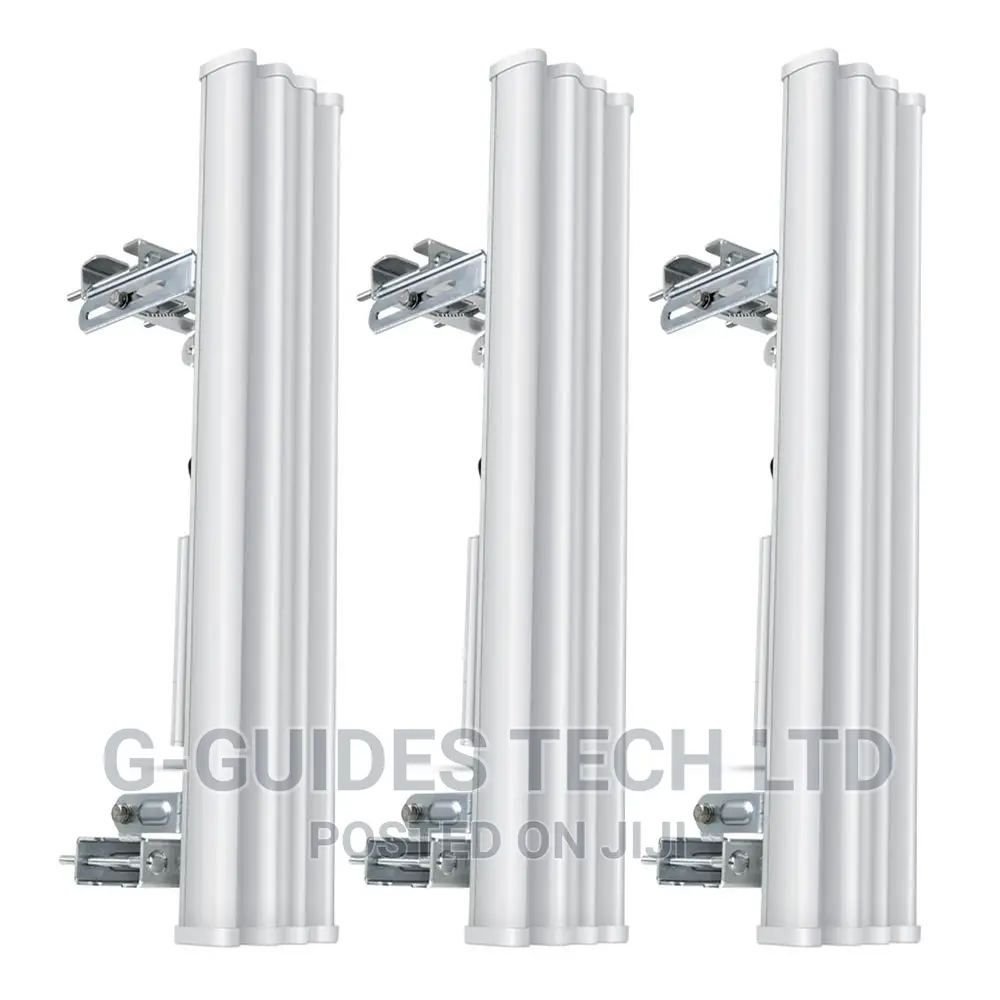

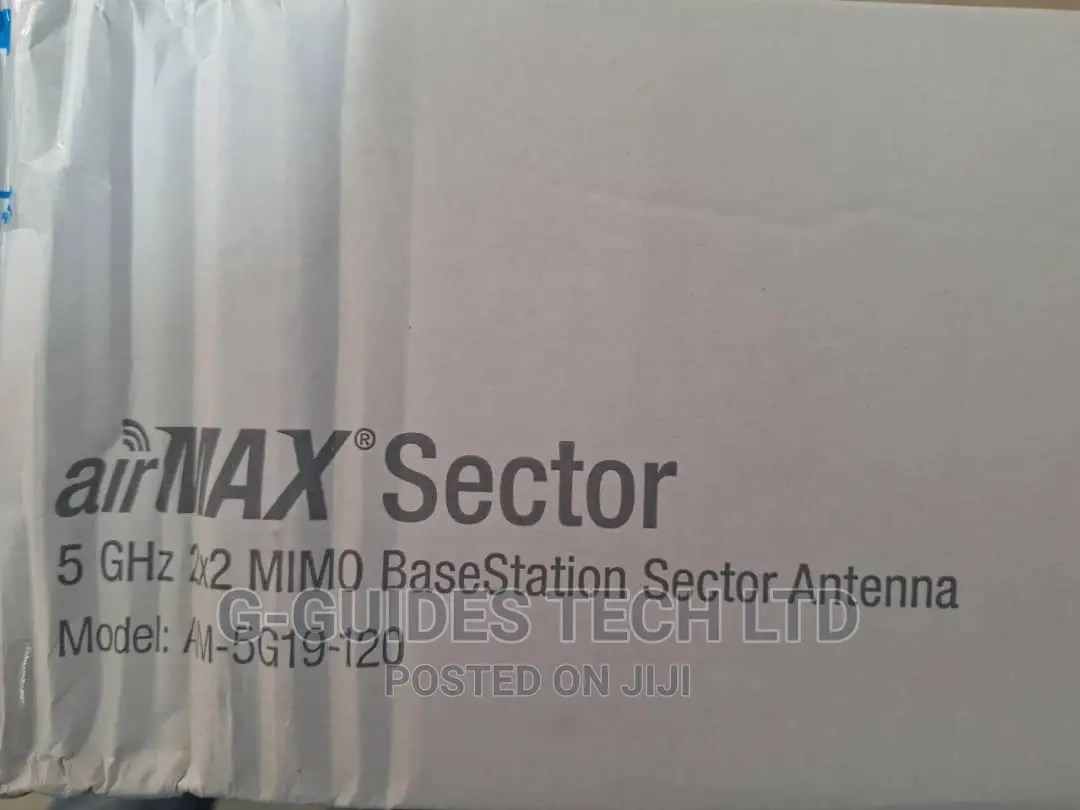

Ubiquiti am-5g19-120 uisp airmax 2x2 basestation 5 ghz, 19 dbi, 120o sector antenna with basestation for sector coverage in point-to-multipoint (ptmp) networks
the airmax sector antenna is a carrier-class 2x2 dual-polarity mimo sector antenna that was designed to seamlessly integrate with rocket radios (rocket sold separately). on the right is one example of how the airmax sector antenna can be deployed in a point-to-multipoint (ptmp) network.
key features
- high performance, long range
- seamlessly integrates with rocket radio
- excellent cross-polarization isolation
- designed with robust mechanical for outdoor application use
- plug and play integration
specifications
- frequency range: 5.15 - 5.85 ghz
- gain: 18.6 - 19.1 dbi
- hpol beamwidth: 123° (6 db)
- vpol beamwidth: 123° (6 db)
- electrical beamwidth: 4°
etc
