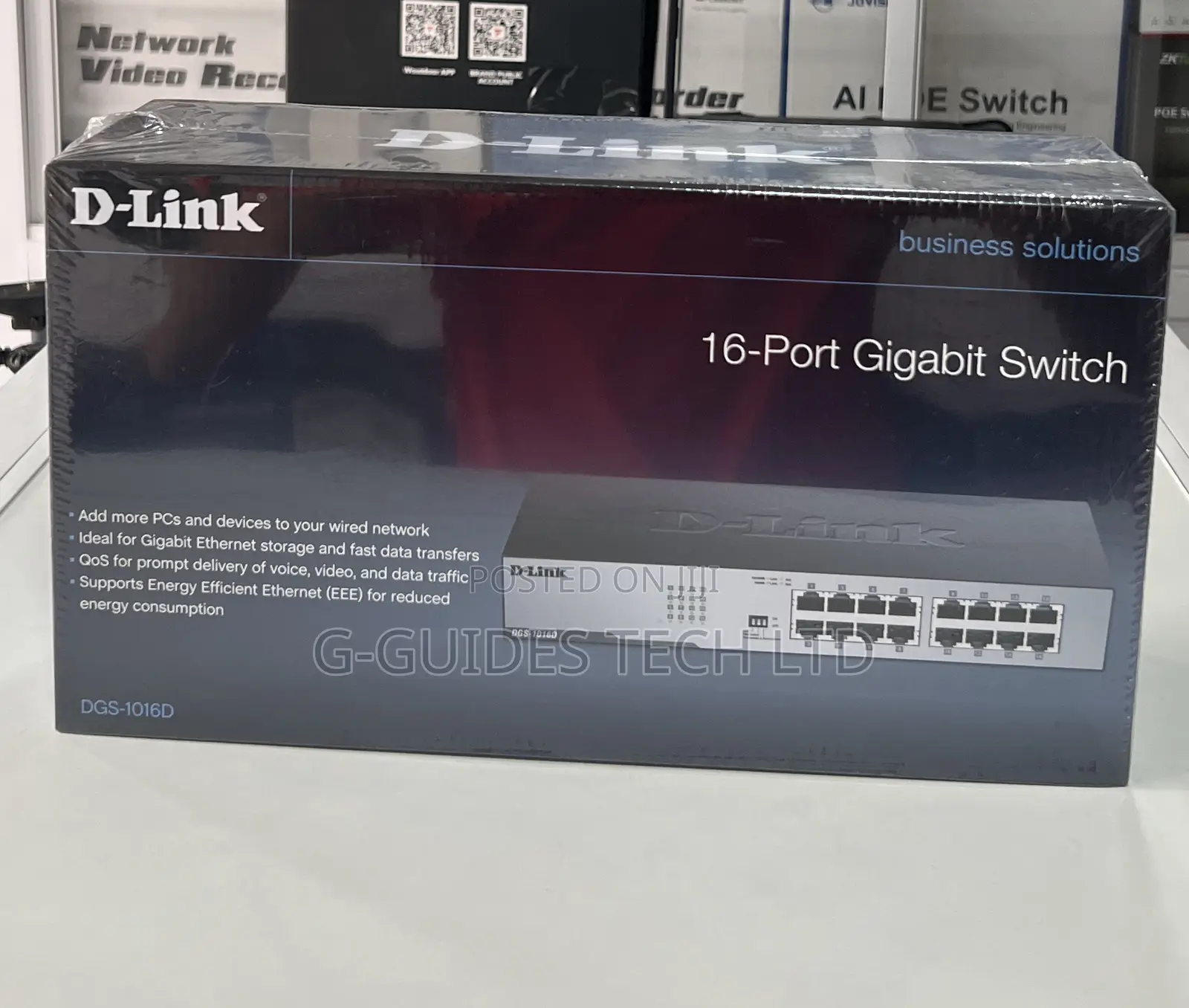

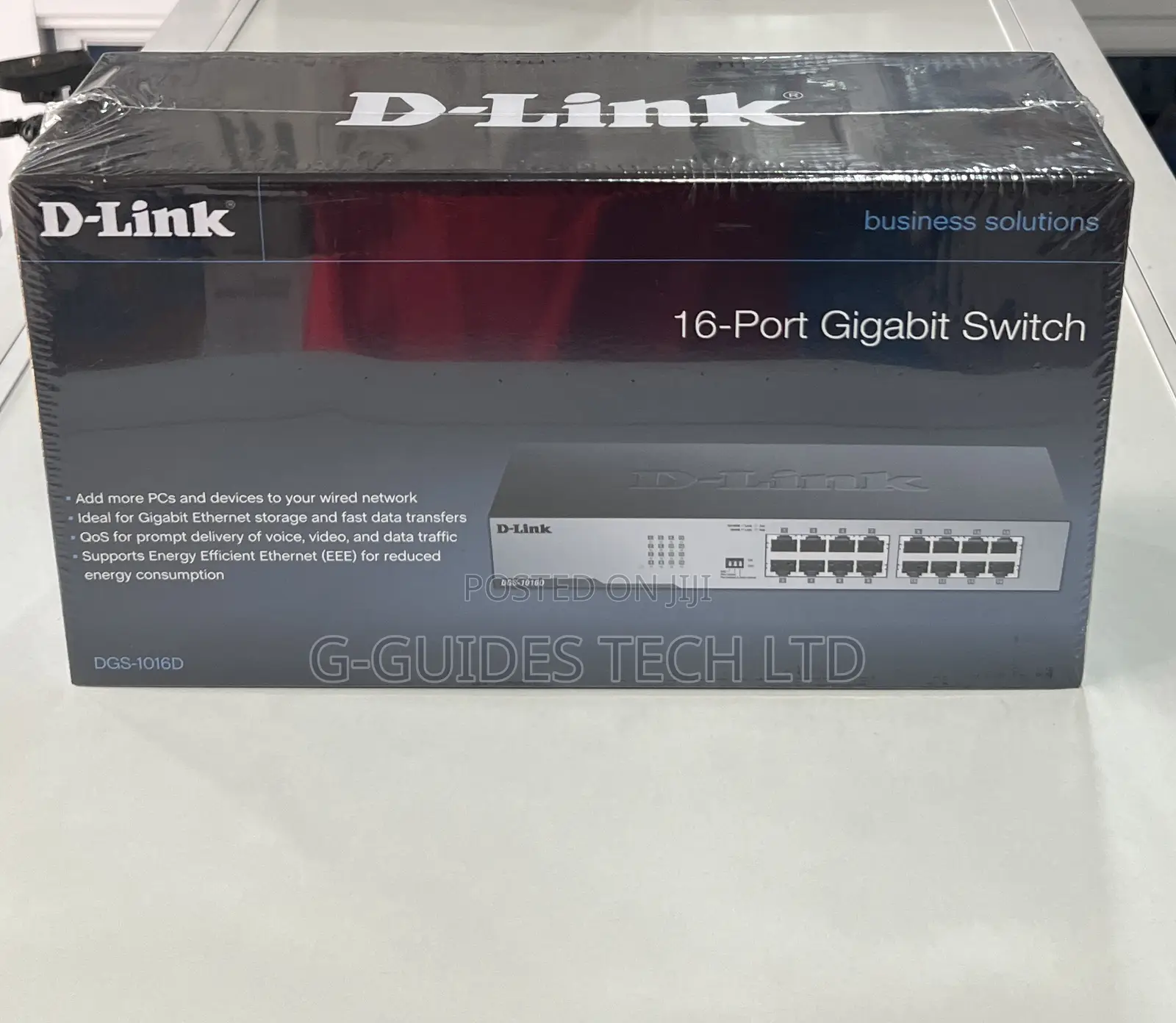

16-port gigabit unmanaged desktop switch
dgs-1016d
cable diagnostics troubleshooting
3-pin front panel dip switch for real-time toggling energy-efficient ethernet (eee), flow control, port isolation, and storm control
compact and durable housing, high port count, and fanless design for noise-free operation
ndaa compliant
comply with rohs 6 yes
control 802.3x flow
dimensions 280 x 125 x 44 mm
discharge air discharge 8kv
contact discharge 4kv
energy efficiency ethernet (eee) yes
fan fanless
head-of-line (hol) blocking prevention yes
humidity operating: 0% - 95% rh
storage: 0% - 95% rh
interfaces 16 x 1000base-t
auto mdi/mdix
jumbo frame 10,000 bytes
mac address table size 8192
maximum forwarding rate 23.81mpps
maximum heat dissipation 34.3 btu/h
maximum power consumption 10.07w
mtbf 1,882,372 hours
packet buffer size 512kbyte
etc...
