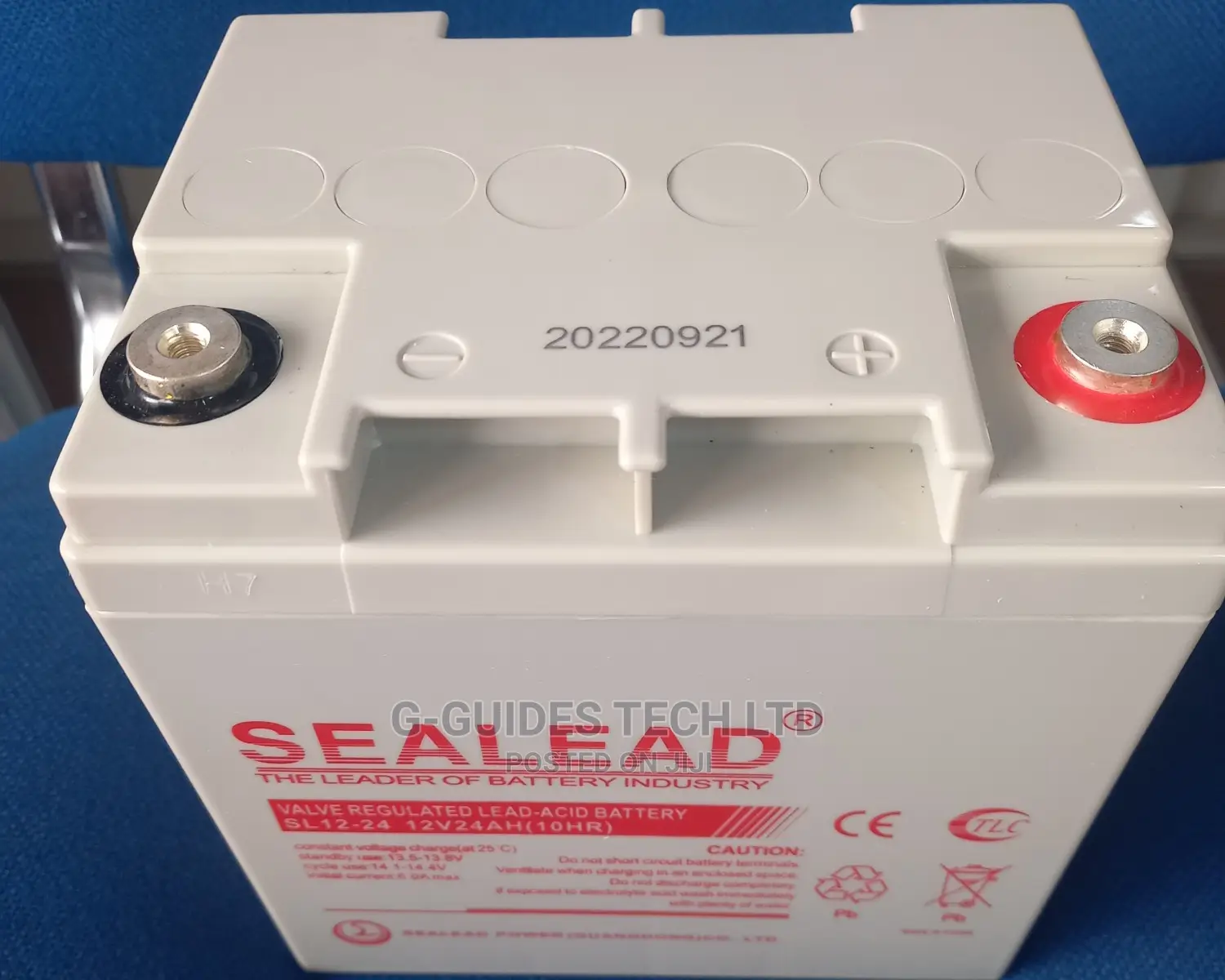

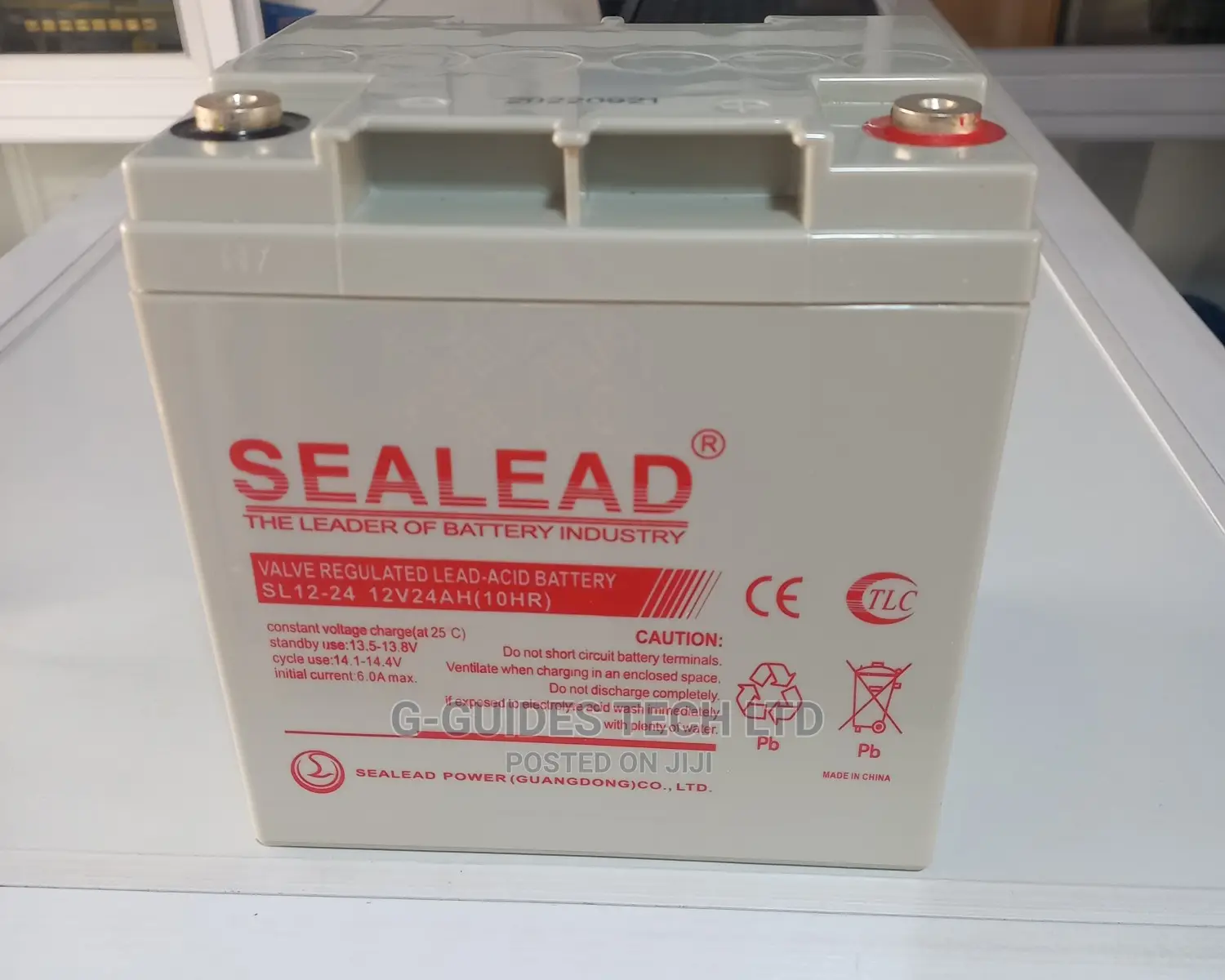

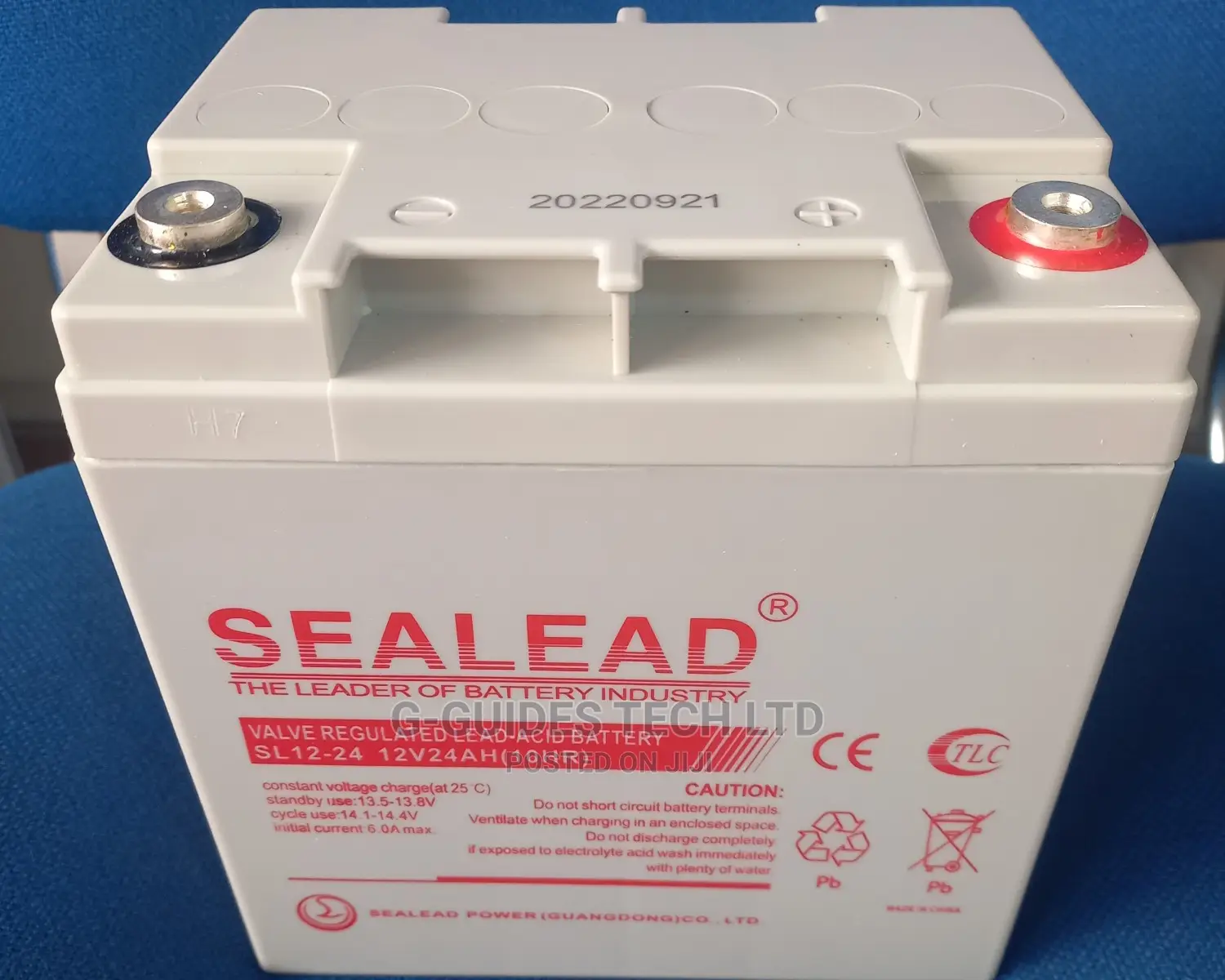

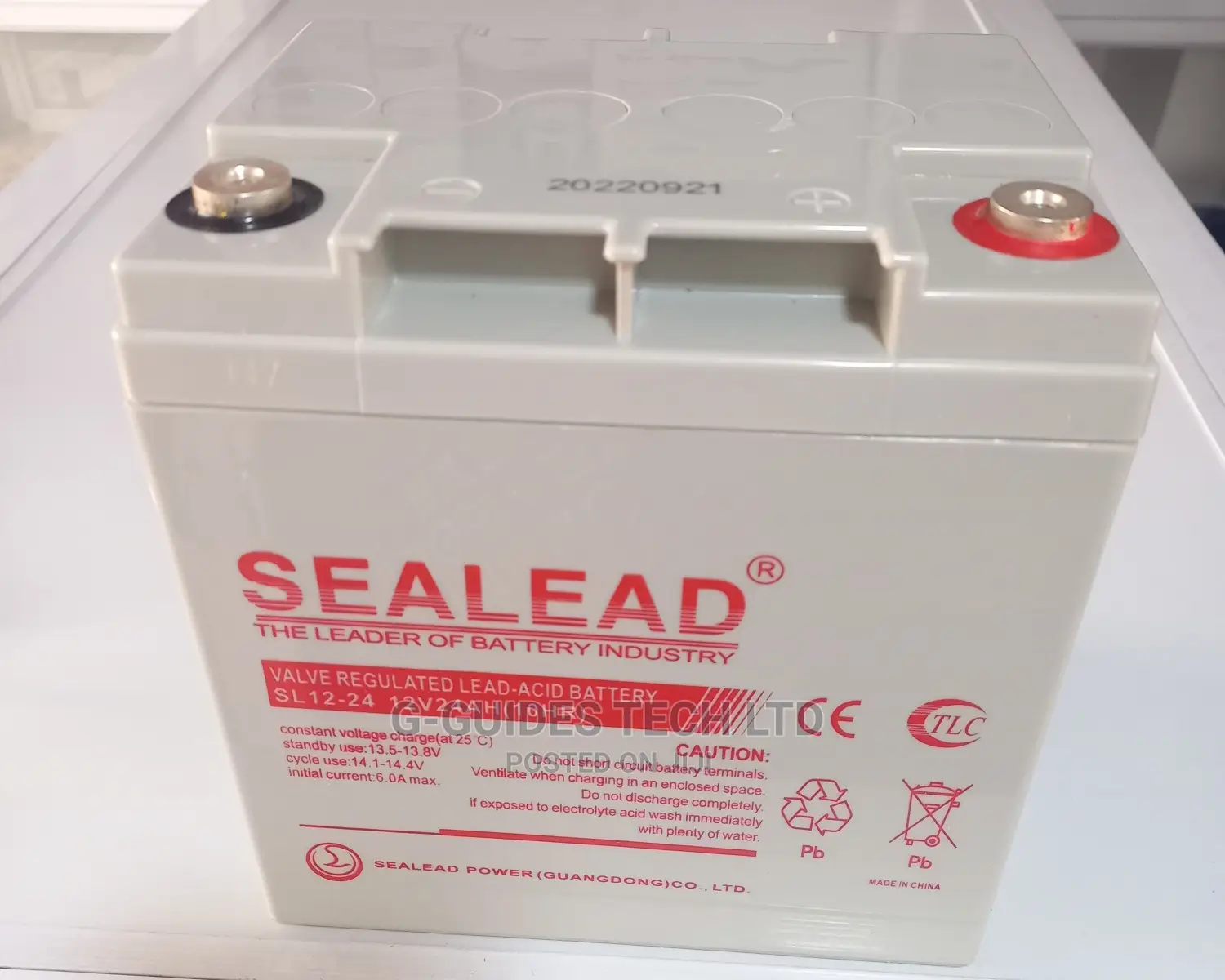

SEALEAD SL24-12 valve-regulated sealed lead-acid batteries provide reliable backup and standby power in light cyclic loads, for up to five years.
Battery specifications:
Potential: 12V (nominal).
Dimensions: length 166 millimetres by 175mm in width (both (±1mm). Height: 125mm (±2mm).
20-hour output capacity to 10.5V: 24.0 A/h.
10-hour current capacity to 10.8V: 24.0 A/h (both at 20°C).

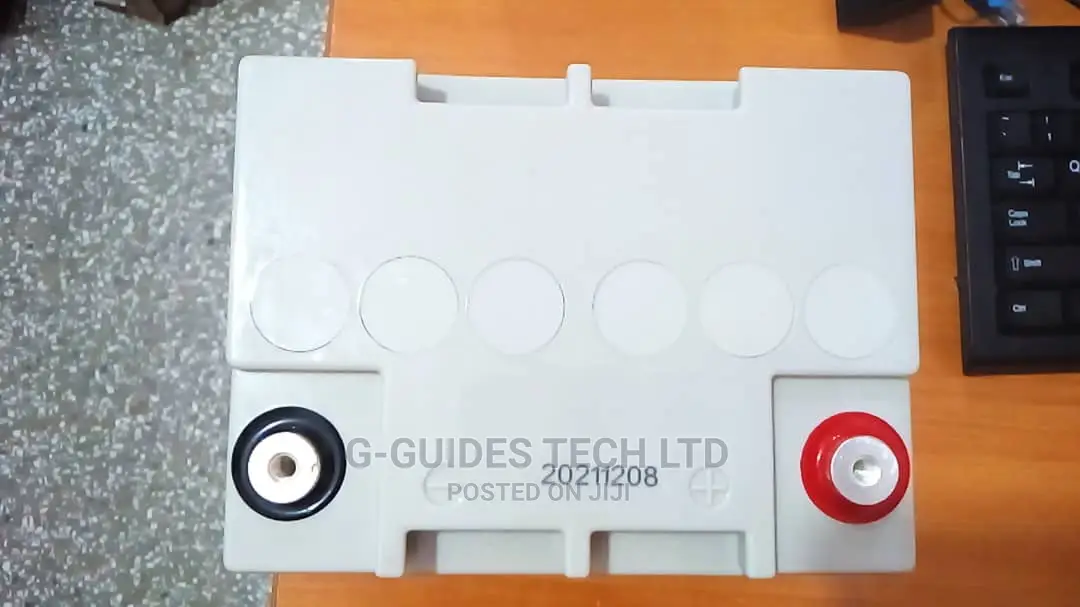

Terminals: threaded, type M5(F).
Weight: 9 kilogrammes.
Storage and operating temperature limits: -20°C to 60 degrees Centigrade.
Recommended charging temperature range: -15°C to +50°C maximum.
Maximum charging current: 6 Amps.
Peak discharge: 500A (1 second), or 150A (1 minute).
Storage loss: 3 per cent/month (approximate).
Standard ABS casing (UL94:HB).
Lead calcium grids for extended service life.
Absorbed glass mat construction to prevent acid escape.
