Features and specifications:
hdmi 2.0b, hdcp 2.2 / dvi 1.0 compliant
support 18gbps video bandwidth
support video resolution up to 4k2k/60hz 4:4:4
support digital audio format: dts-hd/dolby-true-hd/lpcm 7.1/dts/dolby-ac3/dsd
support hdr, hdr10, hdr10+, hlg and dolby vision
advanced edid management
compact design for easy and flexible installation
video: 594mhz/18gbps, 8-bit,10-bit,12-bit(1080p), 8-bit (4k2k yuv4:4:4), 8-bit,10-bit,12-bit(4k2k ycbcr 4:2:2/4:2:0)
color: rgb 4:4:4, ycbcr 4:4:4, ycbcr 4:2:2/4:2:0, support hdr, hdr10, hdr10+, hlg, dolby vision
audio formats: pcm2.0/5.1/7.1ch, dolby 5.1, dts5.1, dolby-truehd, dts-hd

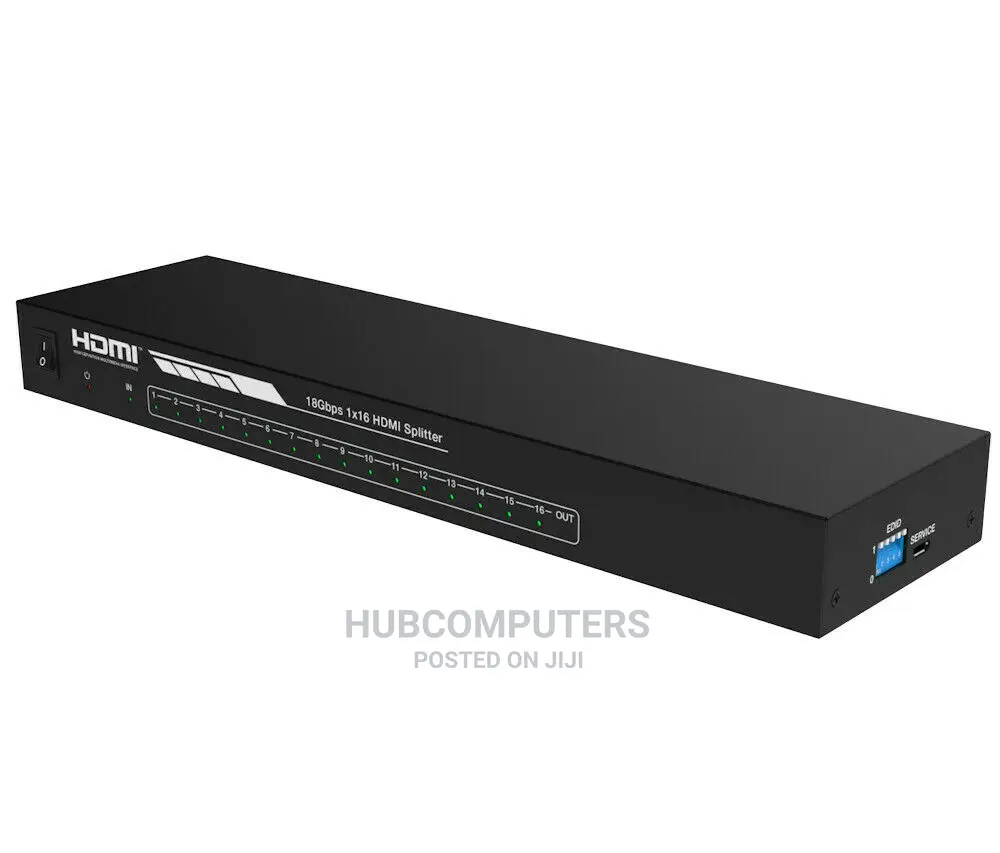

inputs/outputs: 1 hdmi input, 16 hdmi outputs, 1 micro-usb (service), 1 dial switch
metal enclosure, black
dimensions: wxdxhl 300mm x 100mm x 28mm
power: input: ac100 - 240v 50/60hz, output: dc 12v/2.5a, (us/eu standards, ce/fcc/ul certified), consumptions: 12w
