Pe162-200-c

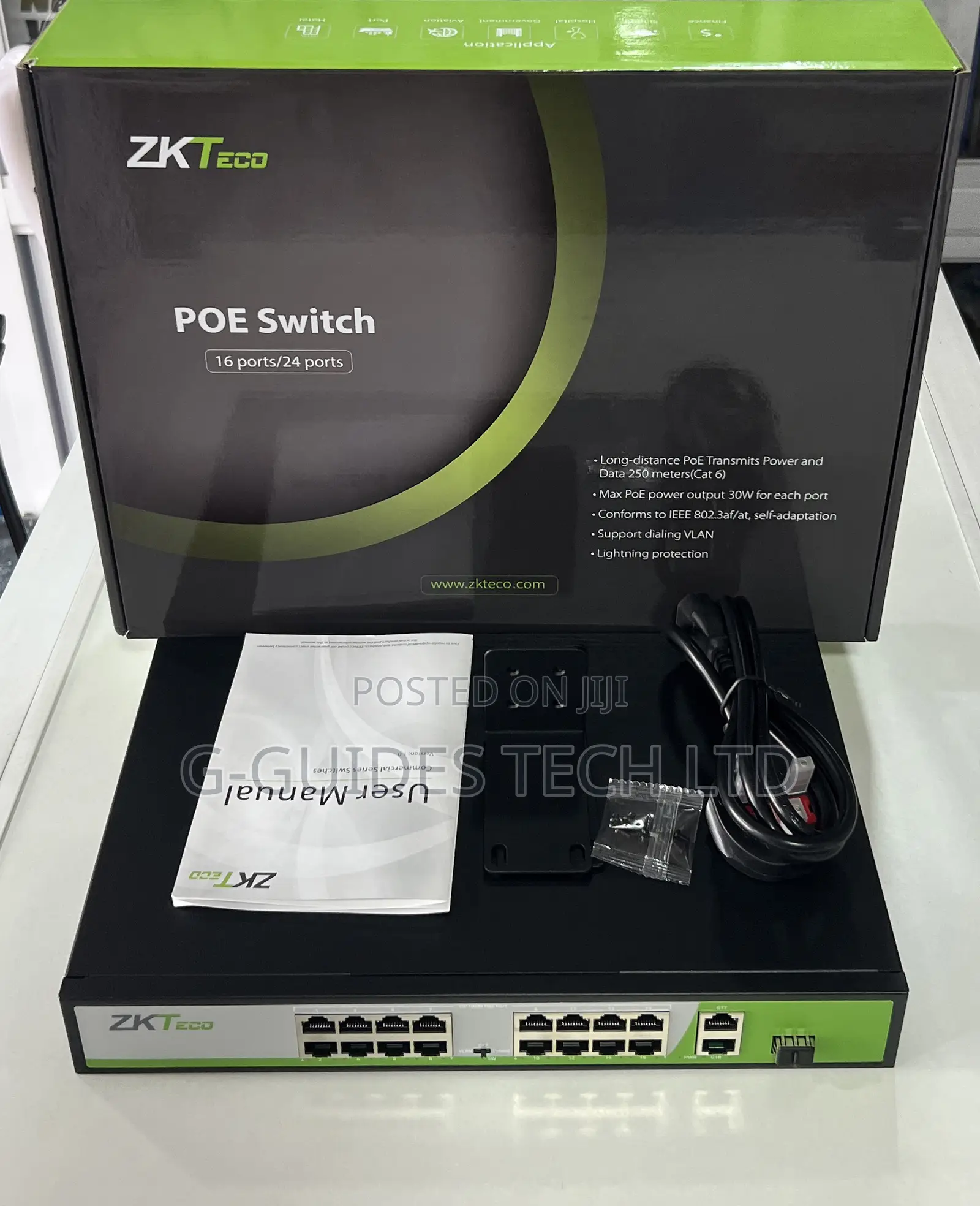

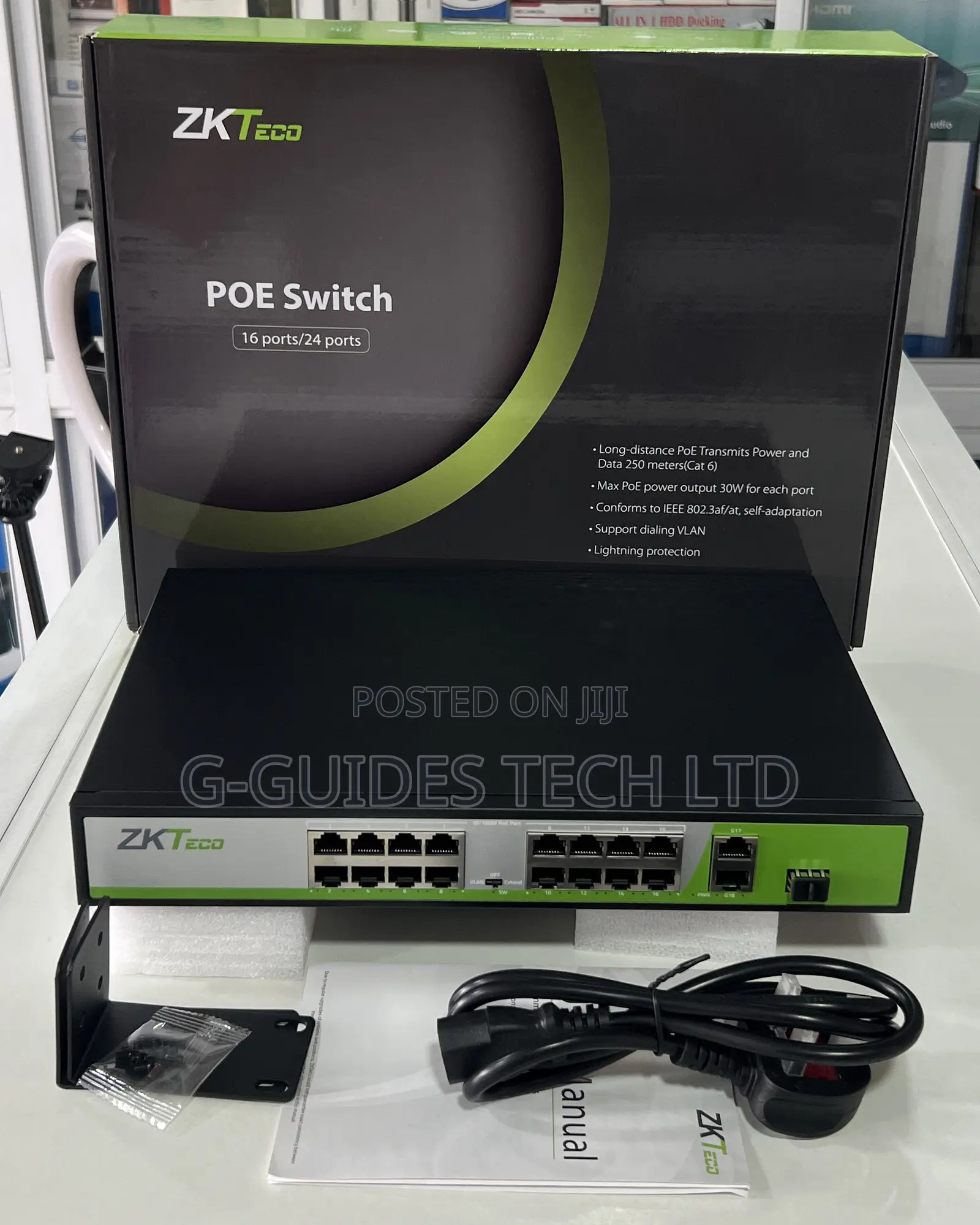

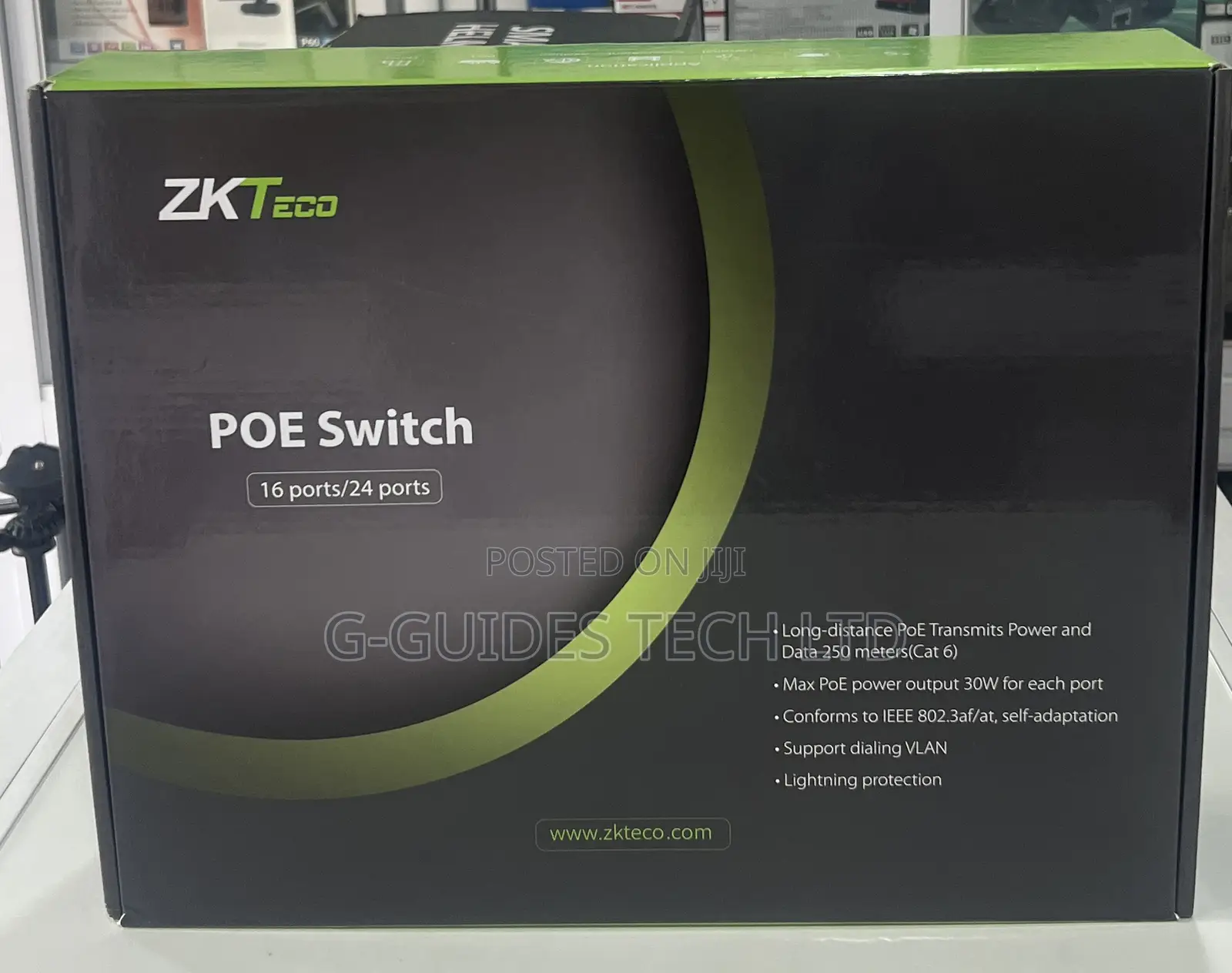

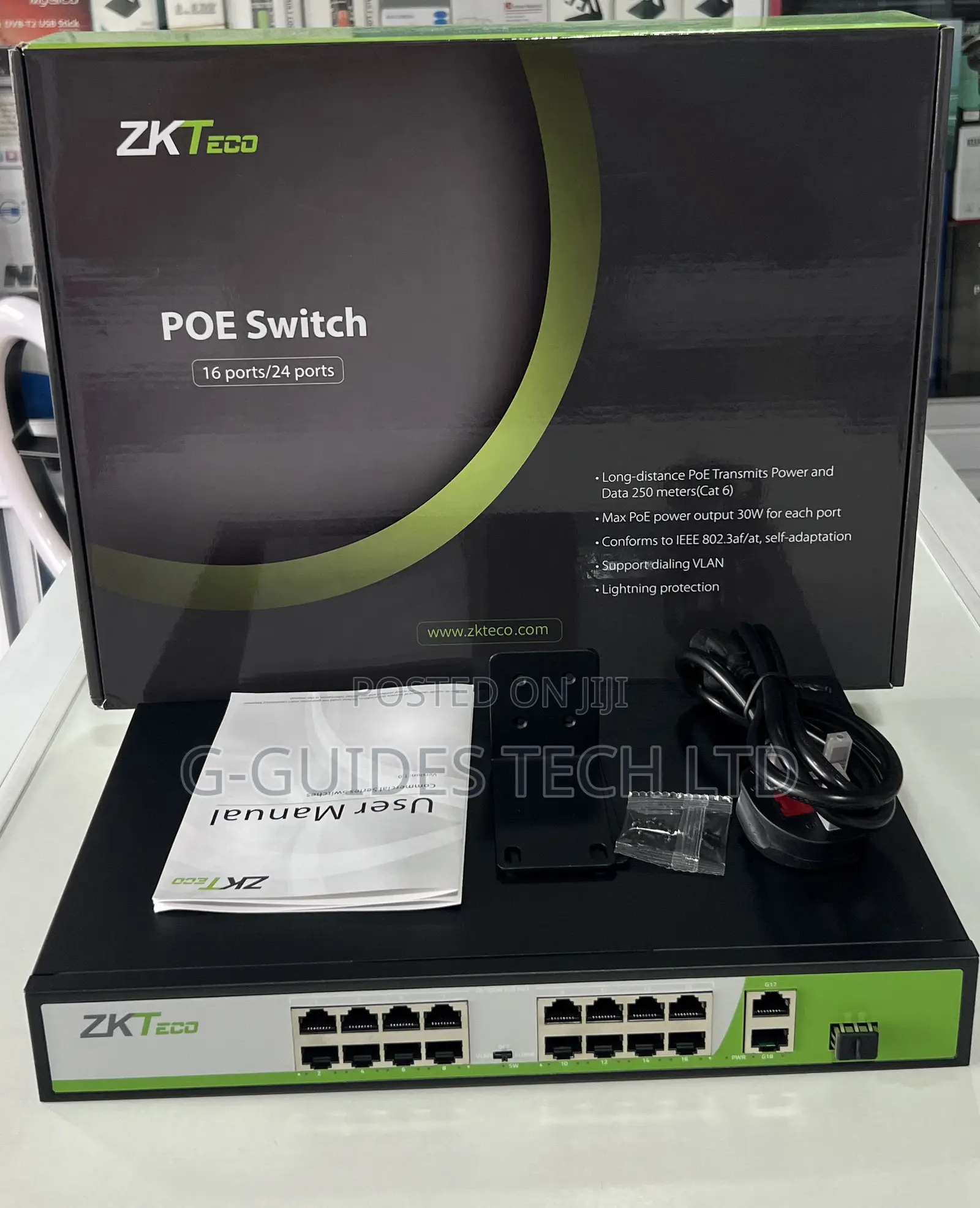

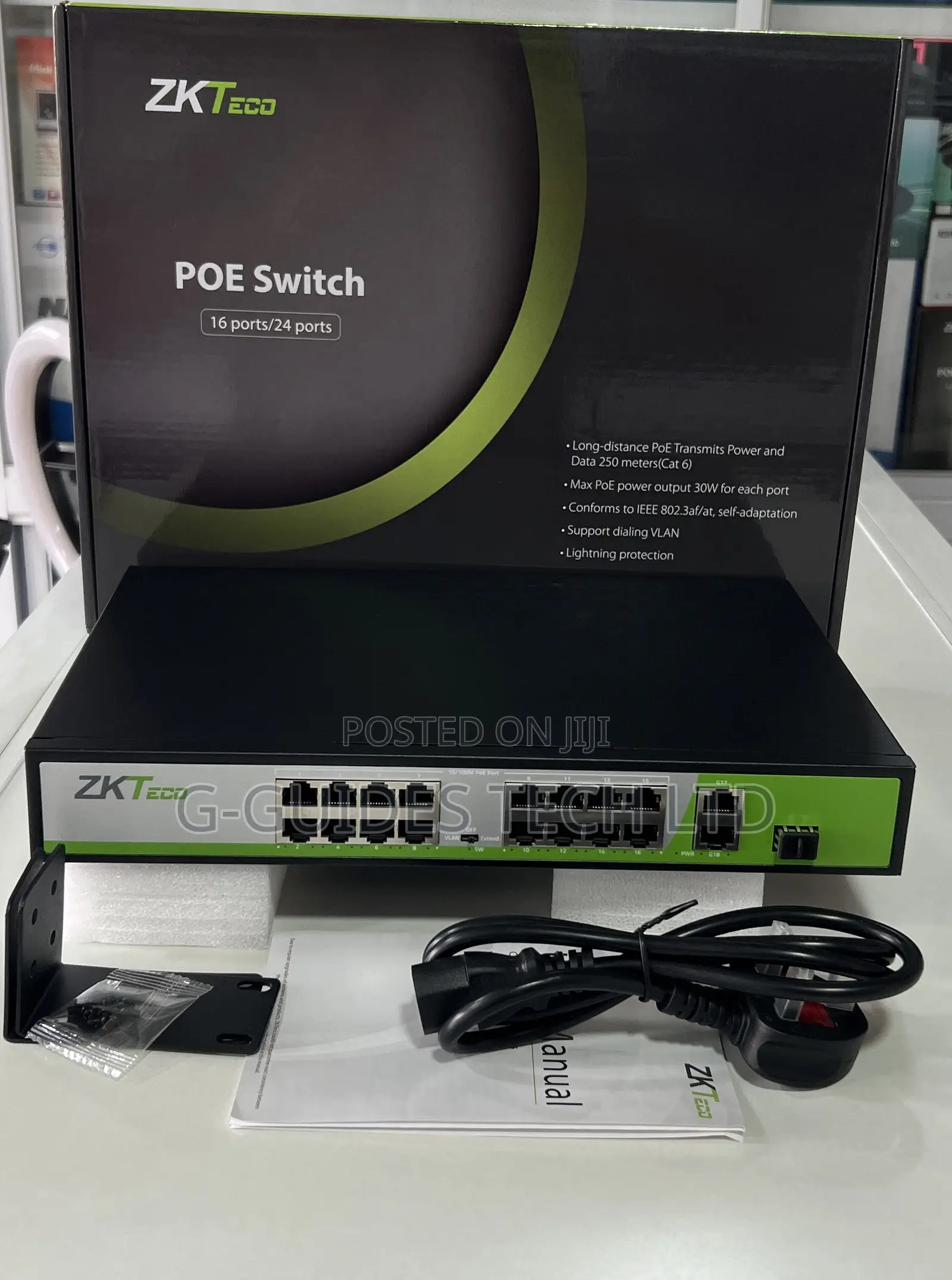

zkteco 16 ports 10/100mbps poe switch
system overview
· 16*10/100m rj-45(poe)+2*10/100/1000m rj-45+1*1000 sfp
· conforms to ieee 802.3,ieee 802.3u and ieee802.3af/at
· the max. poe power output is 15.4 w (ieee 802.3af )/ 30 w (ieee 802.3at) · 250 meters of poe transmission distance of power and data (cat 6 )
· mdi/mdix self-adaptation
· store-and-forward switching
· lightning protection
pe162-200-c is an advanced poe switch providing a network point for data transmission and power supply. it has 16 poe ports that can provide standard ieee802.3af/at power supply through network cables.
because of the advanced self-sensing algorithm for supplying power over ieee802.3af/at, the connected poe or non-poe standard equipment is safely protected.
specifications
model number port network protocol
poe
network cable
etc...
