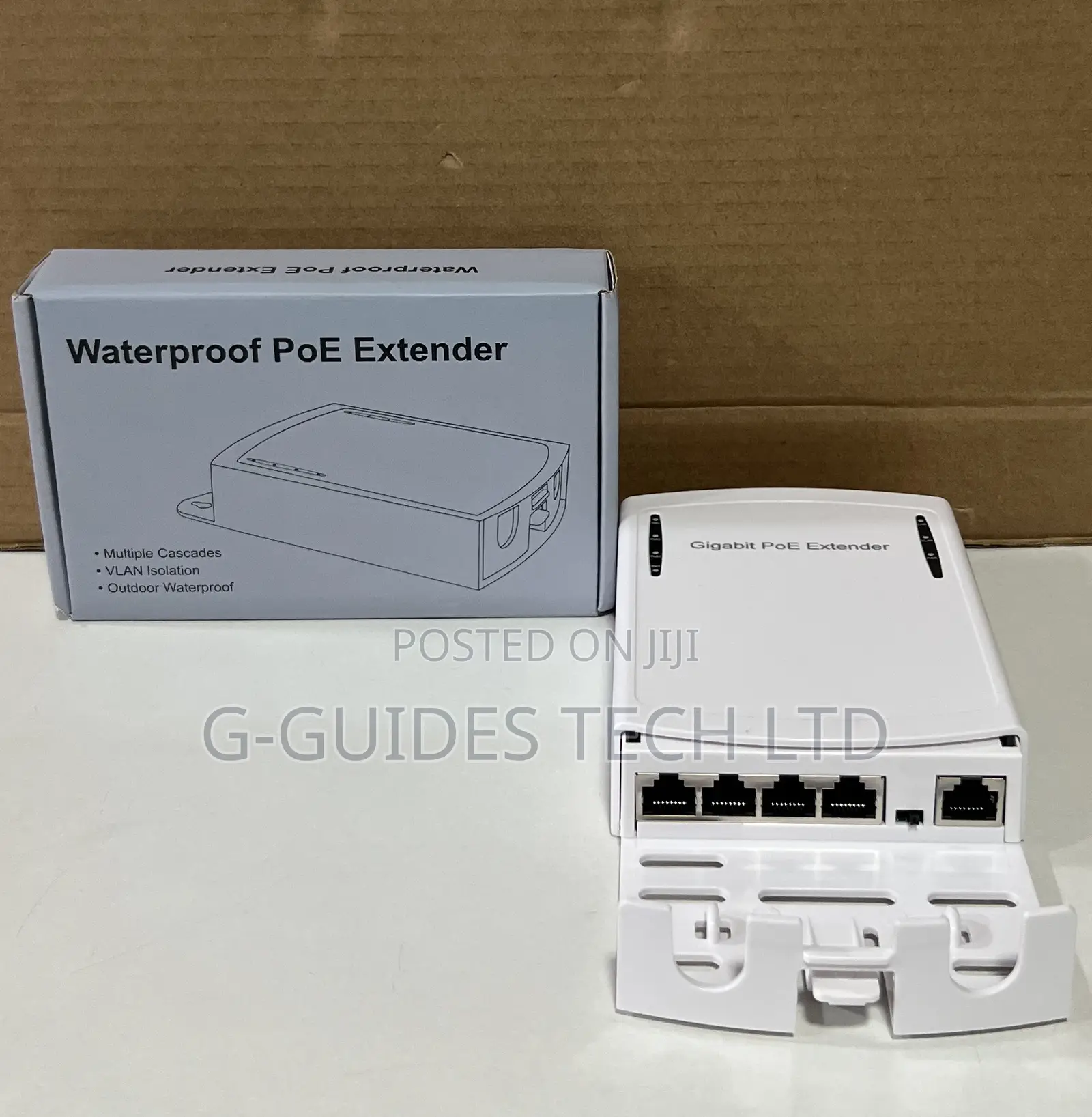

Waterproof 1-input to 4-output Gigabit PoE extender with a model number of HX-FSPOE104/G
Technical Specifications
Model Number: HX-FSPOE104/G
PoE Standard Compatibility: IEEE 802.3af / IEEE 802.3at
Ethernet Rate: 5-port 10/100/1000M adaptive
Pin Configuration: 1/2, 3/6 or 4/5, 7/8
Max PoE Input Power: 30W
Max Output per PoE Port: 25.5W
Core Design Features

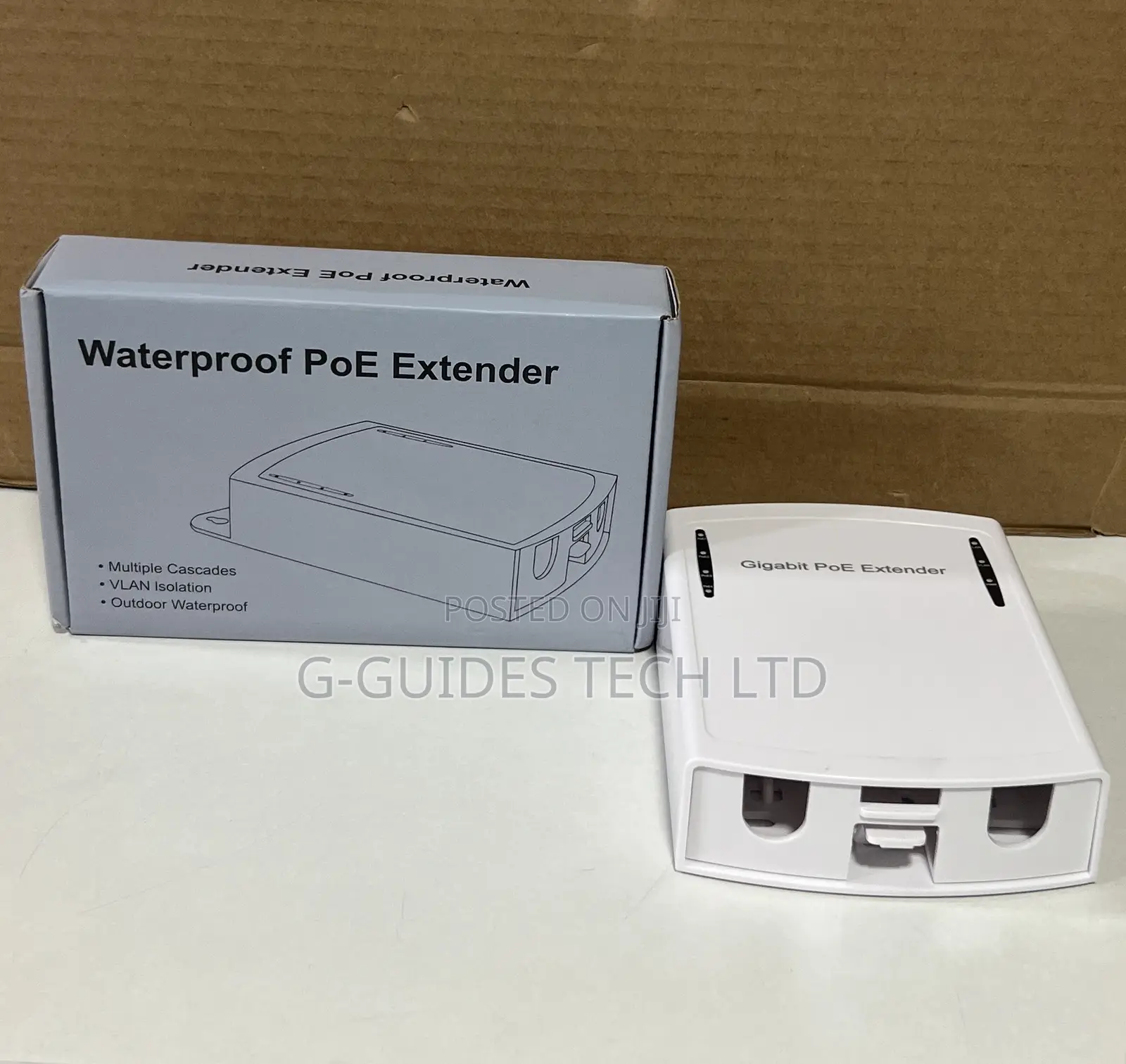

Waterproof Housing: Constructed from ABS and PC flame-retardant material, engineered to protect internal components from harsh outdoor weather elements.

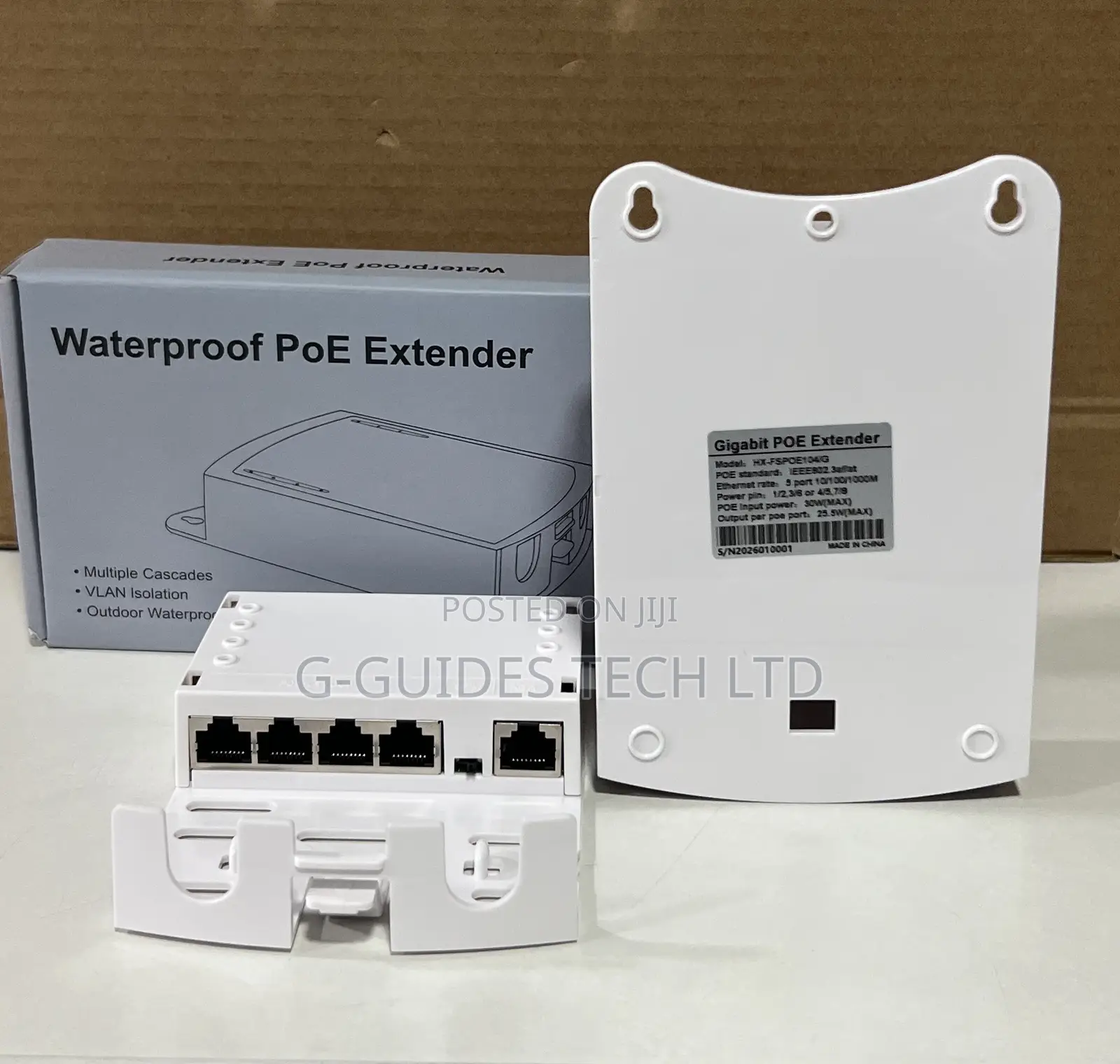

Wall-Mount Build: Features upper and lower mounting holes designed to securely bolt the unit directly onto exterior walls or support pillars.

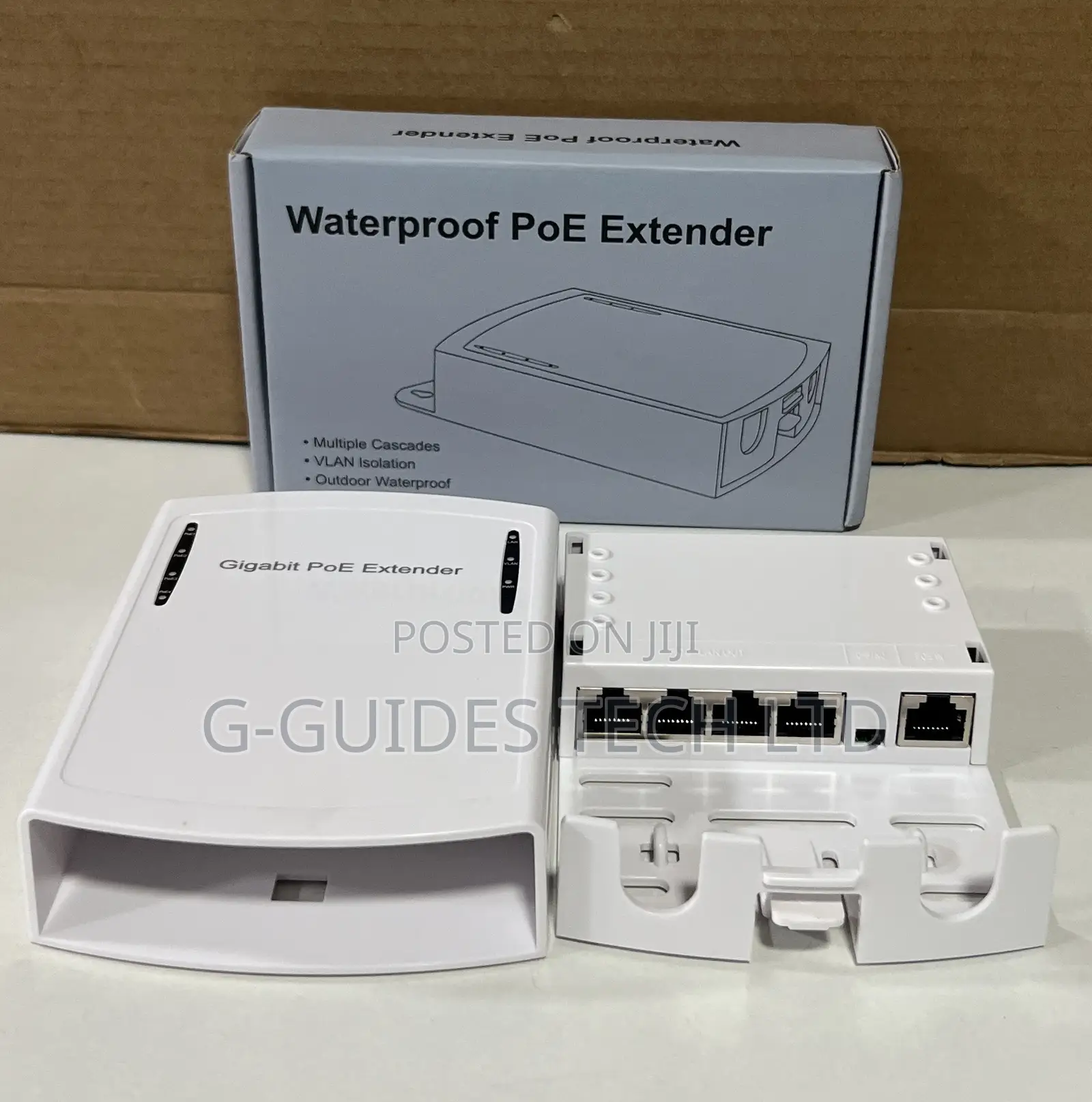

Protective Shield Lid: The top curve serves as an overhang to deflect rain, while the lower segment includes specialized routing guides to maintain water-tight cable entry points.
