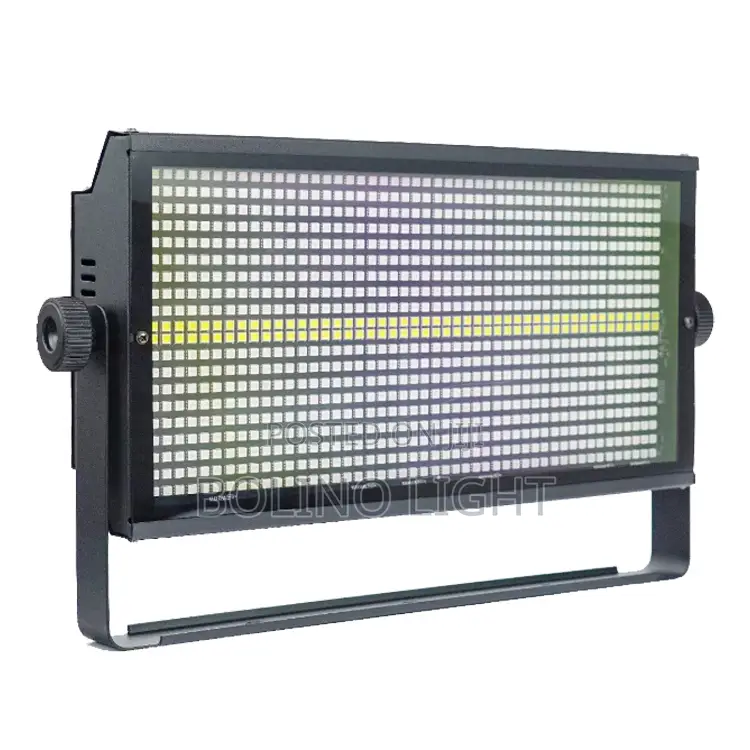

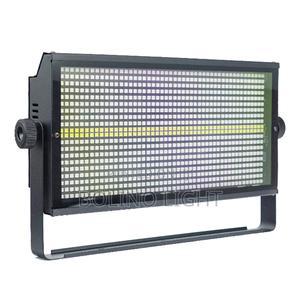

200w led strobe light
st-4808
optical system
light source: 768 pcs 5050+96 pcs 7070 led
life span:30000 h
luminous flux 16,000 lux( 5m)
beam angel : 120°
protection rating
ip20
color system
rgbw color mixing
fixture ct: rgb
effects
rgb 48 segments+8 segments ,pixel control
dimming: 0-100% linear dimming
strobe : 1-25 time/sec.
working temperature : -25°c ~ 40°c
display
lcd display
software
run time of light source and fixture
dmx channel : 4/14/54/152 ch
control
input signal isolation
auto thermal protection circuit
dmx512,master/slave , sound activity, stand alone
electric parameter
ac90-240v, 50/60hz
power consumption : 200w (instant peak 600w)
dimension and weight
product dimension: 40x23x9cm
packing dimension (carton): 54x54x68cm
net weight: 4.50kgs
gross weight (carton): 20.00kgs
