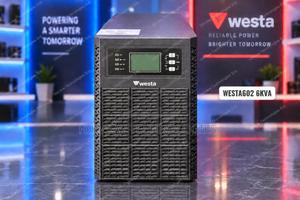

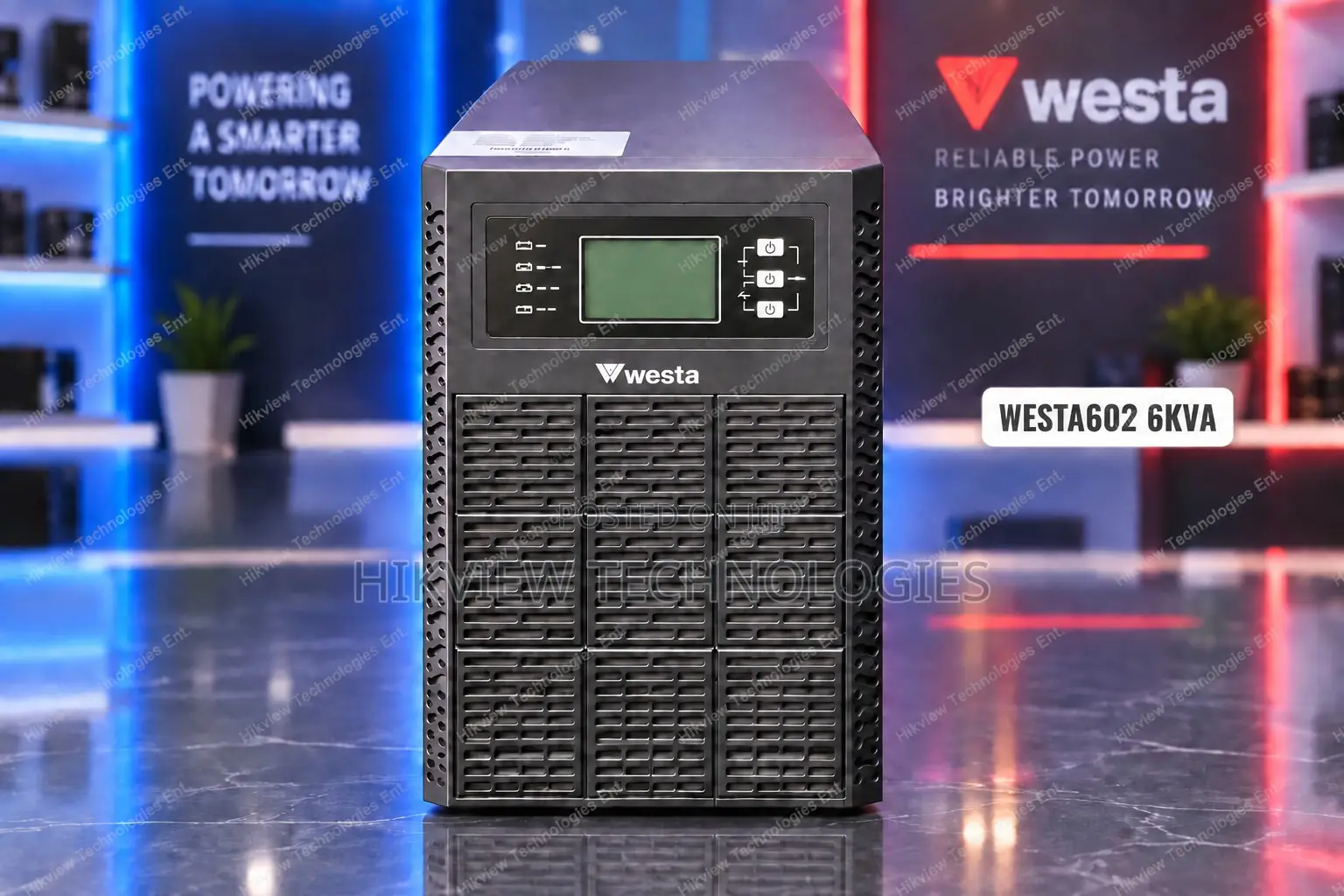

• Capacity & Load: 6kVA capacity delivering up to 6kW (6000W) of active power (Power Factor 1.0).
• Topology: True Online Double Conversion for absolute isolation between the incoming utility grid and your sensitive electronic loads.
• Battery Configuration: Operates on a high-voltage 192VDC battery bank system (typically utilizing 16 internal or external 12V batteries in series) to sustain heavy backup loads efficiently.
• Input Window: Robust input voltage acceptance range from 110 VAC to 300 VAC, maximizing battery life by minimizing unnecessary switching to battery mode.
• Controls & Protection: Features a comprehensive LCD interface tracking bypass status, load percentage, battery levels, and fault codes, alongside built-in short circuit and overload protections.
