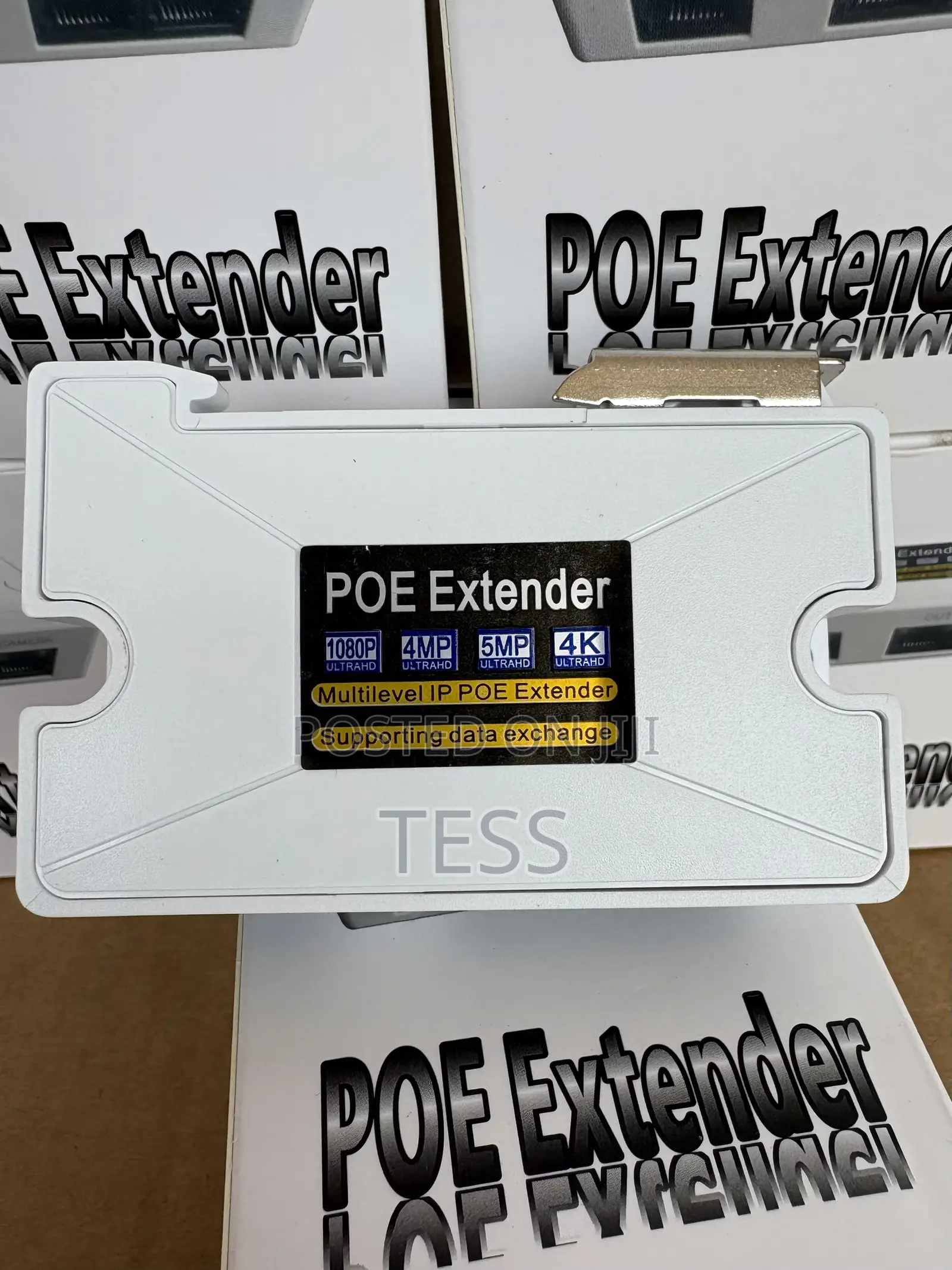

PoE Extender is mainly used to cooperate with High PoE Midspan to form long- distance transmission plan, transmit Ethernet data via Cat5/5e/6 network cable and supply power for IP Camera, cascade multilevel transmission 300m.
1.1 Features
• Support PoE cascade power supply and Ethernet data exchange.
• Support IEEE 802.3af/at standard power supply IP Camera.
• 1*RJ45 10/100M PoE power supply input; 1*RJ45 10/100M supply power for IP Cam; 1'RJ45 10/100M supply power for the next extender.
• Cooperate with High PoE MidspanPOEextender able to cascade level 2 PoE Extender, connect to 3 IPC (power consumption < =8W), max transmission distance 300m.

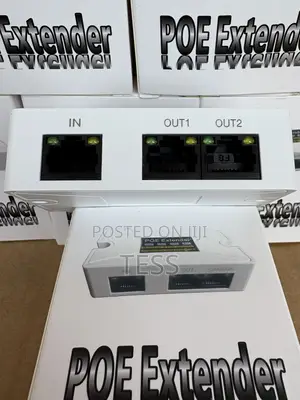

• Interface: 1"RJ45 10/100M port in, 1*RJ45 10/100M port PoE power out.
• Indicator: Internet access Link/Act indication.
