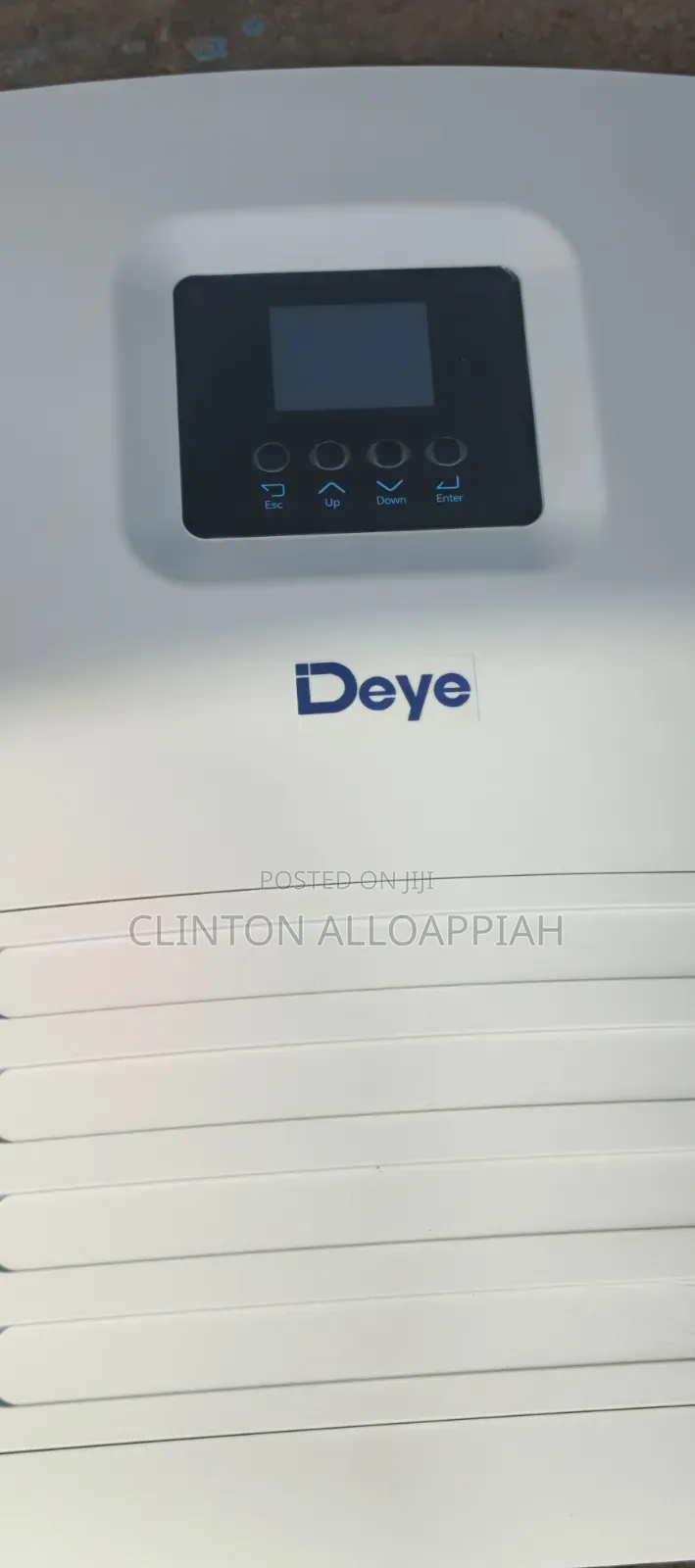

Deye 6kv Inverter

+1

3

Other

Type

Deye hybrid

Brand

New model2

Model

5200 Mbps & Above

Max LAN Speed

Brand New

Condition

Store address

Ashanti • Kumasi Metropolitan

Kumasi, Ghana

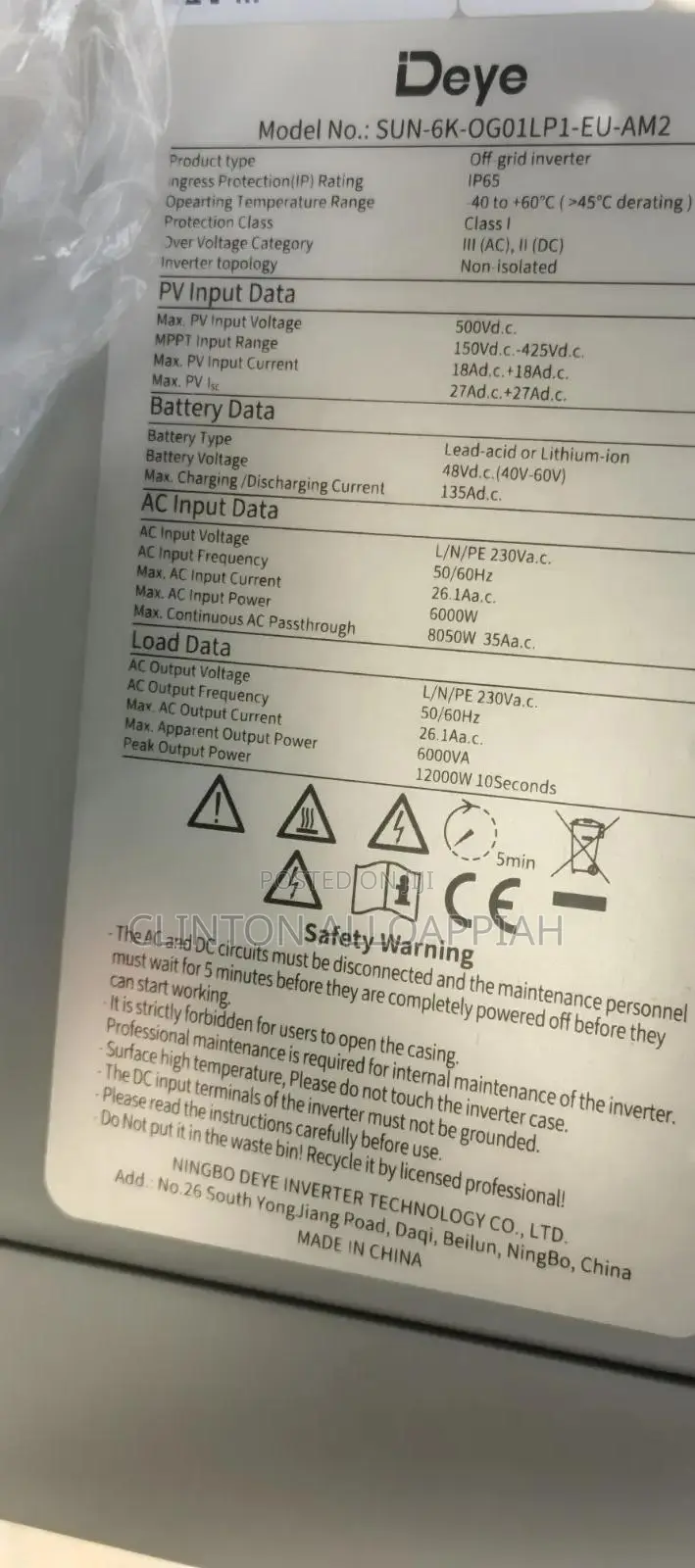

Battery type lead-acid or lithium-ion battery voltage range (v) 20-30 40-60 max. charging current (a) 130 90 120 135 max. discharging current (a) 130 90 120 135 charging strategy for li-ion battery self-adaption to bms number of battery input 1 pv string input data max. pv access power (w) 6000 7200 10000 12000 max. pv input power (w) 4800 5760 8000 9600 max. pv input voltage (v) 500 start-up voltage (v) 125 pv input voltage(v) 125-500 mppt voltage range(v) 150-425 full load mppt voltage range(v) 300-425 rated pv input voltage (v) 370 max. operating pv input current (a) 18 18+18 max. input short-circuit current (a) 27 27+27 no. of mpp trackers/no. of strings mpp tracker 1/1 2/1+1 max. inverter backfeed current to the array(a) 0 ac output data rated ac output power (va/w) 3000 3600 5000 6000 max. ac output power (va/w) 3000 3600 5000 6000
