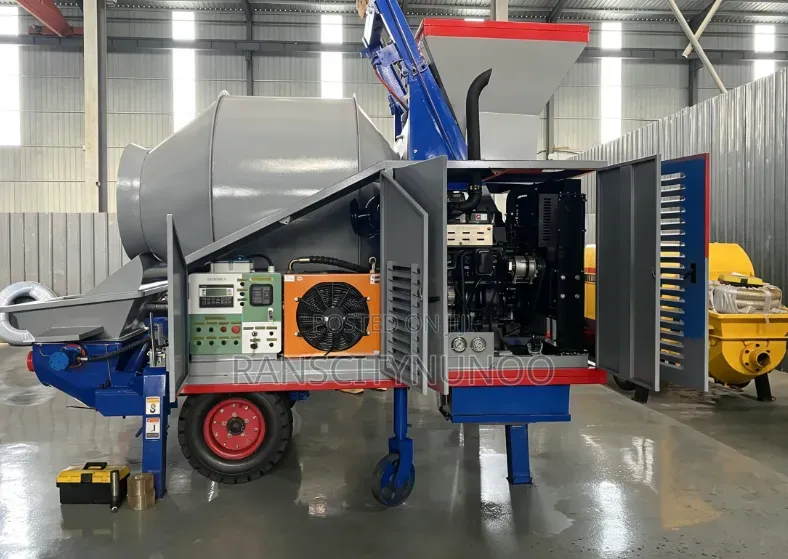

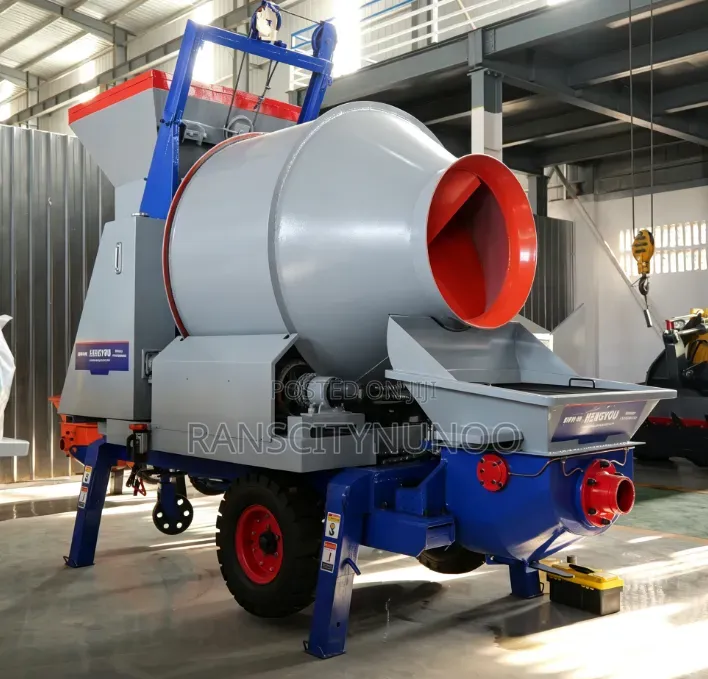

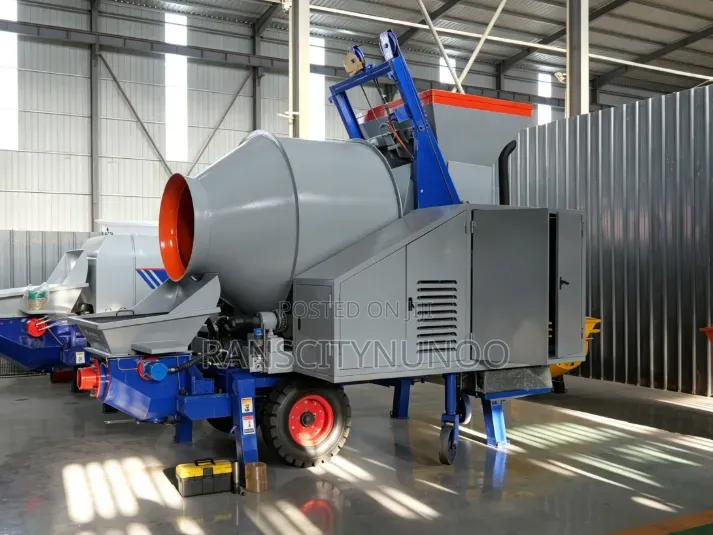

Concrete Mixer Pump
Concrete Pumps
Type
Other
Make
Jbt50
Model
Brand New
Condition
2025
Year of Manufacture
4000kg
Operating Weight
1800rpm
Rated Speed
28MPa
Pressure
16rpm
Pump Cycles
35L
Hopper Capacity
100mm
Outlet Diameter
75kW
Engine Power
24h
Working Hours
16L
Fuel Tank Capacity
No
Exchange Possible
Diesel Engine 4108, 75 kW
Maximum Theoretical Concrete Conveying Capacity:
25–30 m3/h
Maximum Pressure 28 MPa
Maximum Aggregate Size ≤30 mm
Vertical Conveying Height 100 m (fine aggregate), 40
m (coarse aggregate)
Horizontal Conveying Distance 200 m (fine
aggregate), 180 m (large aggregate)
Discharge Port Diameter 125 mm
Hopper Capacity 0.35 m3 Hydraulic
Conveying Cylinder 140 × 1000 mm
Main Hydraulic Pump 112 Piston Pump (Kawasaki)
Rated Speed 1800 rpm
Gross Weight 4000 kg
Associates:
40 meters non explosive pipes
10 meters flexible hose
3 each 40°and 60° elbows
Remote control
Tools box
