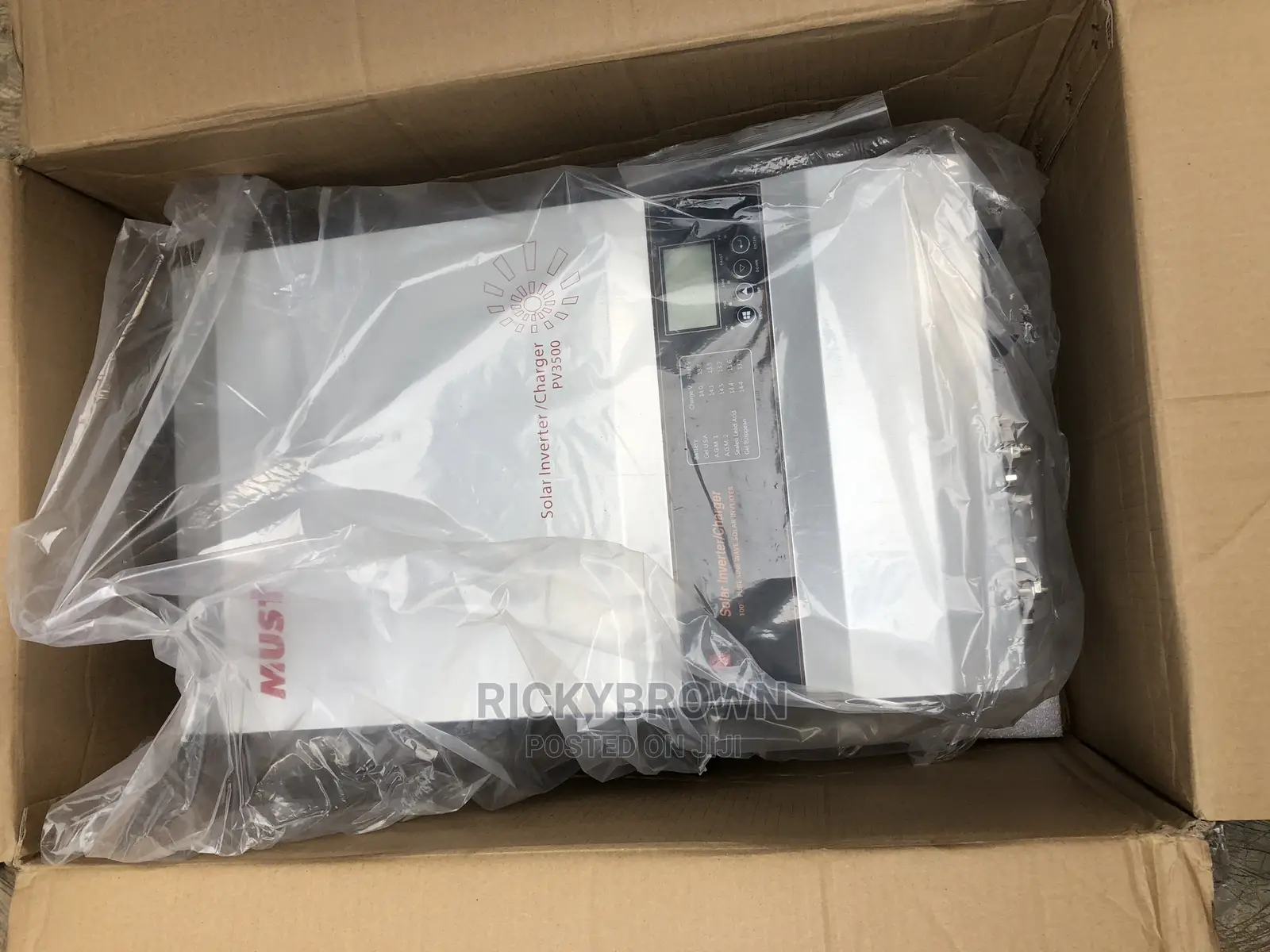

Model name: pv3500
md: pv35-10kw pro
operating temperature: 0°c ~ +40°c
protection class: class i
protection degree: ip 20
inverter mode:
rated power: 10000w
dc input: 48vdc,242.3a
ac output: 230vac 50hz 43.5a 10
ac charger mode:
ac input: 230vac 50hz 80a 1¢
dc output: 48vdc 120a
solar charger mode:
rated current: 100a
system voltage: 48vdc
mppt voltage range: 60-130vdc
max. solar voltage (voc): 145vdc
max. charge current: 220a
