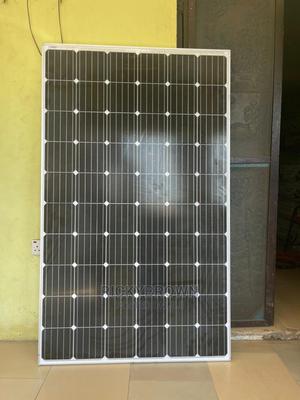

330watts VIKRAM Solar Panels
Solar Panels
Type
72
Number of Cells
330watts
Solar Panel Power
24 V
Panel Rated Voltage
90%
Panel Efficiency
Brand New
Condition

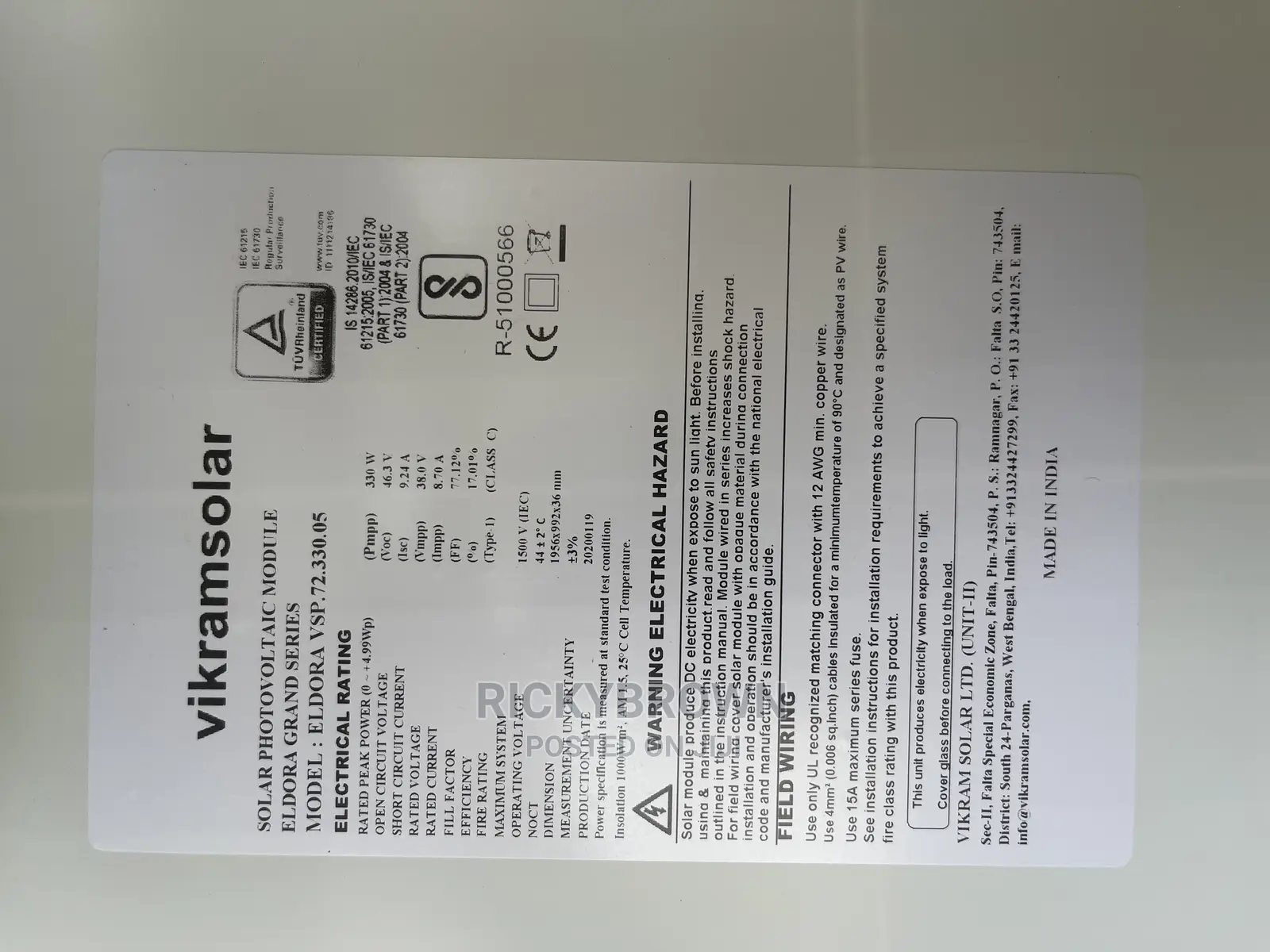

Model/Brand: VIKRAM
Made in India
nominal maximum power (pmax):
330 w
optimum operating voltage (vmp): 38.0 V
optimum operating current (imp): 8.70a
open circuit voltage(voc): 46.3 V
short circuit current (isc): 9.24 a
maximum system voltage
iec 100v & ul 1000v
maximum series fuse rating
all electrical data at standard test conditions (stc): irradiance of 1000w/m?. spectrum am 1.5
and cell temperature of 25°c
maximum temperature:
85°c
module fire performance:
type 1 (ul1703) / class c (iec61730)
application class:
class a
system fire cinss rating: see installation instructions for installation requirements to achieve a
specified system fire class rating with the product.
for field connection, use 4mm' & 12 awg copper wire insulated for a minimum of 90°c
