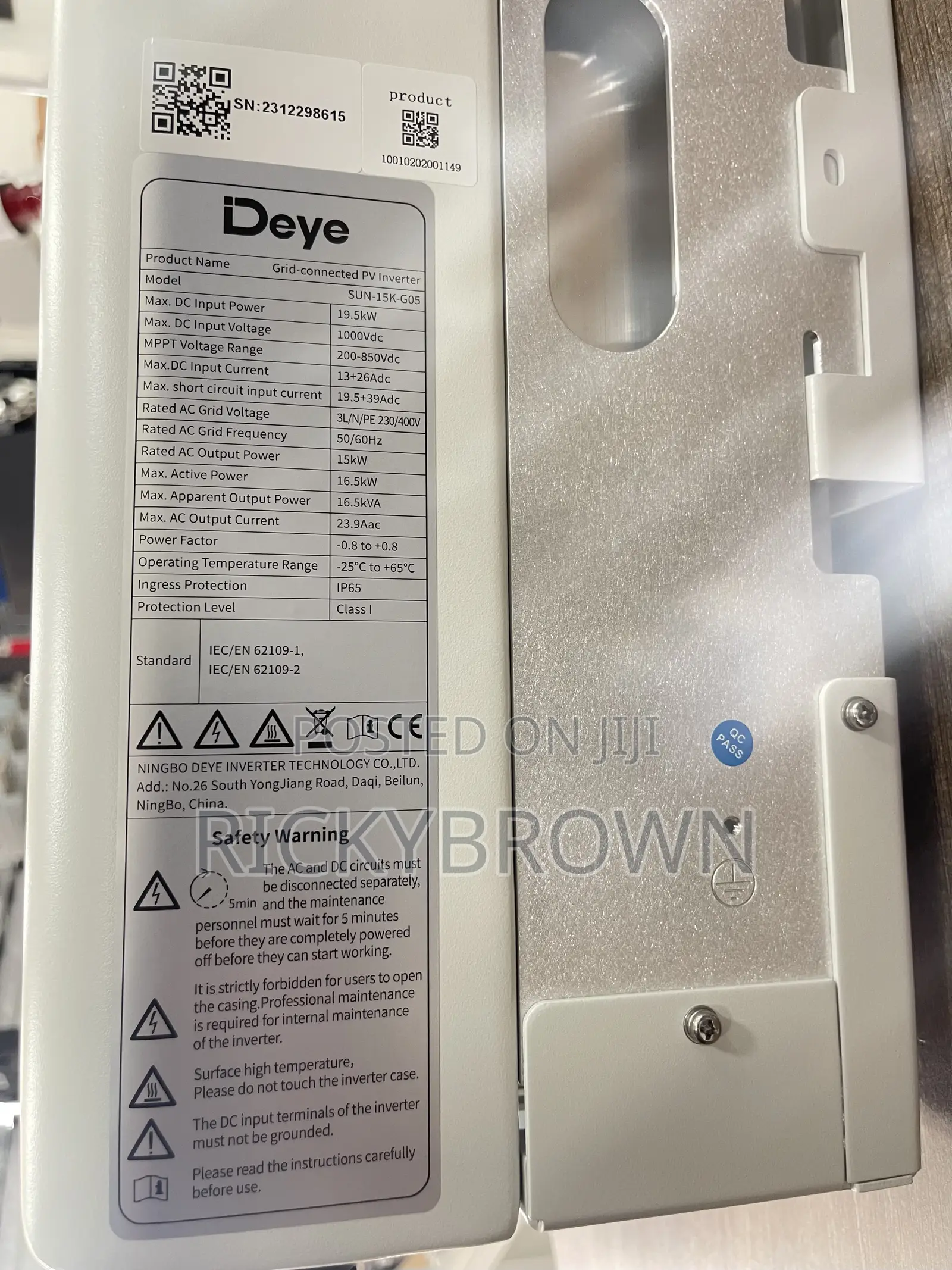

Product name: grid-connected pv inverter
model: sun-15k-g05
max. dc input power: 19.5kw
max. dc input voltage: 1000vdc
mppt voltage range: 200-850vdc
max. dc input current: 13+26adc
max. short circuit input current: 19.5+39adc
rated ac grid voltage: 3l/n/pe 230/400v
rated ac grid frequency : 50/60hz
rated ac output power: 15kw
max. active power: 16.5kw
max. apparent output power 16.5kva
max. ac output current: 23.9aac
power factor: -0.8 to +0.8
operating temperature range
-25°c to +65°c
ingress protection
ip65
protection level
class i
