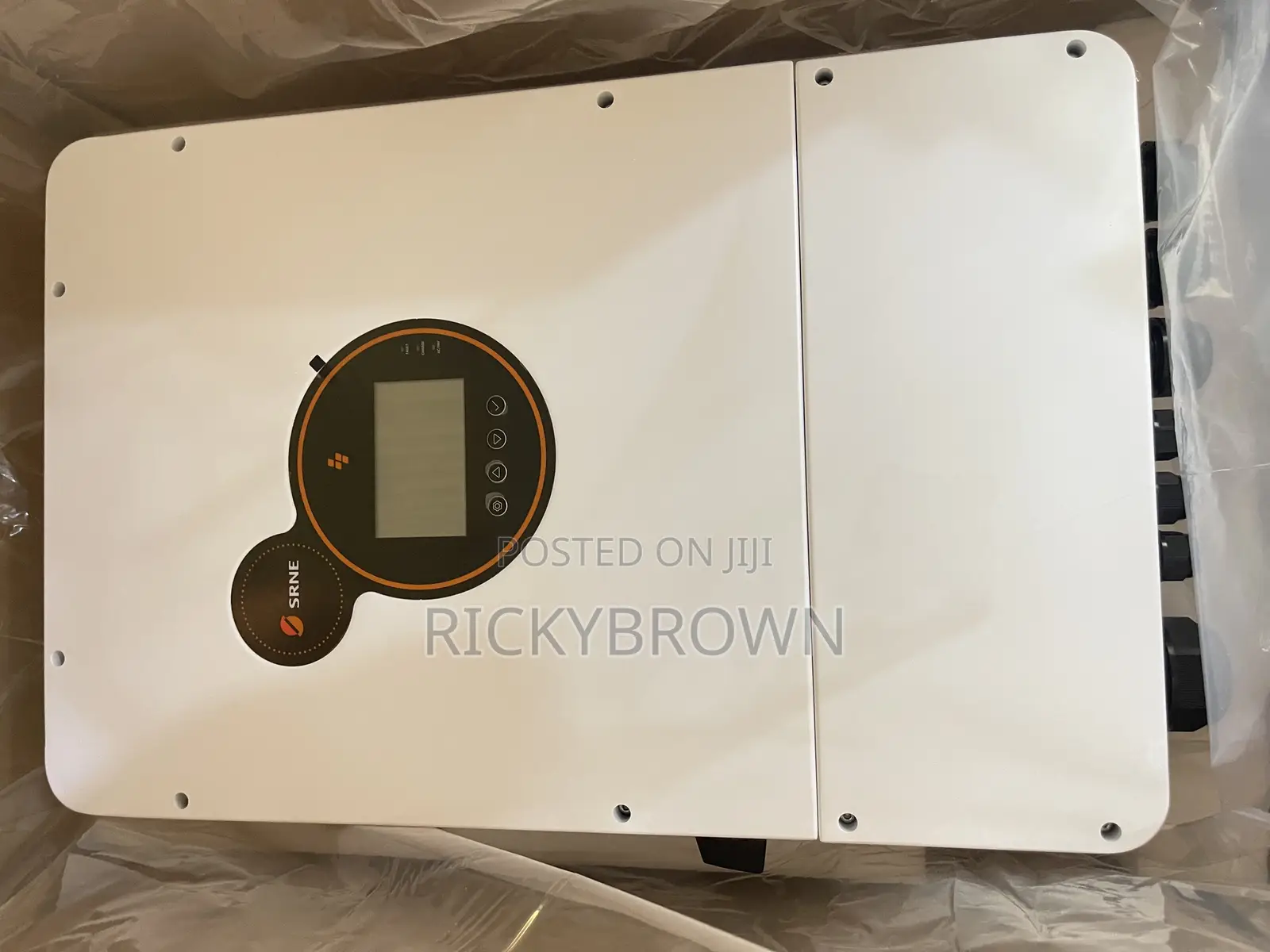

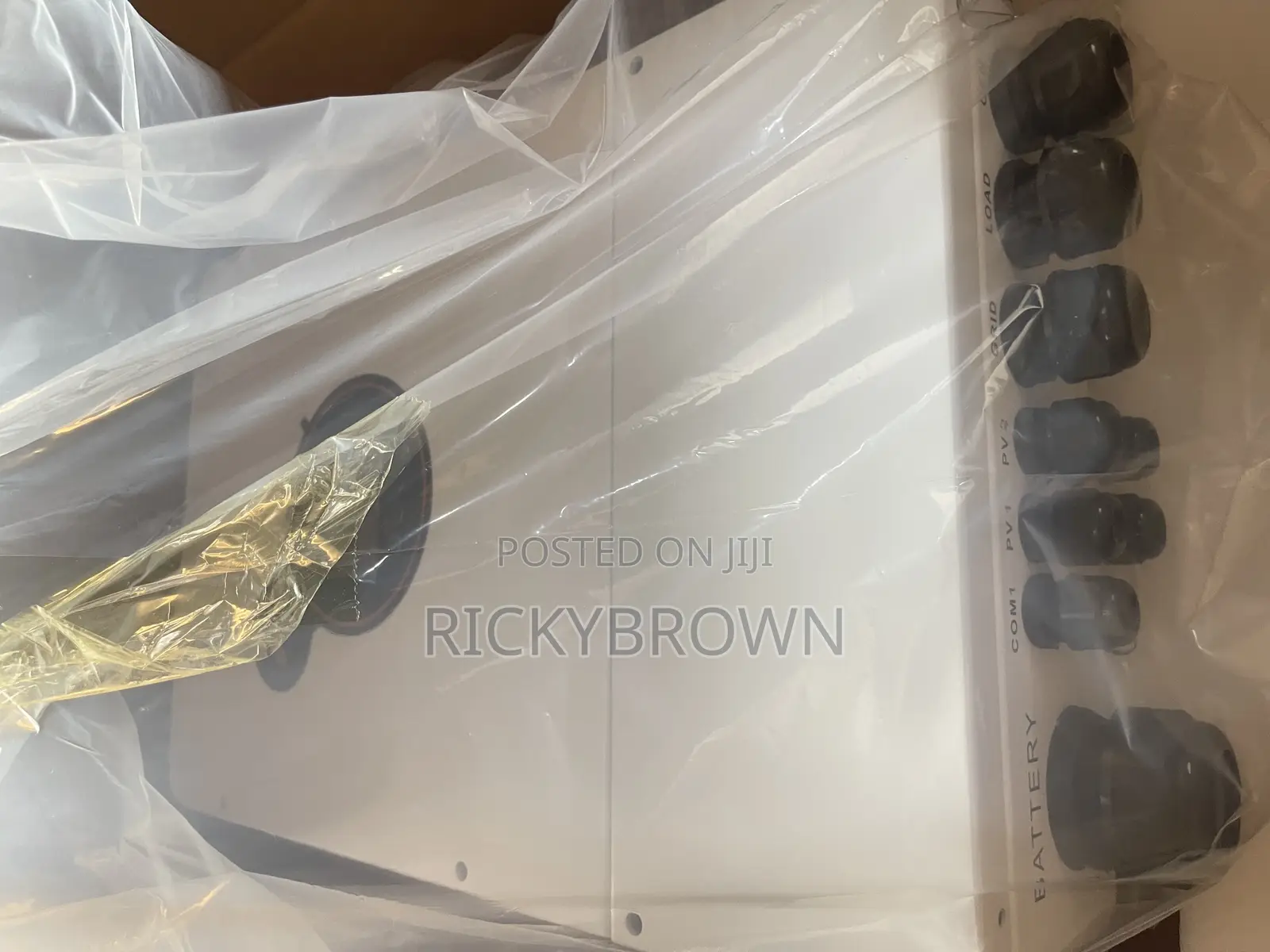

12,000watts (12kw) Solar Hybrid Inverters
Srne
Brand
Solar Inverters
Type
12kVA
Inverter Power
52.2amps
Inverter Rated Current
48 V
Inverter Voltage
Brand New
Condition

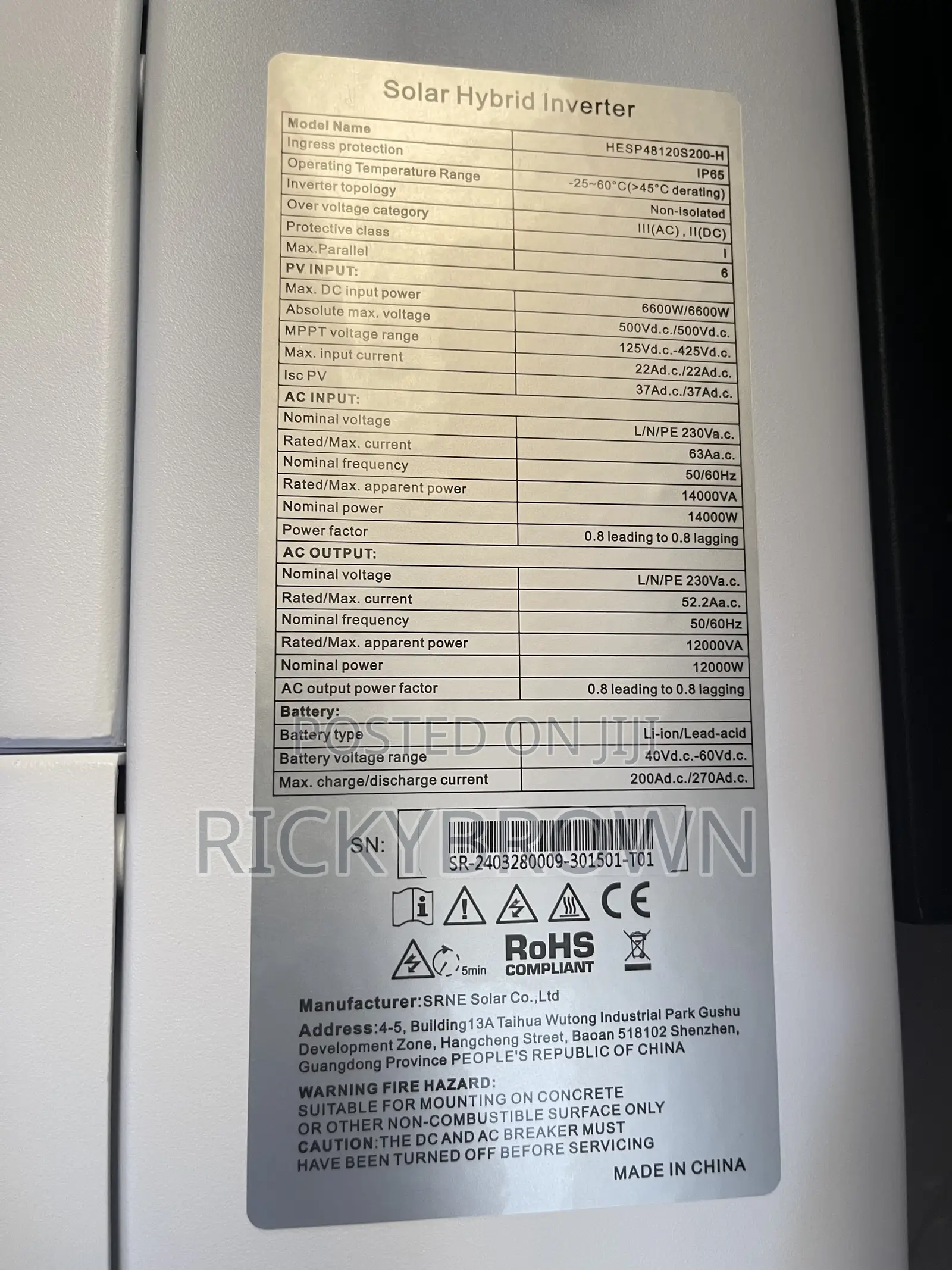

Model name: hesp48120s200-h
ingress protection: ip65
protective class: i
can be paralleled up to 6 units
pv input:
max. dc input power : 6600w/6600w
absolute max. voltage: 500vd.c./500vd.c
mppt voltage range: 125vd.c.-425vd.c.
max. input current: 22ad.c./22ad.c.
isc pv: 37 ad.c./37ad.c.
ac input:
nominal voltage : l/n/pe 230va.c.
rated/max. current: 63aa.c
.
nominal frequency: 50/60hz
rated/max. apparent power : 14000va
nominal power
14000w
power factor
0.8 leading to 0.8 lagging
ac output:
nominal voltage
l/n/pe 230 va.c.
rated/max. current
52.2aa.c
rated/max. apparent power
12000 va
nominal power
12000w
ac output power factor
0.8 leading to 0.8 lagging
battery type
li-ion/lead-acid
battery voltage range: 40vd.c.- 60 vdc
