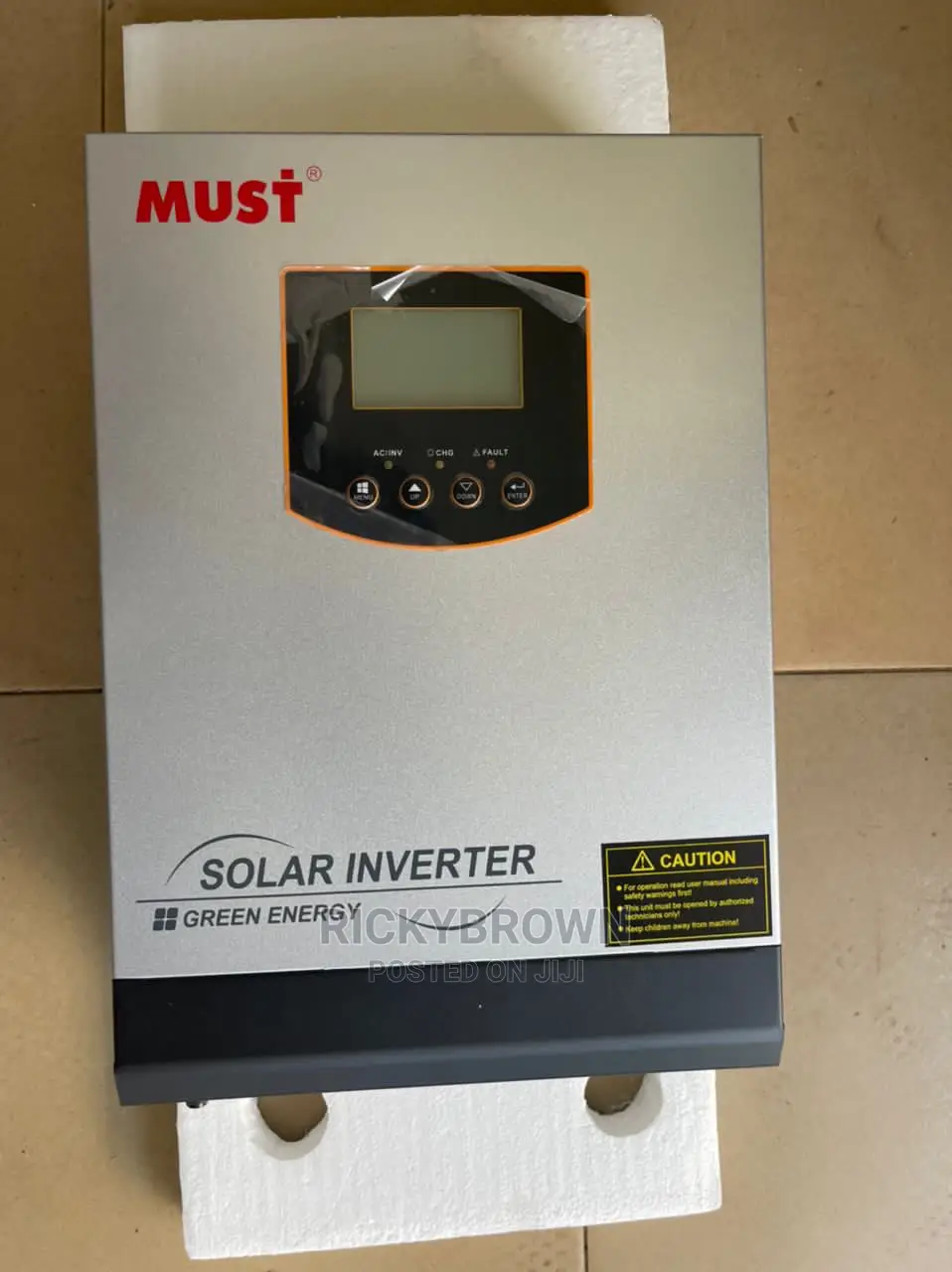

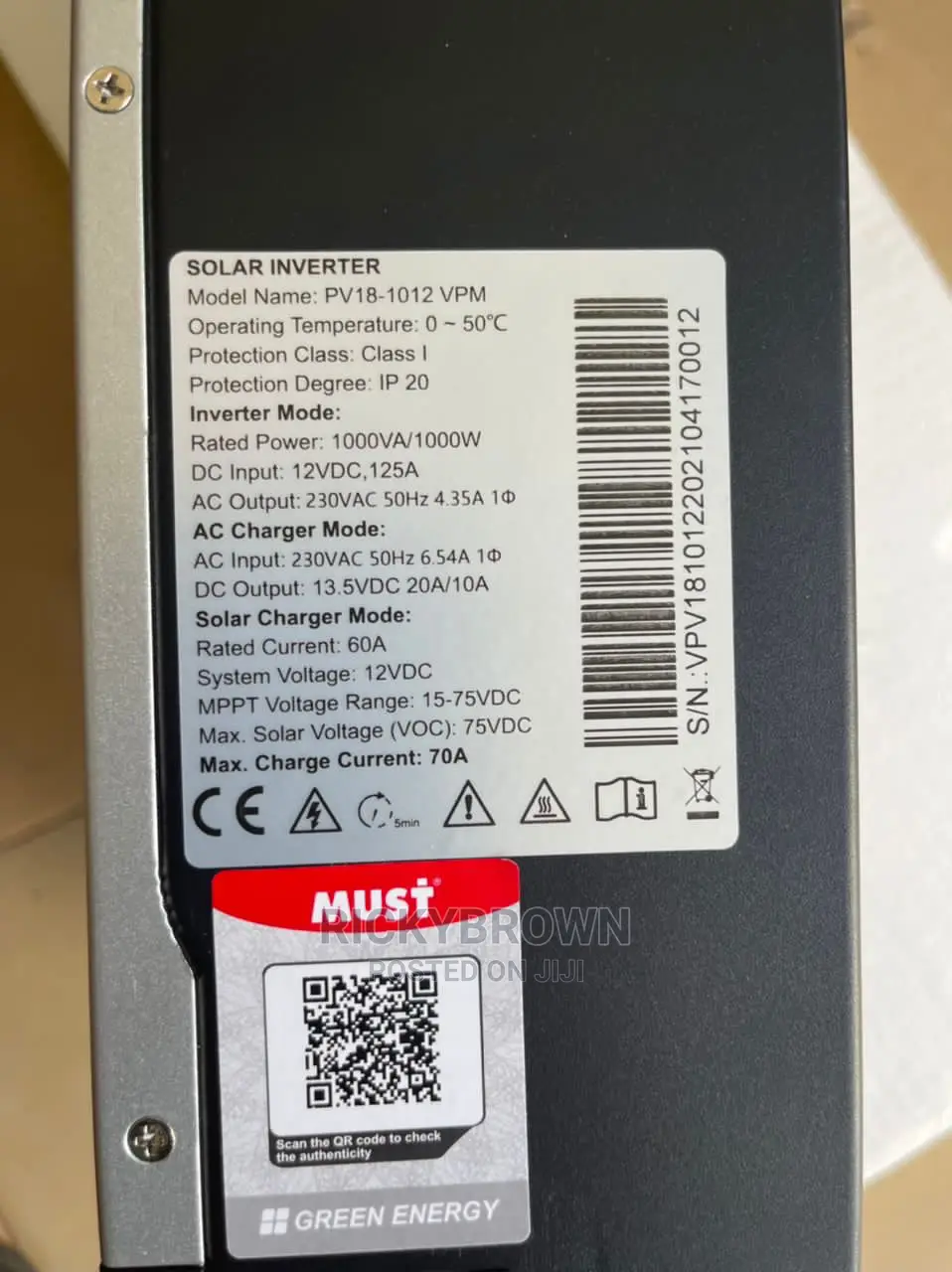

Model name: pv18-1012 vpm
operating temperature: 0 - 50°c
protection class: class i
protection degree: ip 20
inverter mode:
rated power: 1000va/1000w
dc input: 12vdc, 125a
ac output: 230vac 50hz 4.35a 10
ac charger mode:
ac input: 230vac 50hz 6.54a 1¢
dc output: 13.5vdc 20a/10a
solar charger mode:
rated current: 60a
system voltage: 12vdc
mppt voltage range: 15-75vdc
max. solar voltage (voc): 75vdc
max. charge current: 70a
