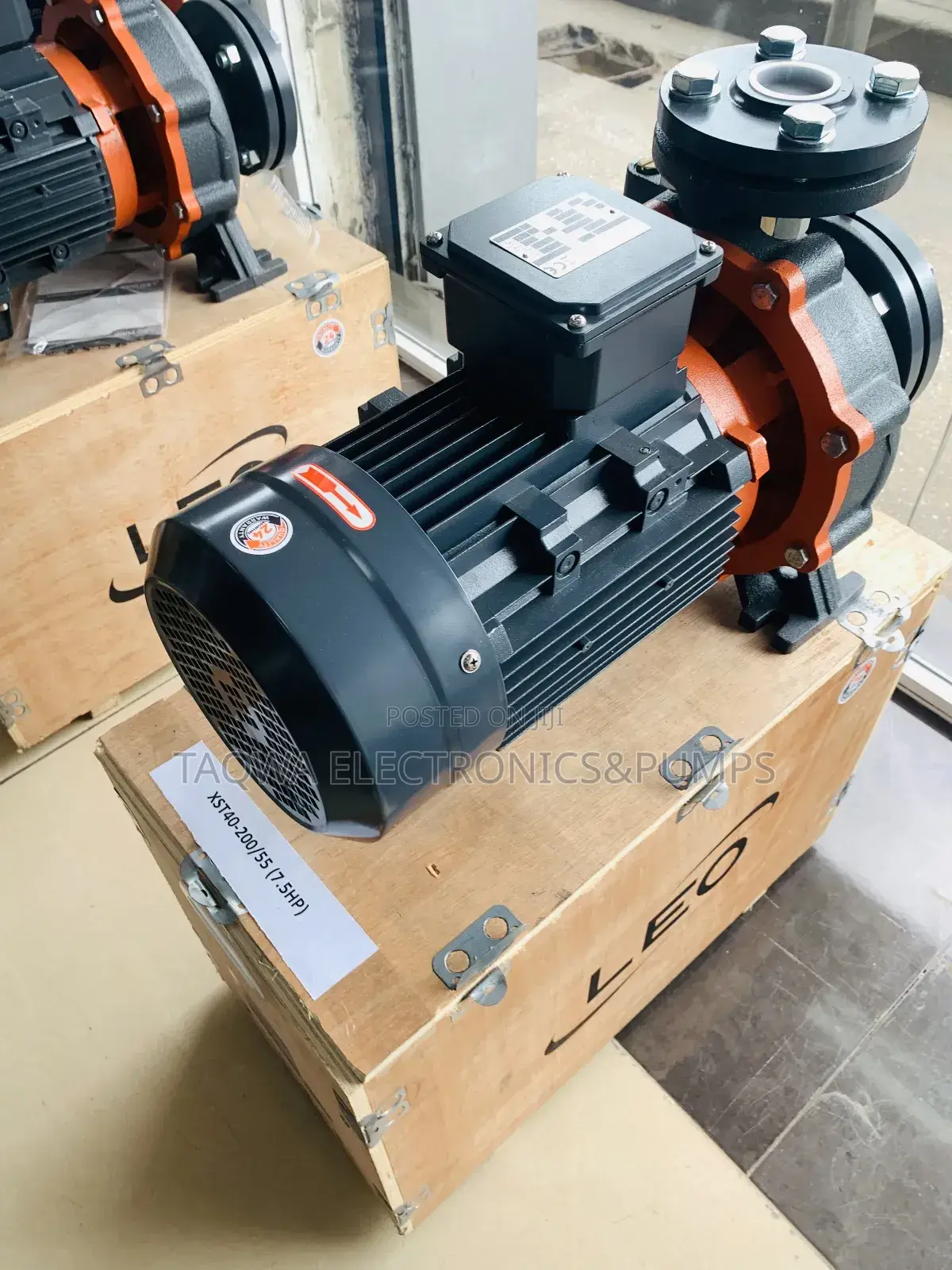

. *XST40‐200/55* pump:
- *Power:* 5.5 kW (7.5 HP), 380 V, 50 Hz 1 2
- *Max head:* 42 m (about 4.2 bar) 1 2
- *Max flow:* 700 L/min ≈ 42 m3/h 1 2
- *Impeller:* AISI 304 stainless steel 1 2
- *Body:* Cast iron with anti‐rust treatment 2
- *Inlet / outlet:* DN 65 (inlet) / DN 50 (outlet) 1
- *Mechanical seal:* DIN 24960, lubricated by the pumped liquid 2
- *Max temperature:* 85 °C 1 2
- *Max operating pressure:* 12 bar (PN12) 2
- *Motor protection:* IP55, insulation class F, built‐in thermal protector 2
