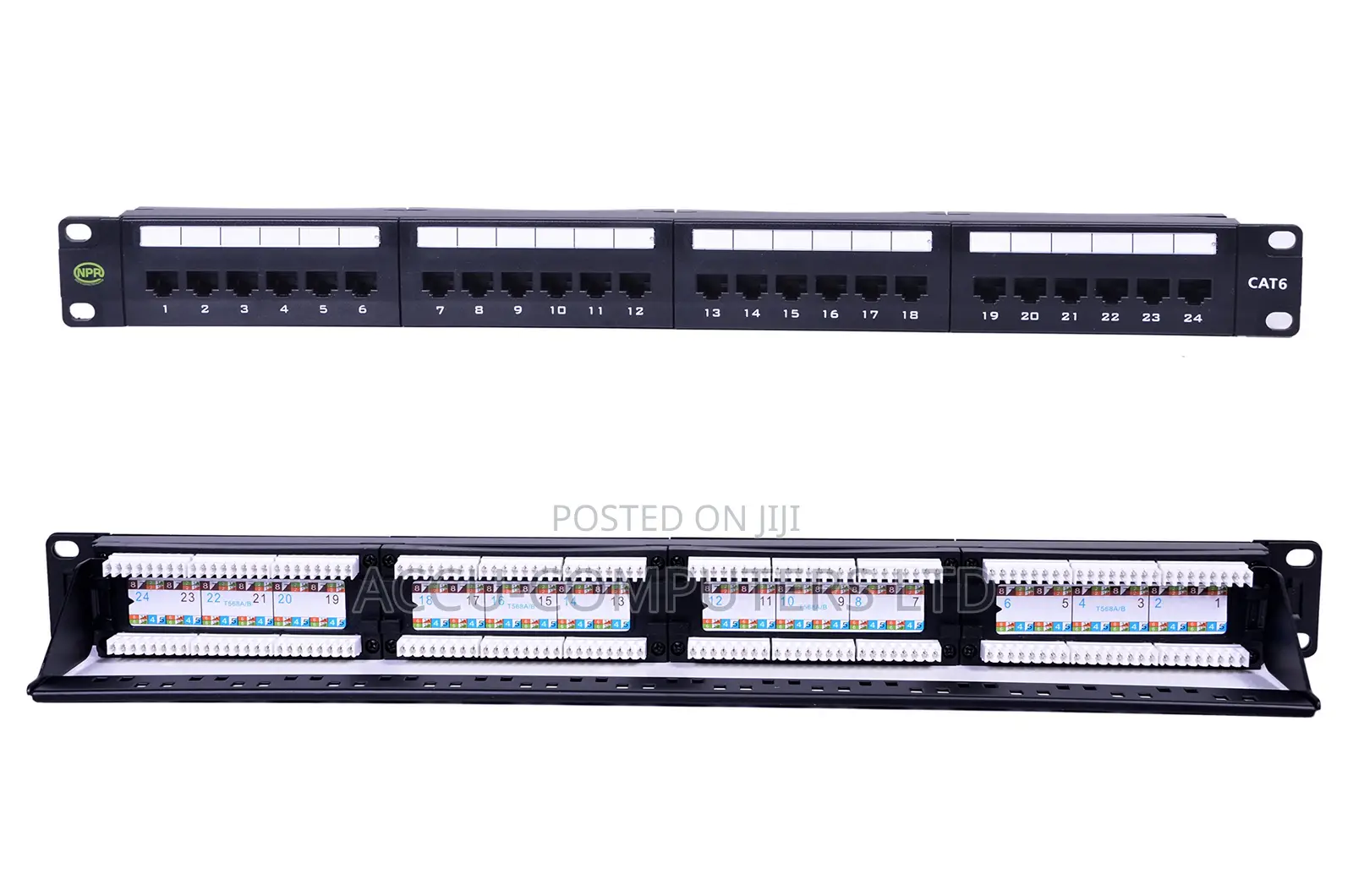

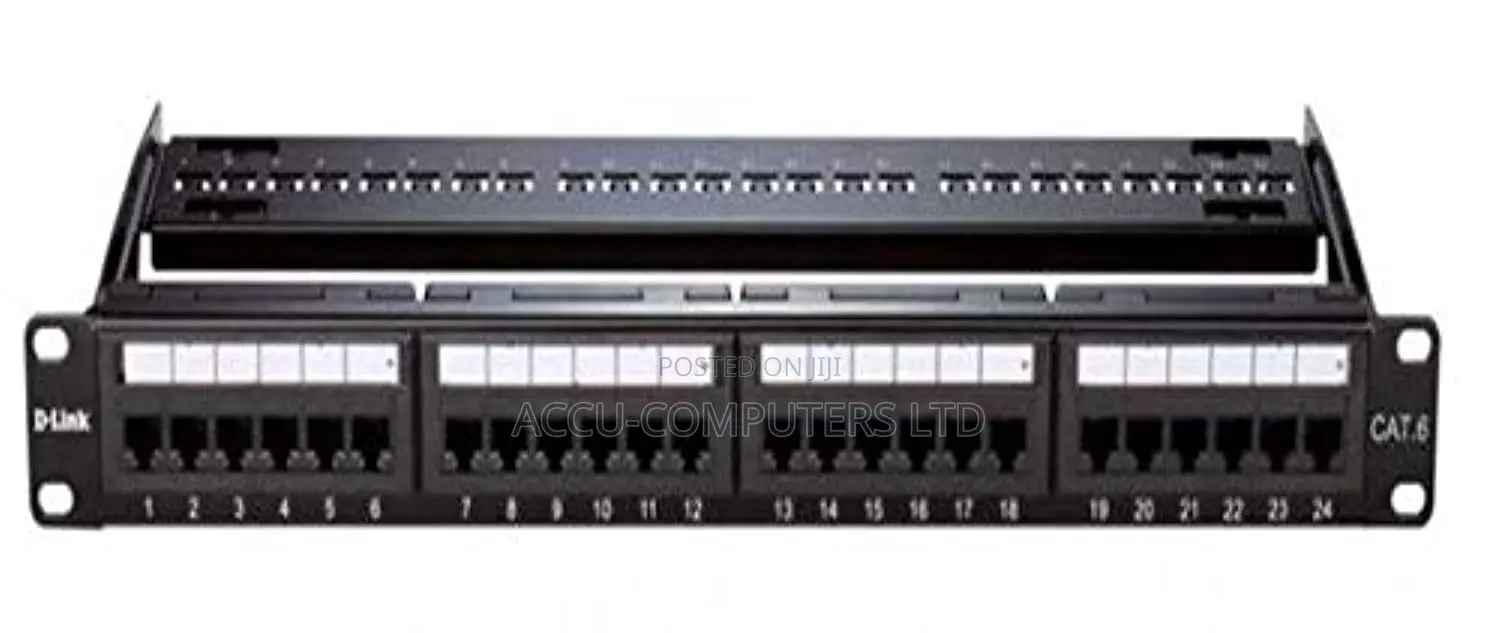

D-Link 24 Port 8way Cat 6 Patch Panel
Patch panel
Type
D-Link
Brand
NPP-C61BLK241
Model
5200 Mbps & Above
Max LAN Speed
Brand New
Condition
Features
hand screw, easy to open cover
eight port rj45 modules applied
jack shutters to keep dust away
friendly installation, right angle between
idcs and rj45 keystone jacks
id stripes for identifying port allocations
idc compatible with 110&krone tool
mounts in standard 19” racks
rohs/ul certified
performance
t568a & t568b wiring scheme on pcb
insertion force: 30n max. (iec 60603-7-5)
retention strength: 7.7 kg between jack and plug
operating temperature: -10c to 60c
( iso/iec 11801, ansi/tia/eia 568b.2)
life ( mating cycles):
a. jack: 750 cycles min (iso/iec 11801, iec 60603-7-5)
b. idc: suitable for 22-26 awg stranded and solid wire,
compatible with both 110& krone punch down tools
the cat6 transmission performance is in compliance
with the ansi/tia/eia 568b.2 -1 standard
