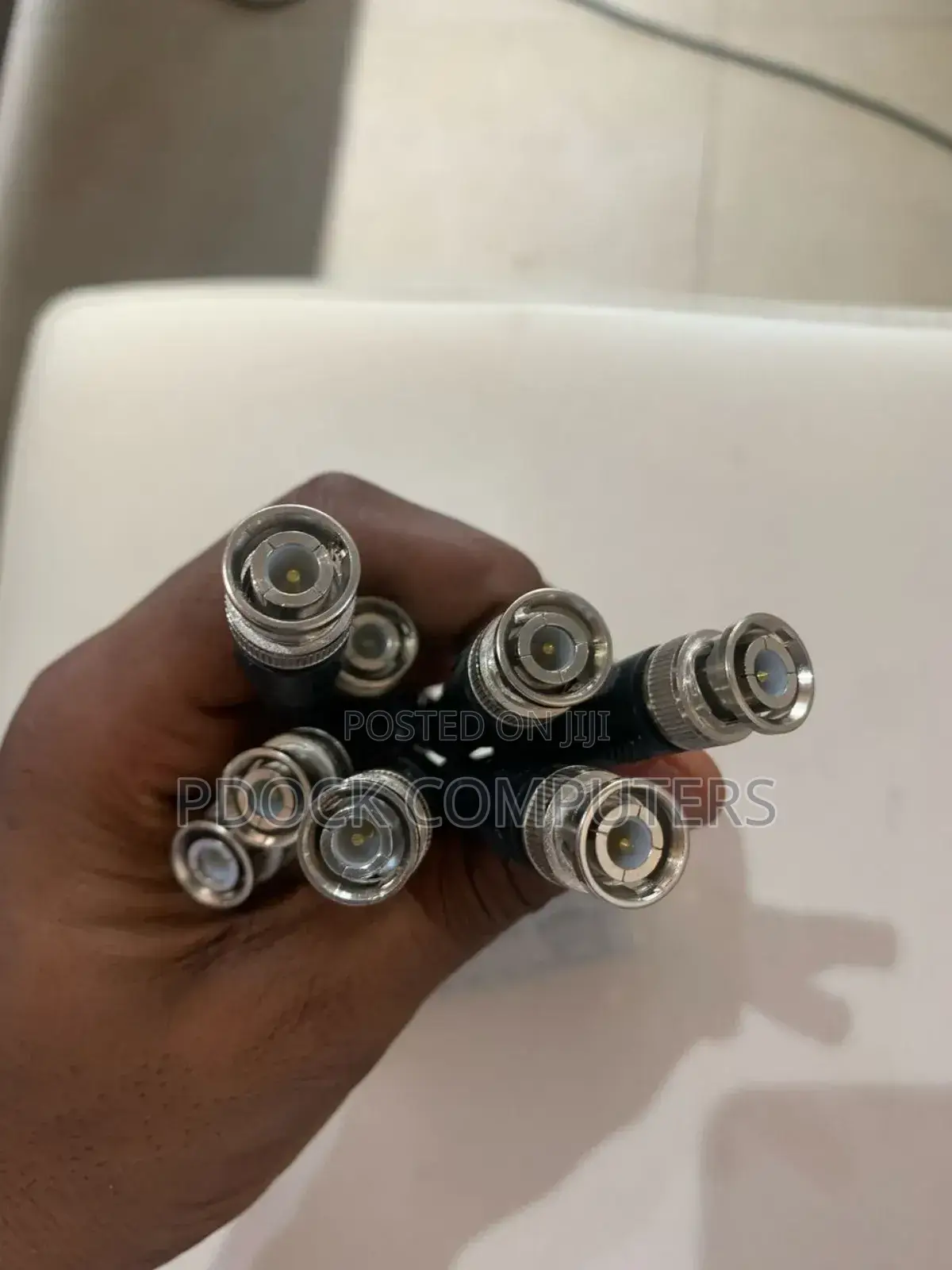

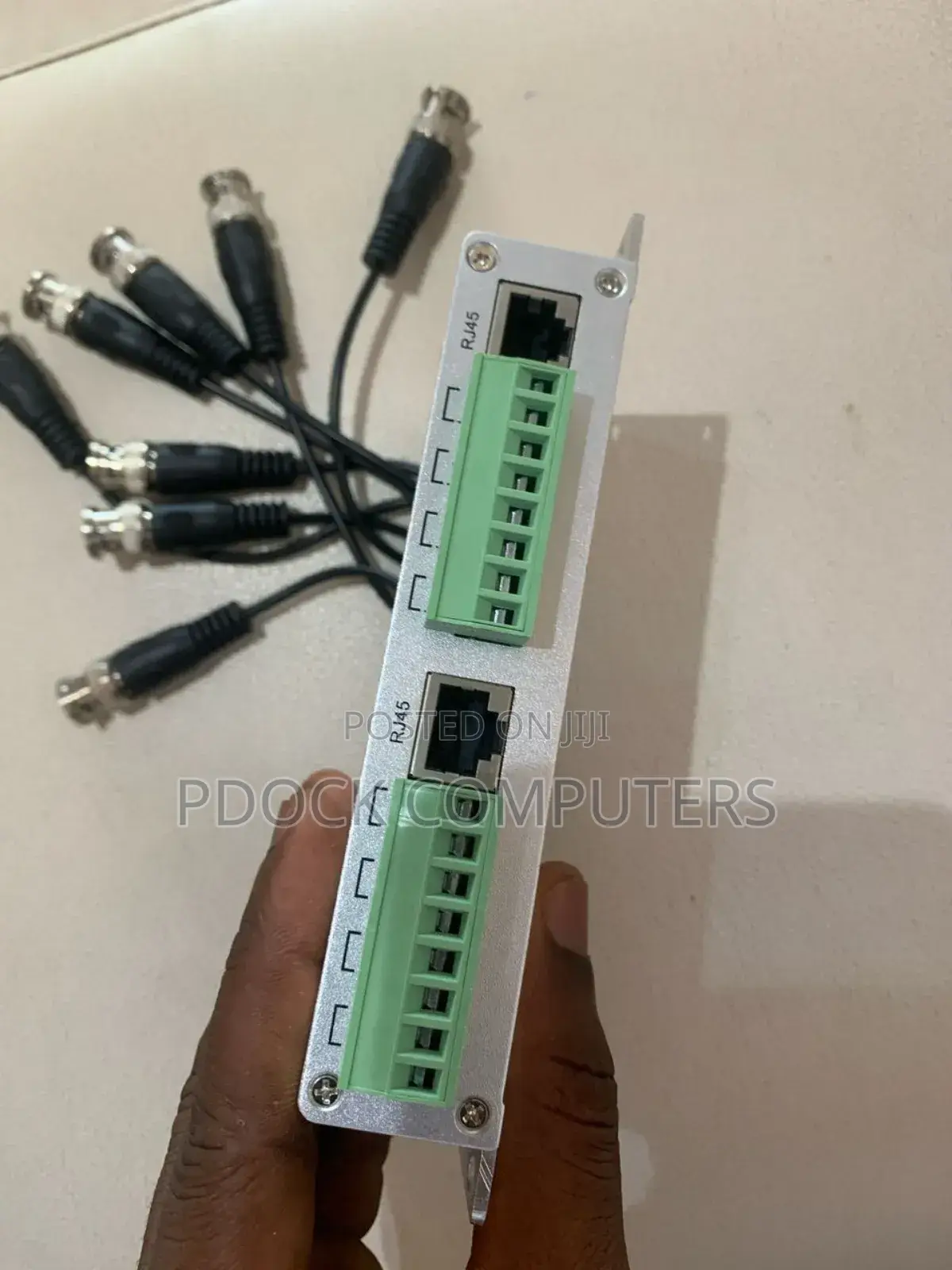

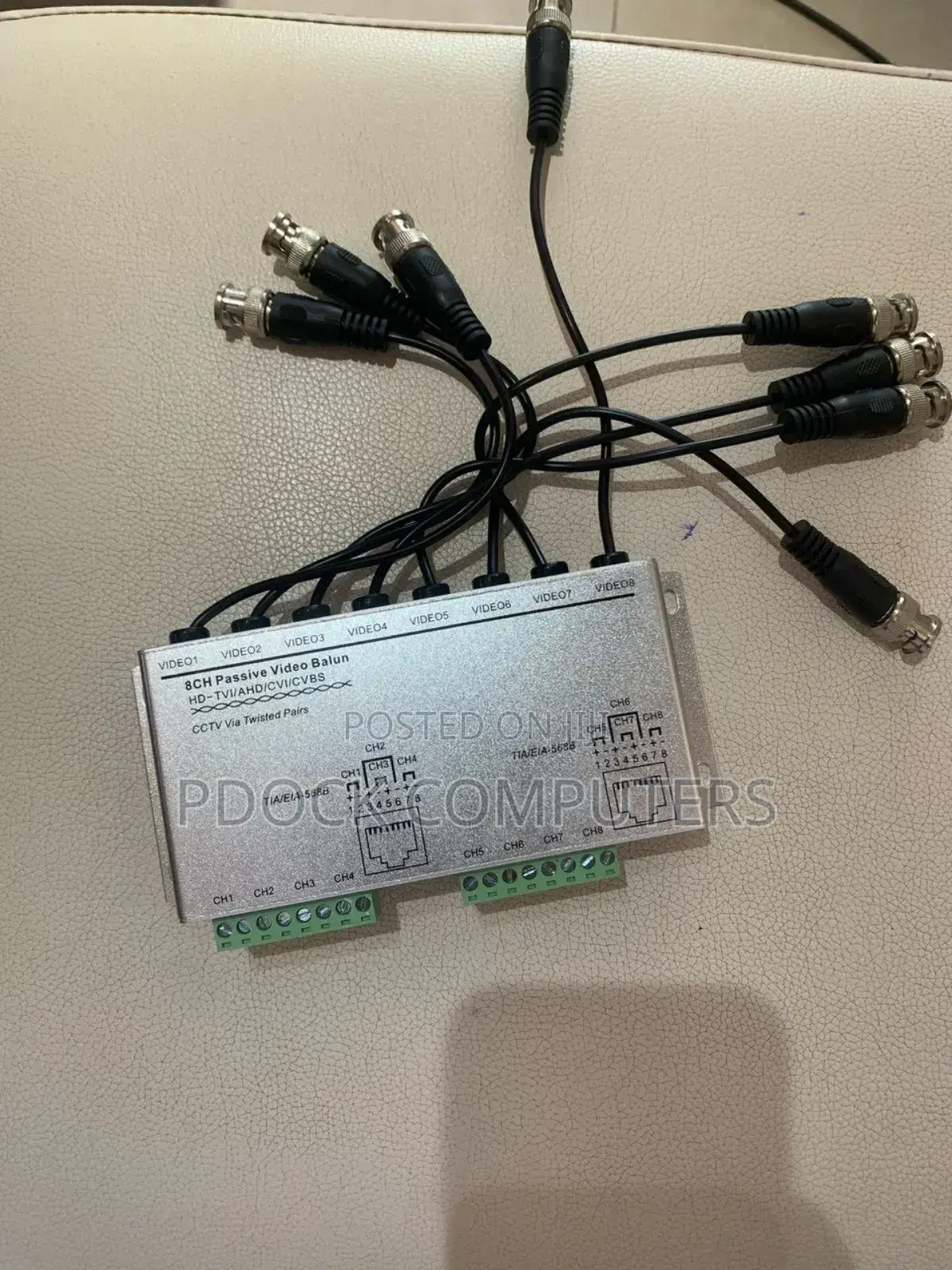

8-Channel Utp Rj45 Passive Video Balun Transceiver
Passive video balun
Type
Other
Brand
Wired
Connectivity
Brand New
Condition
Store address
Greater Accra • Adenta
ADENTA NEWSITE NEAR Rotana Guest House
Closed
• Mon - Sat, 07:00-08:00
Compatible with all hd-cvi,hd-tvi,hd-ahd
to send hd-cvi,hd-tvi,hd-ahd camera 720p up to 300 meters over utp cable.
built-in transient suppression protection
up to 450m for 720p cvi cameras
up to 250m for 1080p cvi cameras
up to 250m for 720p/1080p tvi cameras
up to 320m for 720p ahd cameras
ntsc,pal,and secam video formats
no power required
transmission signal: 8 channel
transmission distance: 300m
coaxial video connector: bnc-m
twisted-pair video connector: screw interface
compatible format: pal,ntsc,secam
signal transmission band: 0-6mhz(-3db)
anti-interference: >60db
coaxial video interface protection: 4kv(common-mode)per:iec61000-4-5
twisted-pair video transmission interface protection: 2kv(different-mode), 4kv(common-mode)per:iec61000-4-5
