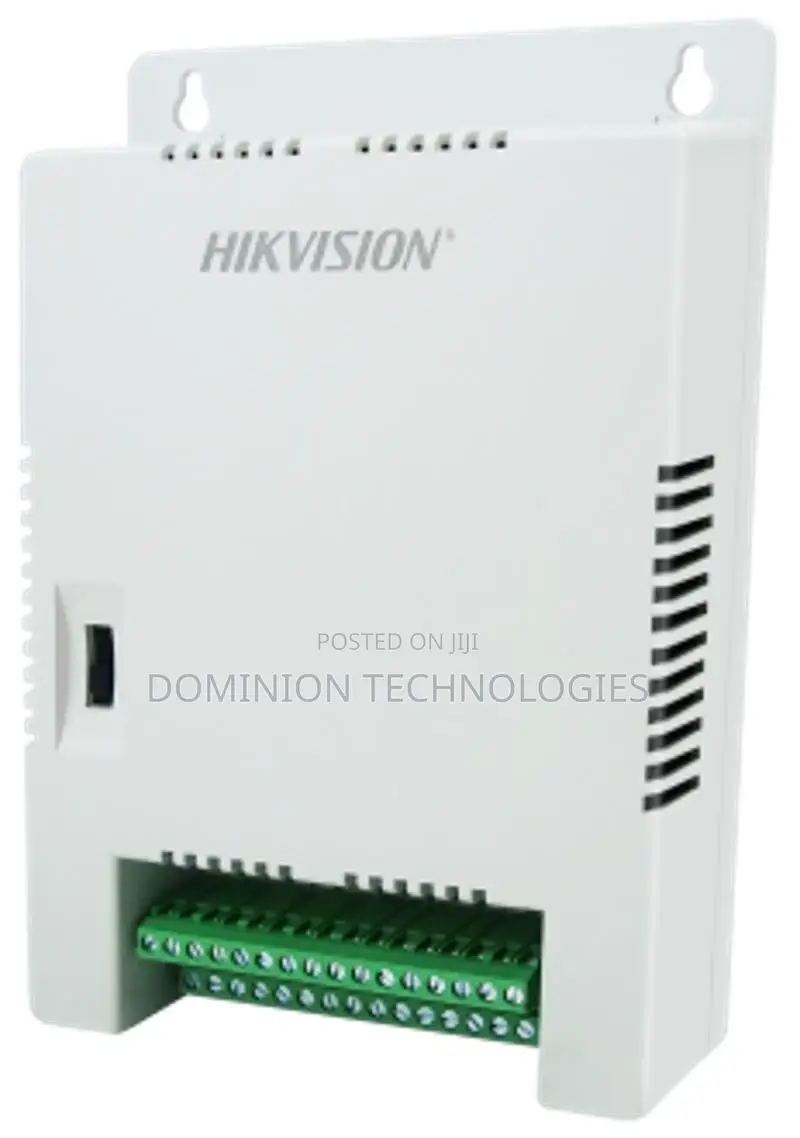

Hikvision Ds-2fa1208-C16-16-Ch Power Adapter
Other
Type
Hikvision
Brand
Wired
Connectivity
Brand New
Condition
Store address
Greater Accra • Achimota
achimota accra ghana
Closed
• Mon - Sat, 08:00-17:00
Ds-2fa1208-c16(eur)
multi-channel smps
96 w, 12 vdc/1 a max per channel, max total current is 8 a
over current/short circuit/over voltage protection
good emc performance
compact size; applicable to cameras
150 to 285 vac wide voltage input
parameters
appearance
white
dimension
185 mm × 130.6 mm × 35 mm (7.28" × 5.14" × 1.38")
led indicator
green
input
150 to 285 vac, 47 hz to 63 hz
output
12 vdc/1 a per channel
ripple & noise 150 mvp-p
0.2 vp-p (200 mv)
ac input connector
c8
dc output connector
dc plug: grid terminal
storage conditions
-40°c to 80°c (-40°f to 176°f), humidity: 5% to 95% (non-condensing)
