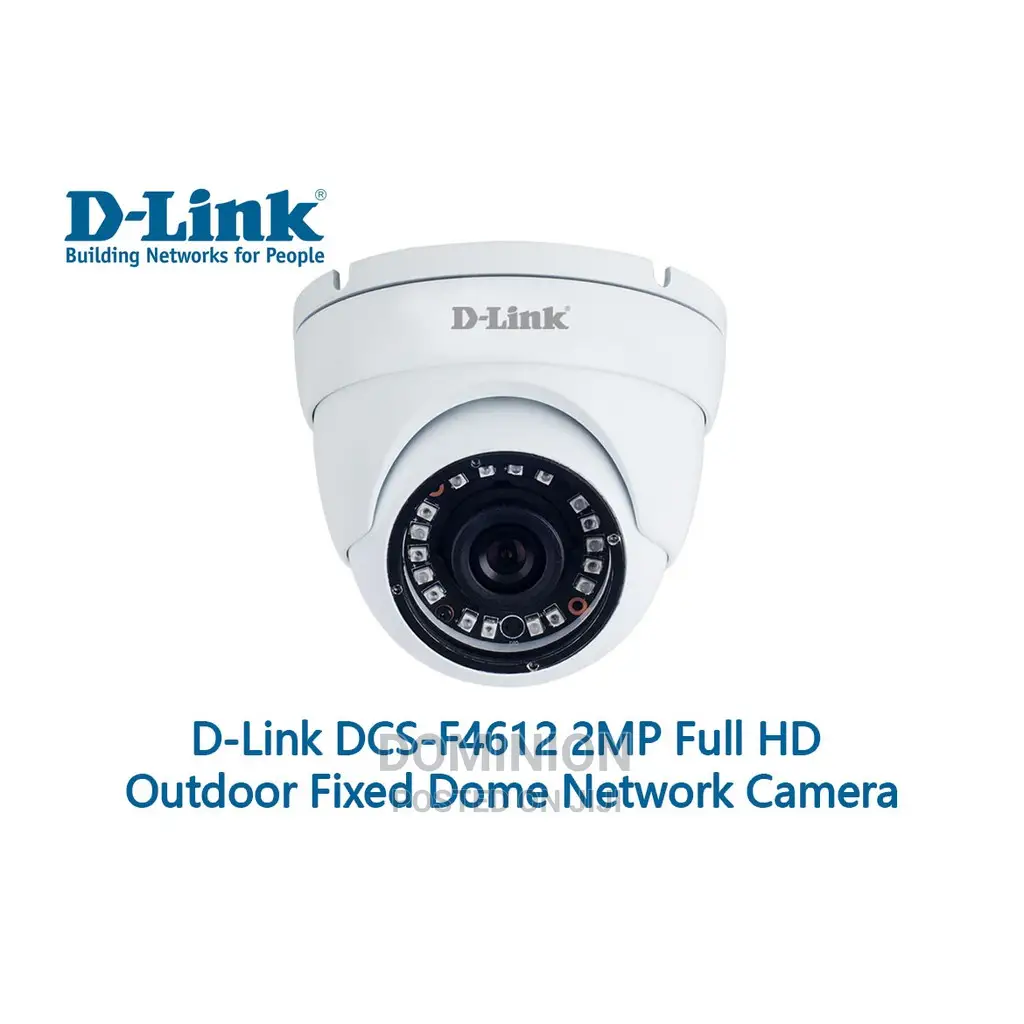

2MP Full HD camera
1920 x 1080
IR Range up to 15 m
Outdoor application – IP66
Corridor mode for narrow passages
Smart defog
Region of Interest
1 /2.7" 2 Megapixel Progressive Scan CMOS sensor
• Focal Length: 3.6mm
• 15 meter IR illumination distance
• Aperture : F2.0
• Built-in Infrared-Cut Removable (ICR) Filter module, Smart IR support
• Minimum illumination:
• Angle of view:
(H) 75
(V) 45
• 0.2 Lux Color mode
• Shutter Speed: Auto 1/1s ~ 1/10,000s
• 0.01 Lux Black andWhite mode
• Digital zoom : 10x
• 0 Lux Black andWhite mode with IR LED on
• Minimum object distance : 0.3m
Camera Housing
• IP66 compliant weatherproof housing
• Included sunshield
Image Features
• Configurable image size, quality, frame rate, VBR/CBR (500kbps ~ 12 Mbps)
• Configurable privacy mask zones : Total zones 4
• Time stamp and text overlays
• Customized text overlay
• Configurable Exposure, Brightness, Saturation, Contrast, Sharpness, White Balance, Rotate mode, Corridor mode
Video Compression
•
