Key Specifications
Rated Power: 11,000W / 11kVA
System Voltage: 48V
Max PV Input (Solar Power): 8,000W to 12,000W
MPPT Charger Current: 150A
PV Voltage Range: 120VDC to 500VDC (MPPT range up to ~450V)
Battery Operation: Works with or without a battery
Parallel Capability: Can be paralleled up to 6 units for larger system capacity
Output Waveform: Pure Sine Wave
Transfer/Feed-in: Real hybrid capability with grid feed-in support
Display & Monitoring: Touchable LCD screen with optional Wi-Fi mobile monitoring

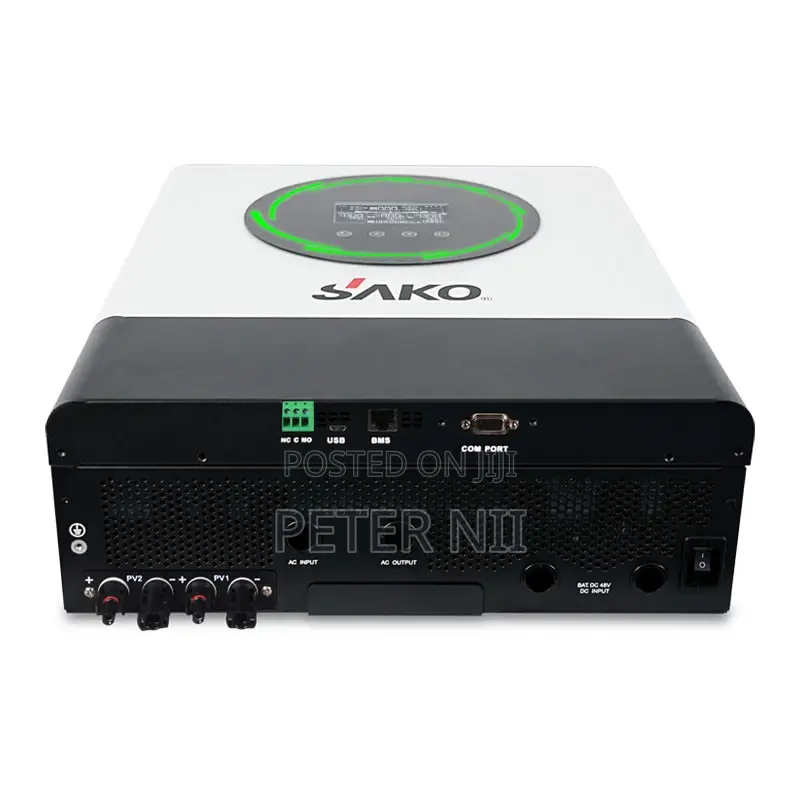

Communication Ports: USB, RS232, RS485, Dry-Contact, and BMS
