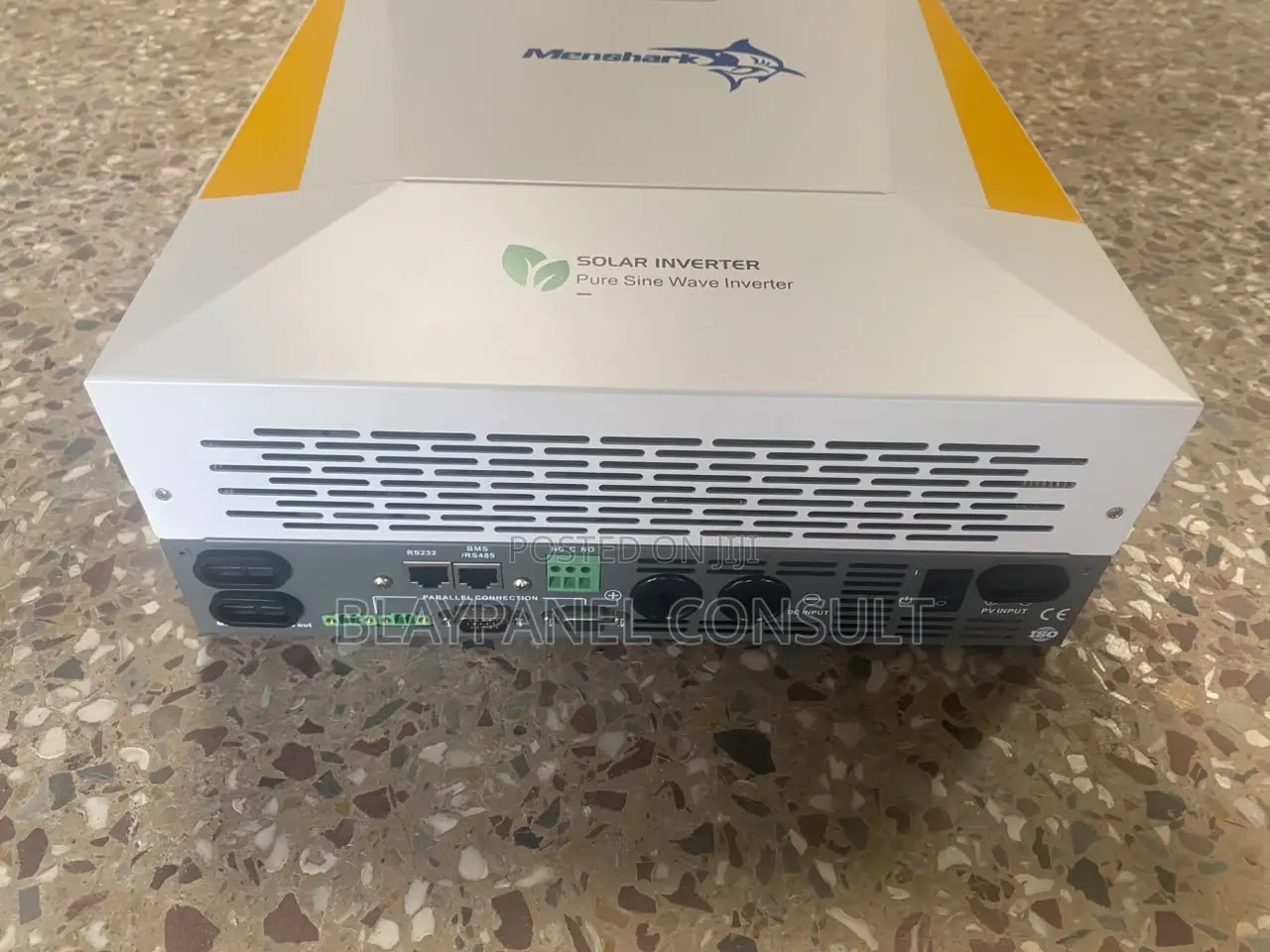

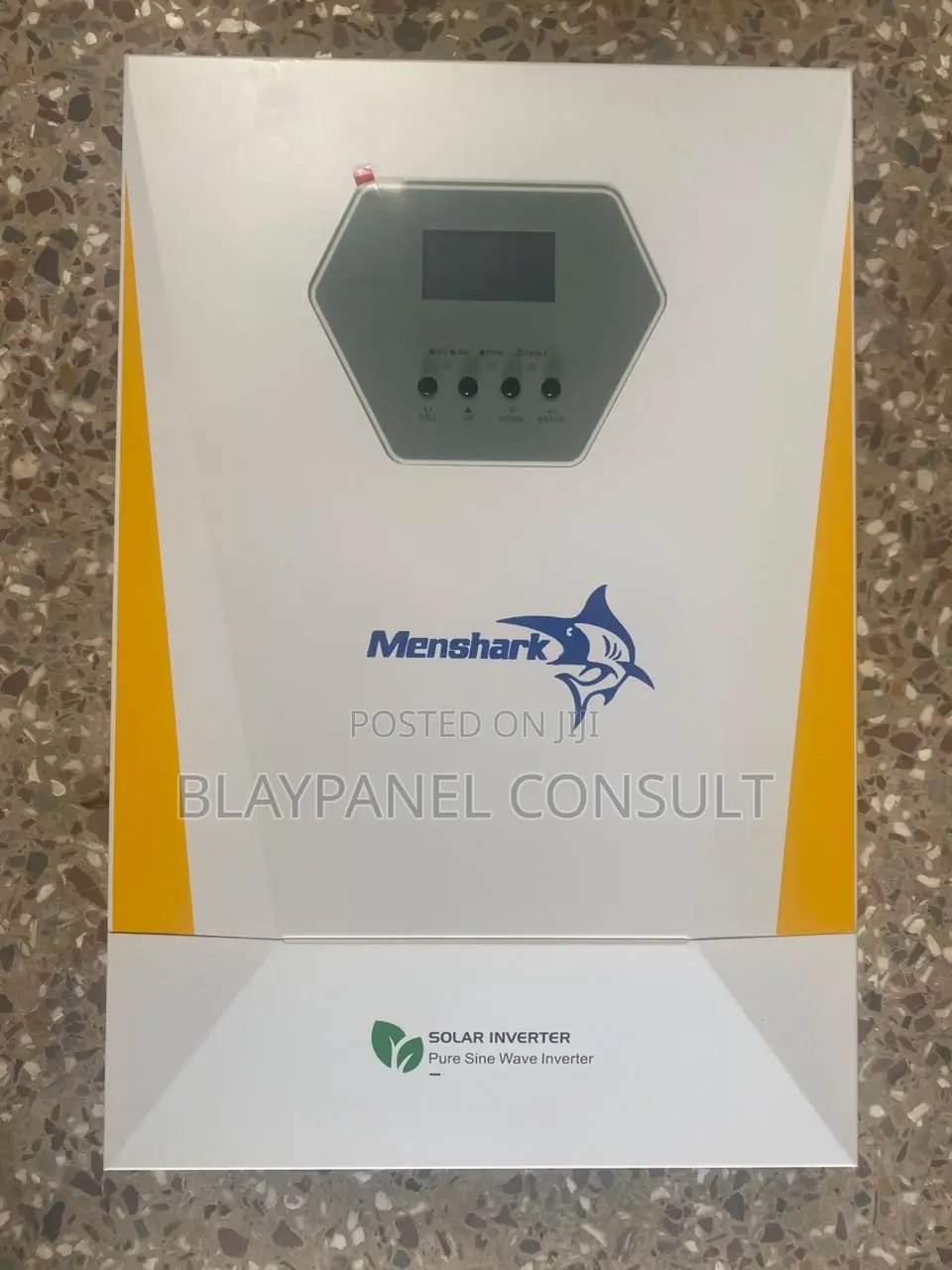

6kw Menshark Hybrid Solar Inverter

+1

6

Menshark

Brand

Solar Inverters

Type

Hybrid Inverter

Inverter Type

6200kVA

Inverter Power

120amps

Inverter Rated Current

48 V

Inverter Voltage

Brand New

Condition

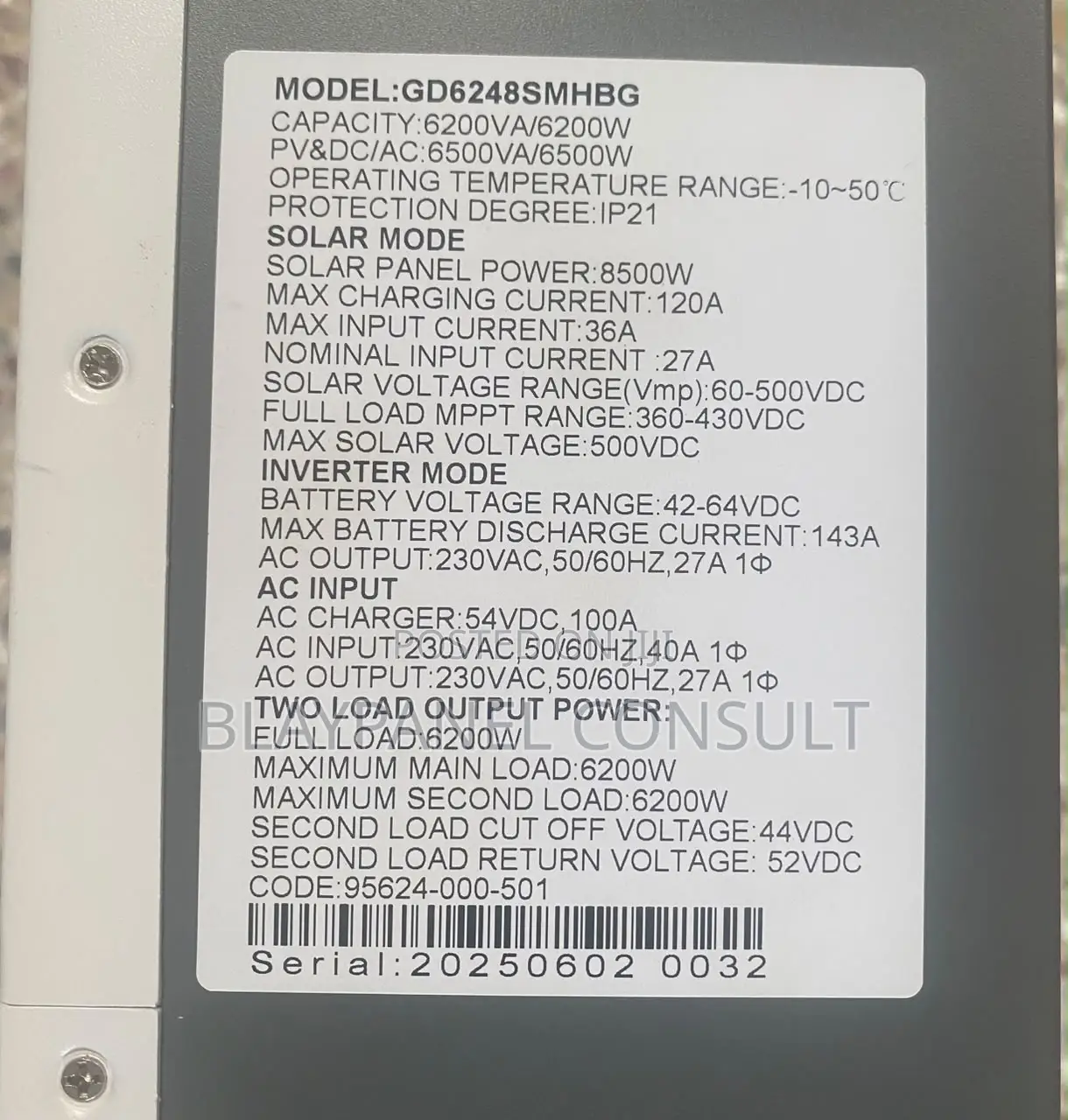

Model:gd6248smhbg capacity:6200va/6200w pv&dc/ac:6500va/6500w operating temperature range:-10~50°c protection degree:ip21 solar mode solar panel power: 8500w max charging current: 120a max input current:36a nominal input current :27a solar voltage range(vmp): 60-500vdc full load mppt range:360-430vdc max solar voltage:500vdc inverter mode battery voltage range:42-64vdc max battery discharge current: 143a ac output:230vac, 50/60hz,27 a 1ф ac input ac charger: 54vdc, 100a ac input:230vac, 50/60hz,40a 1ф ac output:230vac, 50/60hz,27 a 1ф two load output power: full load:6200w maximum main load:6200w maximum second load:6200w second load cut off voltage:44vdc second load return voltage: 52vdc code:95624-000-501 serial: 0032
