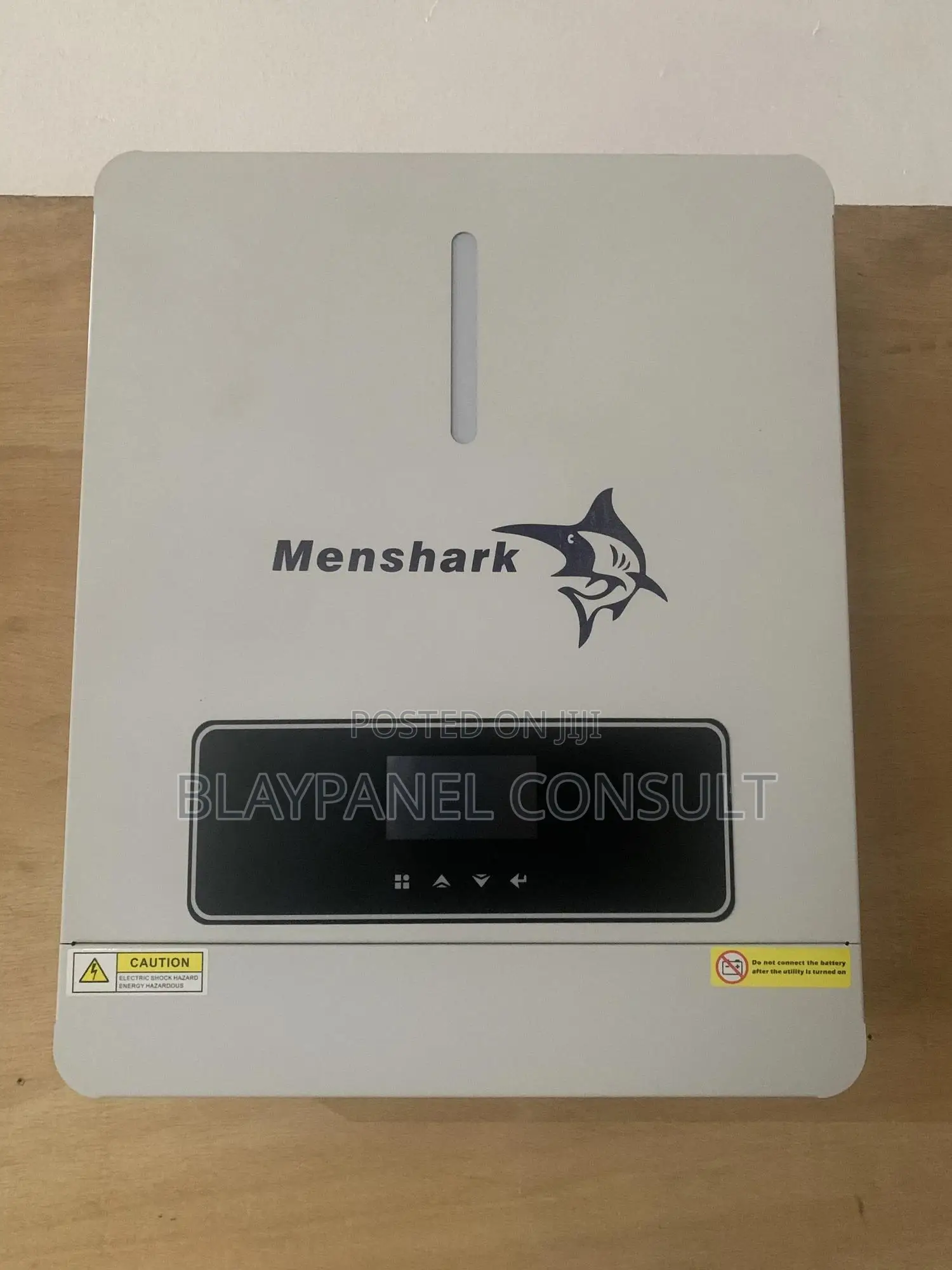

6.2kw Hybrid Solar Inverter

+1

11

Srne

Brand

Solar Inverters

Type

6200kVA

Inverter Power

120amps

Inverter Rated Current

48 V

Inverter Voltage

Brand New

Condition

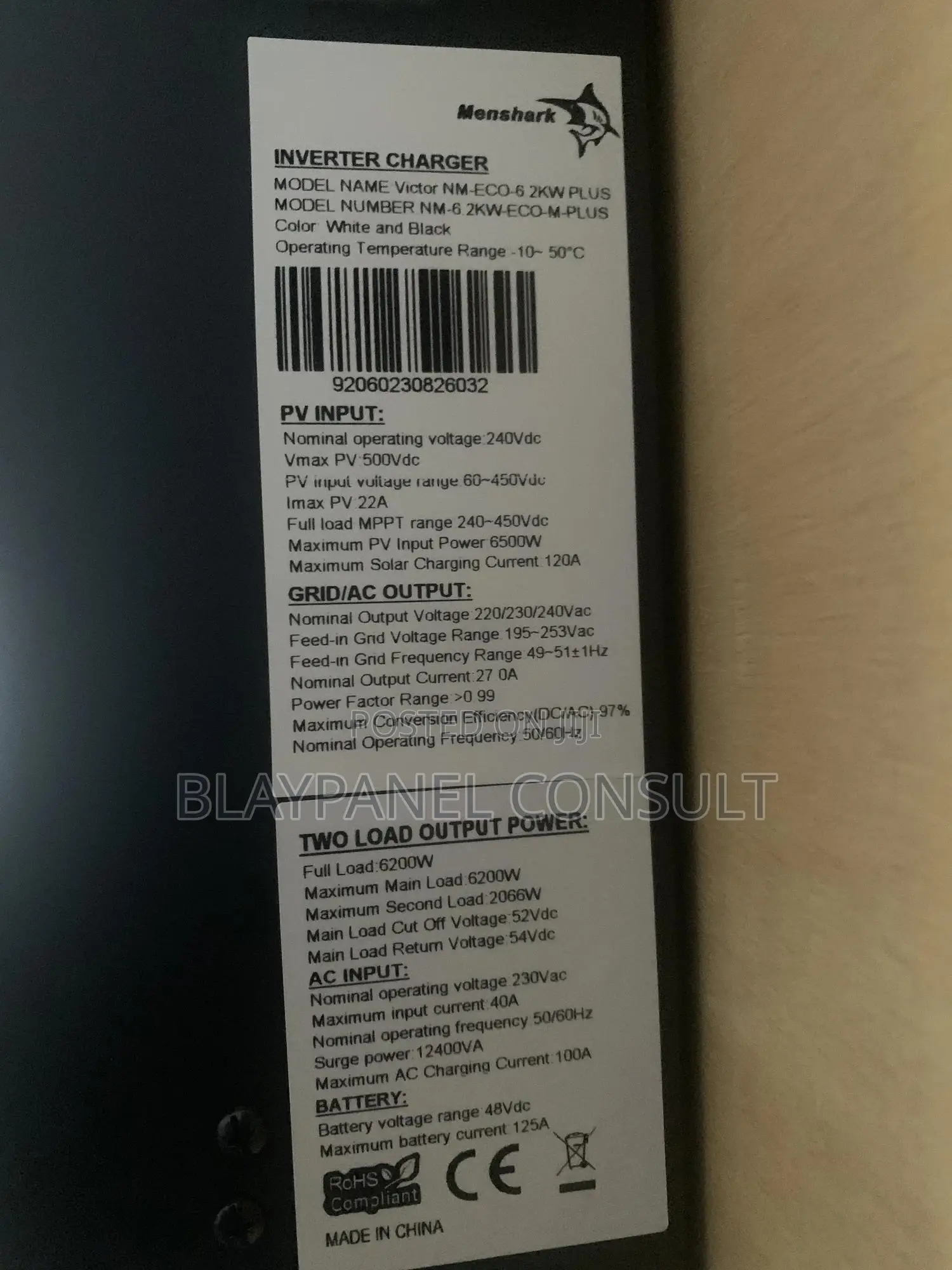

Pv input: nominal operating voltage: 240/dc vmax pv:500vdc pv input vuitage ranye 60-450vuc imax pv.22a full load mppt range 240-450vdc maximum pv input power 6500w maximum solar charging current 120a gridiac output: nominal output voltage: vac feed-in grid voltage range 195~253vac feed-in grid frequency range 49-51$1hz nominal output current: 27 0a power factor range: >0.99 maximum conversion efficiency(dc/ac): 97% nominal operating frequency 50/60hz two load output power: full load:6200w maximum main load 6200w maximum second load: 2066w main load cut off voltage: 52vdc main load return voltage 54vdc ac input: nominal operating voltage 230vac maximum input current: 40a nominal operating frequency 50/60hz surge power: 12400va maximum ac charging current: 100a battery voltage 48vdc
