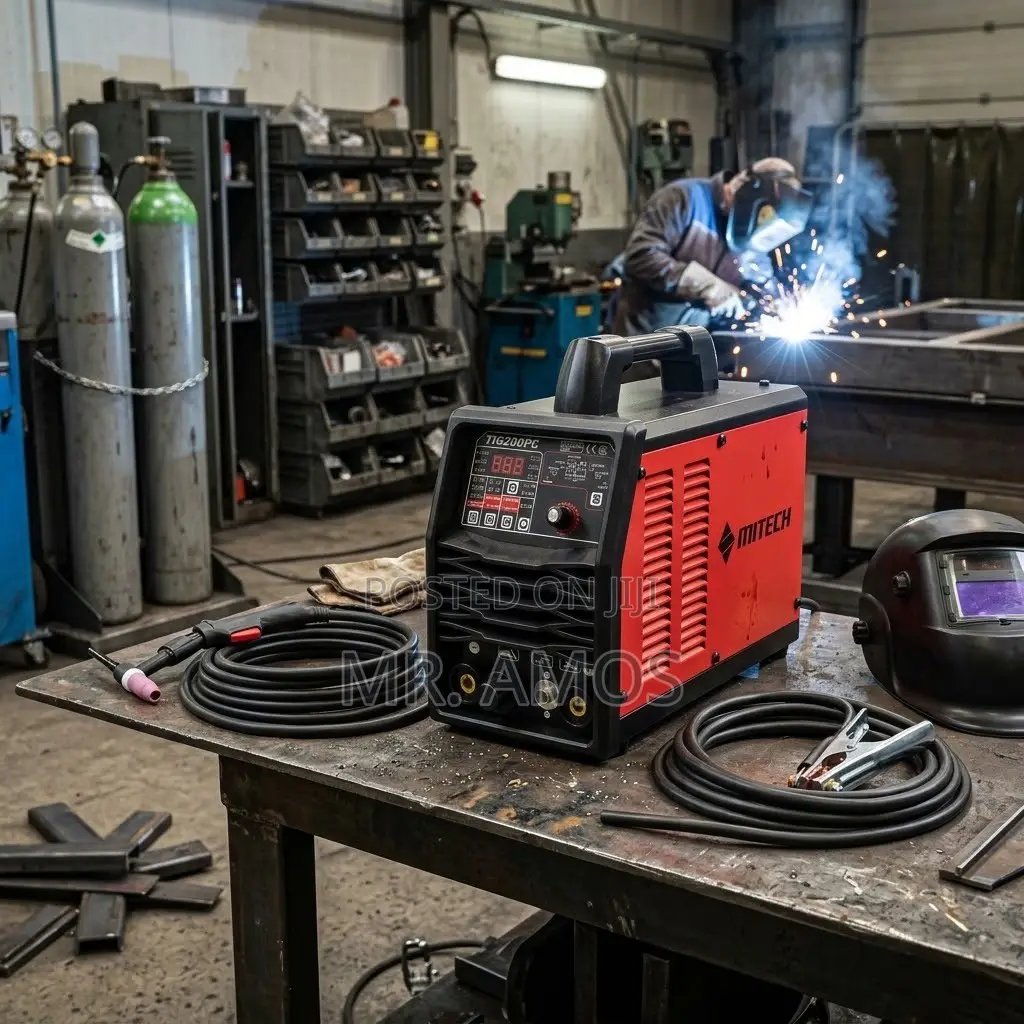

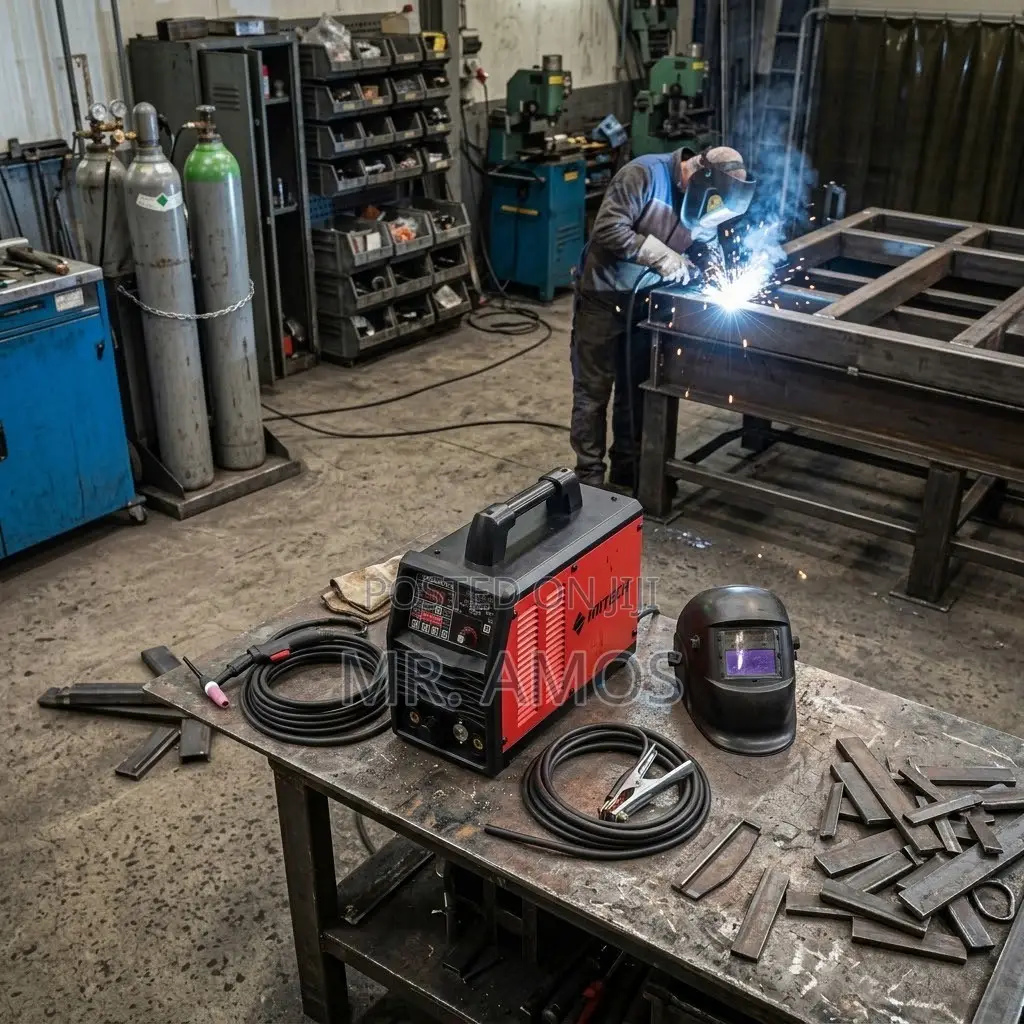

200A Mitech TIG/MMA Pulse Welding Machine
Store address
Greater Accra • Accra Metropolitan
Accra kantamanto
Closed now
• Mon - Sat, 07:00-17:00
Power specifications
input voltage: 240 v, 1-phase, 50/60 hz
max input current: i1eff: 13.2 a / i1max: 19 a
generator input requirement: 4.6 kva
no-load voltage: 56 v
efficiency / duty cycle: 60% at 200 a (tig) / 60% at 180 a (mma)
welding performance & output
tig output current range: 10 a–200 a
mma (stick) output current range: 15 a–180 a
max material thickness capacity: 6 mm–8 mm
arc start: high-frequency (hf) ignition
pulse control parameters
pre-gas time: 0–2 s
post-gas flow time: 2 s (or adjustable depending on control board)
down slope time: 0–5 s
pulse frequency: 1 hz–70 hz
pulse width range: 10%–90%
peak / base current: 10 a–200 a
