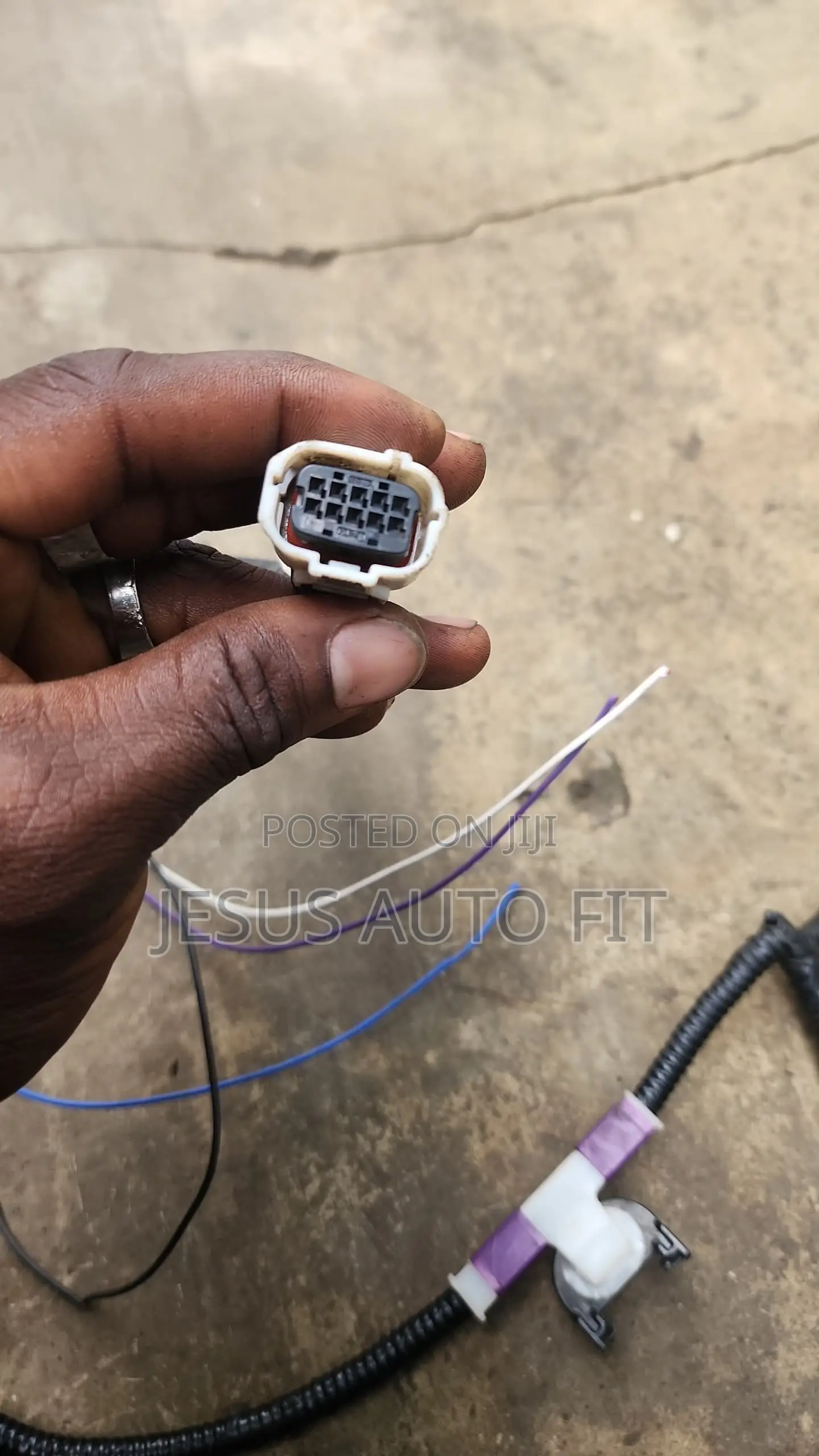

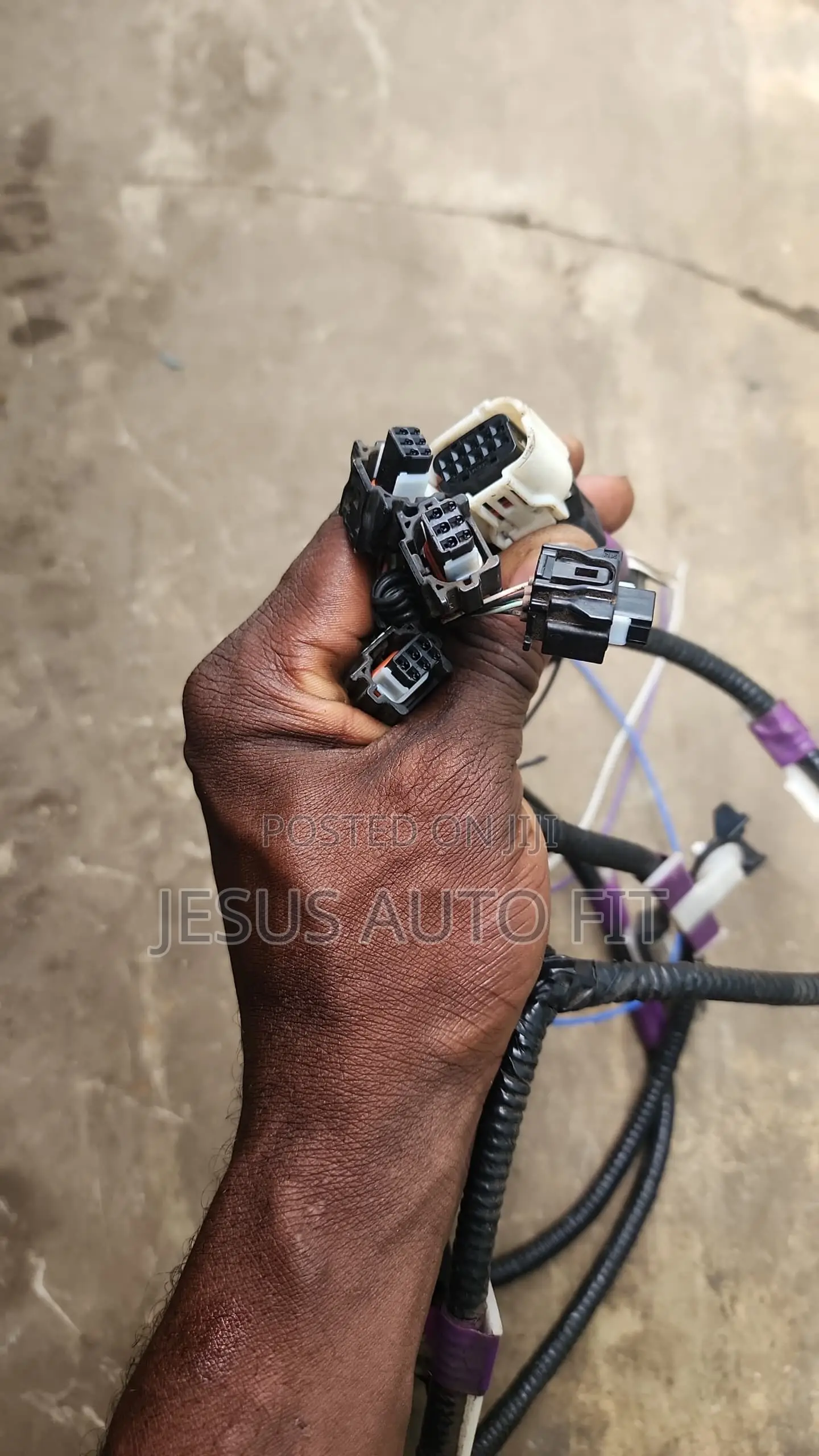

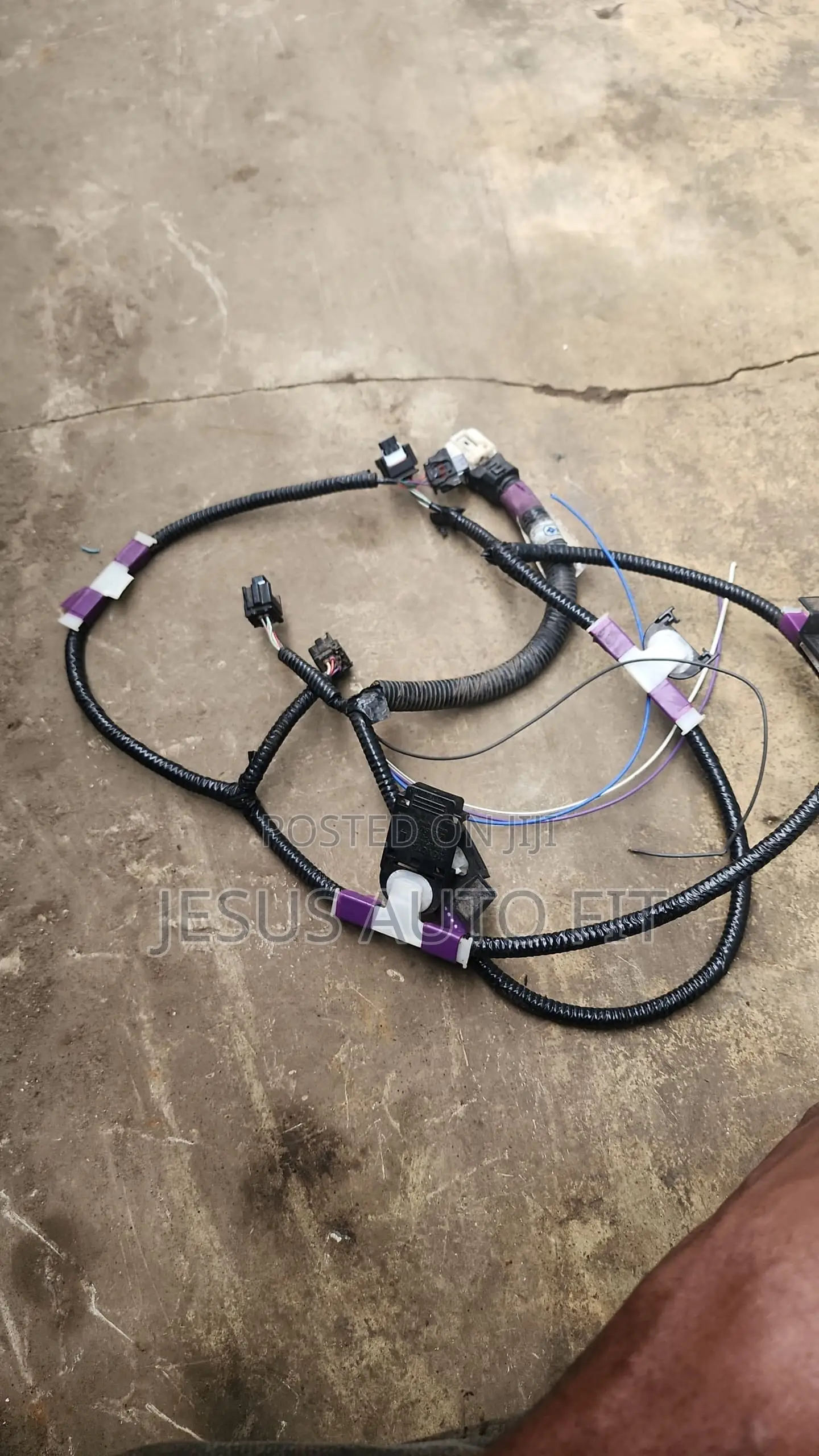

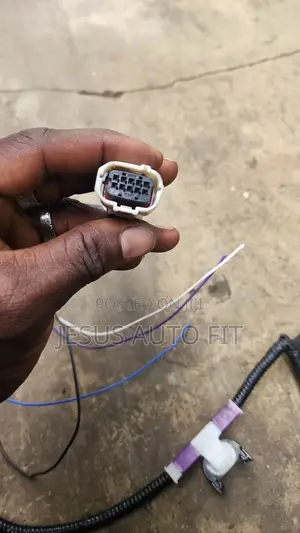

Lexus Highlander 2021-2023 Back Bumper Parking Aid System Wiring

+1

Used

Condition

Lexus

Make

RX 350

Model

Brakes, Suspension & Steering

Type

Parking Brakes, ABS & Other Components

Subtype

Delivery

Across country

1 day

GH₵ 50 - 150

Store address

Greater Accra • Achimota

1J143 LOTA ST G1-0733-1372

We located at Ofankor barrier,Achimota road.

Closed now

• Mon - Sun, 08:30-19:00

The 2021–2023 Toyota Highlander and sharing-platform Lexus models utilize the Toyota New Global Architecture (TNGA-K) platform, sharing identical logic and architectural layouts for the Intelligent Clearance Sonar (ICS) / Parking Assist system. The rear bumper parking aid system is routed through a dedicated, standalone bumper wiring harness that daisy-chains the four ultrasonic bumper sensors before routing power and signal data into the main cabin.System Layout & RoutingSensor Architecture: The rear bumper houses four distinct ultrasonic sensors: Rear Left Corner, Rear Left Center, Rear Right Center, and Rear Right Corner.The Harness: The rear bumper sensors plug directly into a sub-harness (such as OEM Part 82182-06570 depending on the specific trim level).
